Installation guide
CU4000 Door Controller

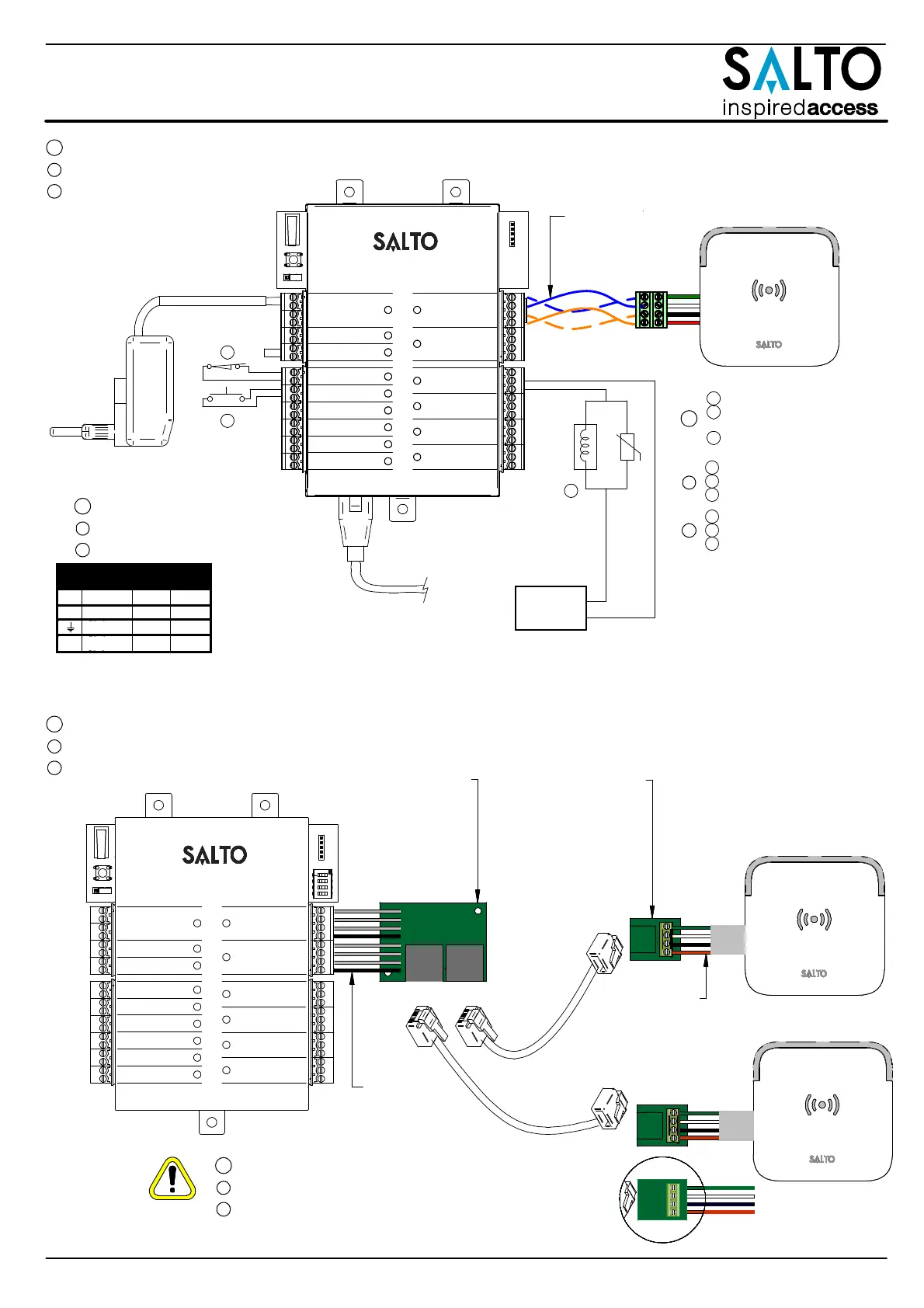

Installationsbeispiel
Installatievoorbeeld
Installationsexempel
Installationsbeispiel RJ45:
Installatie voorbeeld RJ45:
Installationsexempel RJ45:
READER 1
A
B
TAMPER
IN1
IN2
IN3
IN4
IN5
IN6
READER 2
RL1
RL2
RL3
RL4
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
BUS485
Ethernet
10Base-T
100Base-TX
ON
12V DC Input
+
A
B
-
12V DC Output (1A)
Power Input: 12V DC - 2A (MAX)
GND
GND
+
-
+
-
+
-
+
-
+
-
+
-
+
-
A
B
+
-
Model: CU42E0
V
GND
V
LOAD
Load Power Supply
NC Dörrlägesgivare
NO Uttrycksknapp
Elslutbleck
Türkontakt (Schließer)
Türöffnungstaster
(Schließer)
Türöffner
NC DEURCONTACT
NO schakelaar EXIT
Elektrische sluitplaat
1
2
3
1
2
3
1
2
3
READER 1
A
B
12V DC Input
TAMPER
IN1
IN2
IN3
IN4
IN5
IN6
READER 2
RL1
RL2
RL3
RL4
+
A
B
-
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
BUS485
Model: CU4200
12V DC Output (1A)
ON
Power Input: 12V DC - 2A (MAX)
GND
GND
+
-
+
-
+
-
+
-
+
-
+
-
+
-
A
B
+
-
Optioneel
Facultatief
Valfritt
SP224861
SP224895
Optioneel
Facultatief
Valfritt
Rot
Rood
Röd
Schwarz
Zwart
Svart
2
1
3
READER_2 READER_1
READER_2
READER_1
Gleiches Paar
Hetzelfde paar
Samma par
B
A
-
+
Mindestabstand zwischen Lesern 20in (50 cm)
Minimale afstand tussen de lezers 20in (50 cm)
Minsta avstånd mellan läsare 20in (50 cm)
D
NL
SVE
Grün
Weiß
Schwarz
Rot
B
A
+V
Groen
Wit
Zwart
Rood
Grön
Vit
Svart
Röd
Deu Ned Sve
Verdrahtung
Draadwerk
Ledningar
D
NL
SVE
D
NL
SVE
D
NL
SVE
D
NL
SVE
14/20
Model: CU42E0
Model: CU4200
Model: CU4200
Model: CU4200
SALTO recommends always using an external power supply to operate the load.
