Salus HTRP230 - Terminal Connection

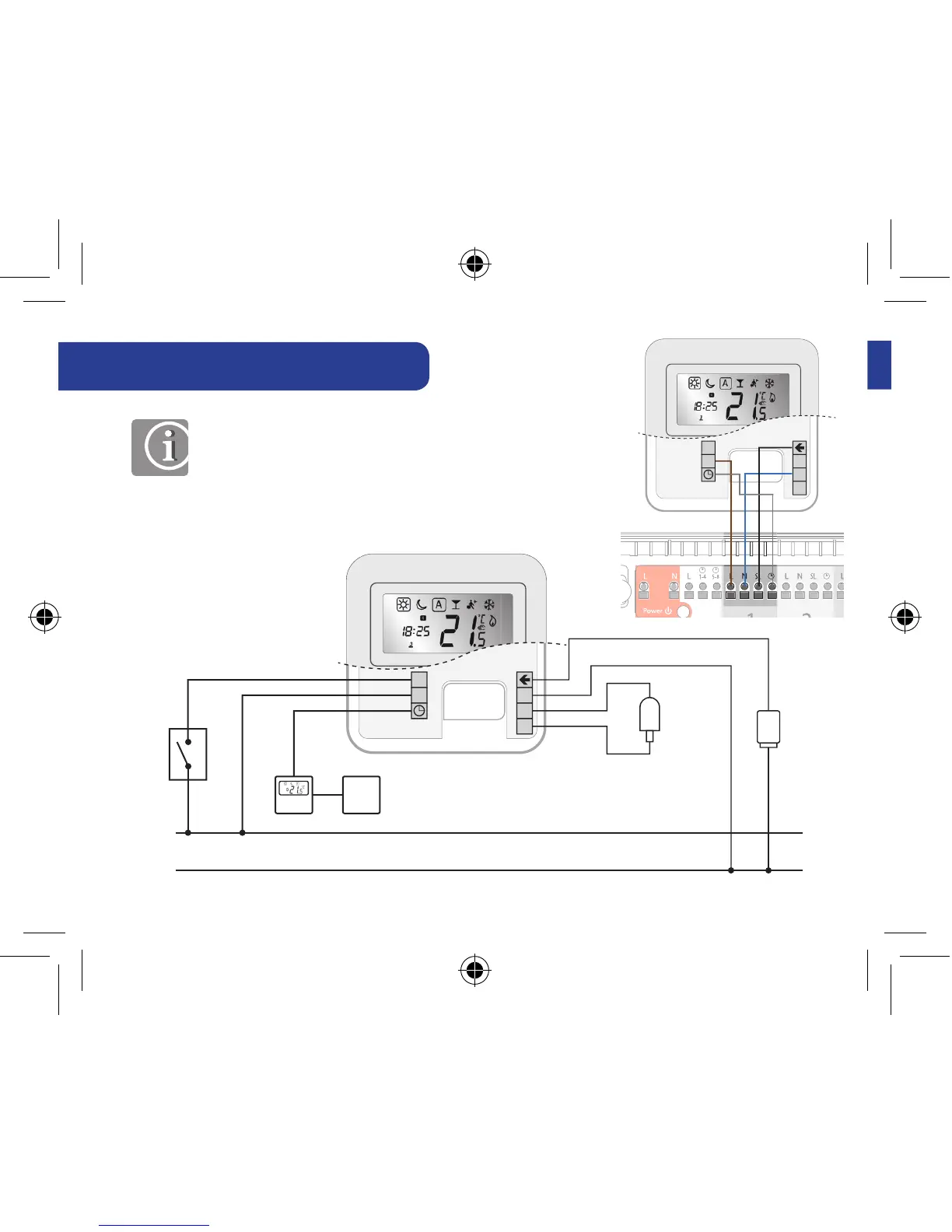

2. Terminal Connection
N
N
L
CO
L
N
S1
ACTUATOR
OPTIONAL
EXTERNAL
PROBE
E.G.
HEAT
PUMP
OUTPUT
TO MULTIPLE
DEVICES
NSB
OUTPUT
230VAC
50Hz
N
CO
L
N
S1
Note: You can wire the thermostat directly to
the KL08NSB wiring centre or to an actuator
(purchased separatly).
6 HTRP230 Instruction Manual
