Before you start:

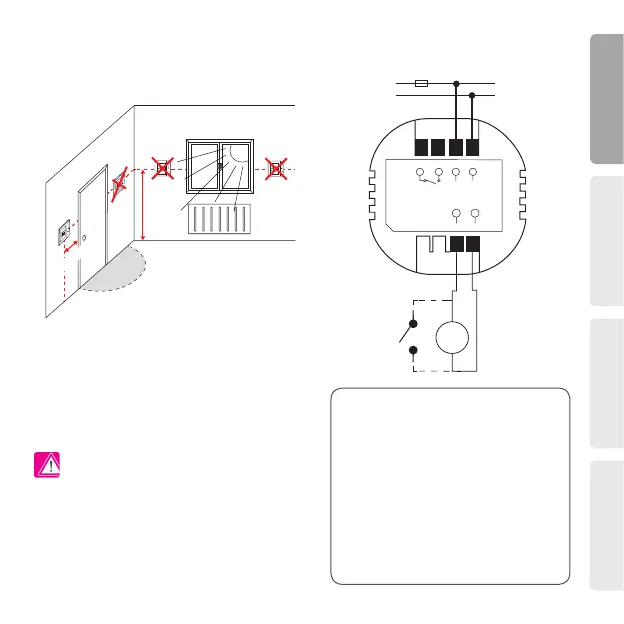

Wiring diagram:
Symbols explanation:
S - volt-free contact
T - temperature sensor
L, N - 230V AC pover supply
COM, NO - Voltage free output
S1,S2 Terminals:
- air or oor temperature sensor
- external volt-free contact to connect any ON/
OFF switch or occupancy sensor (Hotel card)
Mounting: to mount thermostat you can use included
accessories (mounting screws). Remove plate from
the back to mount it to the wall. After that just put
thermostat on the plate.
Please note:
The ideal position to thermostat mounting is about 1,5m
under oor level far from heating or cooling sources.
Thermostat can’t be exposed to sunlight or any extreme
conditions like for example draft.
COM
SQ610
NO L
L
230V~,50Hz
S1 S2
N
N
S
M
M
150 cm
min 20 cm
Select correct thermostat location
AC 230V
