Sam4s SAP-630 Series User Manual

2 Product Specifications
2-10 SAM4S SAP-630 SERIES
2-5 Interface Specifications
2-5-7 LAN (IRC) Signal Description
Pin No Signal Name Signal Direction Function
1 ENET TX+ OUT Ethernet Transmit Data Line(+)
2 ENET TX- OUT Ethernet Transmit Data Line(-)
3 ENET RX+ IN Ethernet Receive Data Line(+)
4 N.C -
5 N.C -
6 ENET RX- IN Ethernet Receive Data Line(+)
7 N.C -
8 N.C -

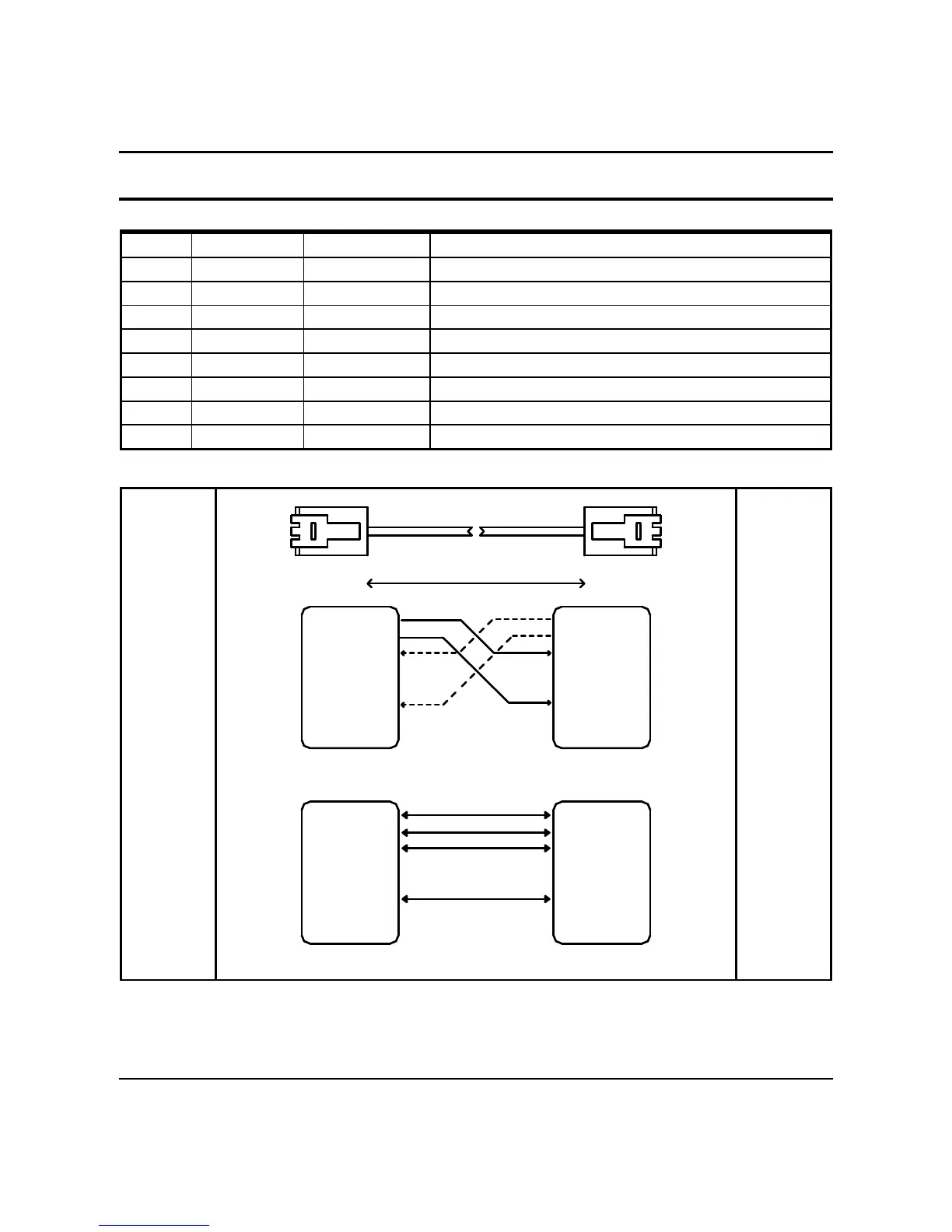

2-5-8 LAN (IRC) Interface Cable
SAP-630 SIDE
MAX 100M
5(N.C)
7(N.C)
8(N.C)
4(N.C)
5(N.C)
6(ENET RX-)
7(N.C)
1(ENET TX+)
2(ENET TX-)
3(ENET RX+)
6(ENET RX-)
1(ENET TX+)
2(ENET TX-)
3(ENET RX+)
4(N.C)
8(N.C)
( POS to POS IRC I/F CABLE )
7(N.C)
8(N.C)
6(ENET RX-)
7(N.C)
2(ENET TX-)
3(ENET RX+)
4(N.C)
6(ENET RX-)
4(N.C)
2(ENET TX-)
3(ENET RX+)
5(N.C)
1(ENET TX+)
8(N.C)
5(N.C)
1(ENET TX+)
( POS to HUB IRC I/F CABLE )
USER SIDE

Sam4s SAP-630 Series Specifications

General

Brand	Sam4s
Model	SAP-630 Series
Category	Touch terminals
Language	English
