Sam4s SAP-630 Series User Manual

2 Product Specifications
SAM4S SAP-630 SERIES 2-11
2-5 Interface Specifications

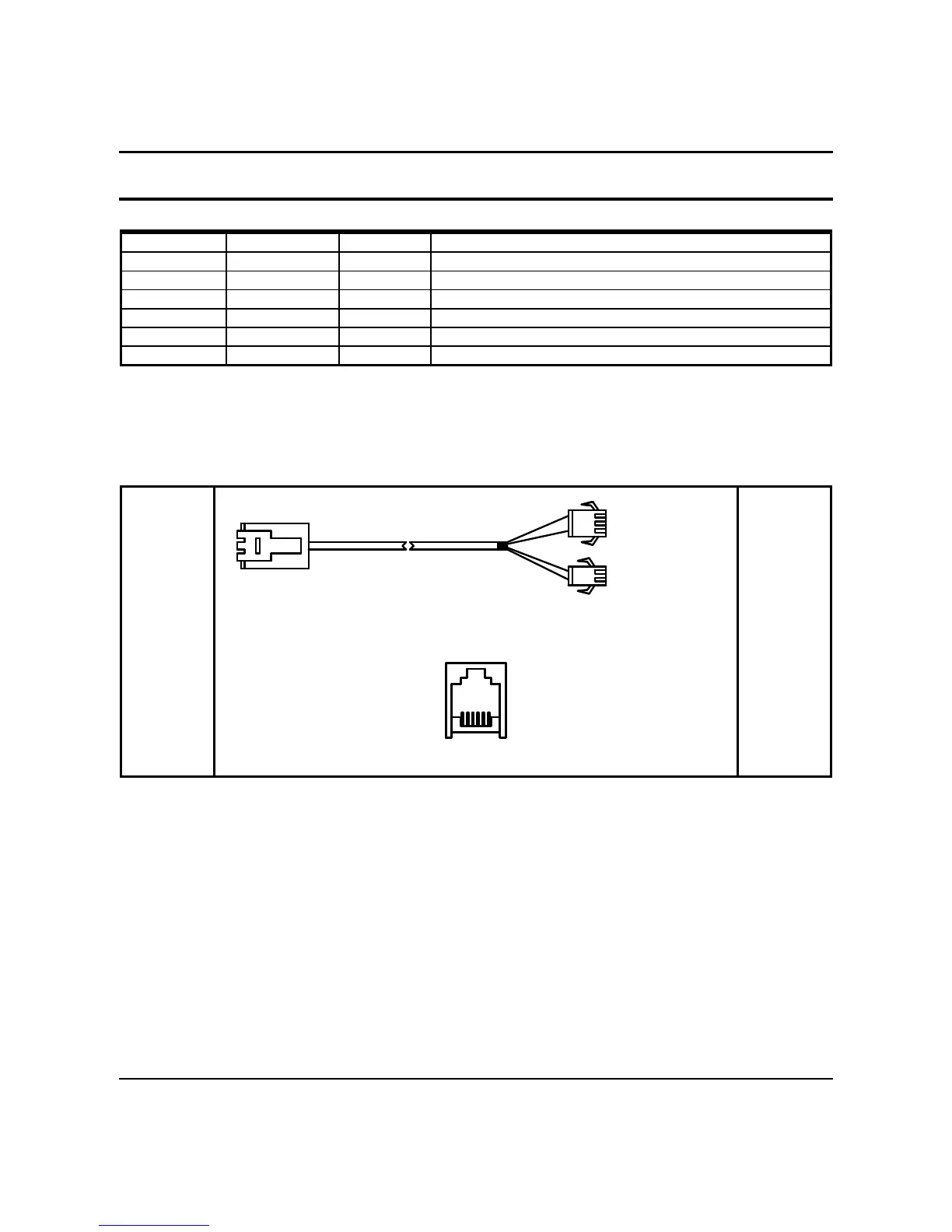

2-5-9 DRAWER Signal Description
Pin No Signal Name Direction Function
1 S.G - Signal GND
2 DRAWER#OUT OUT Drawer Kick-Out Driver Signal.
3 DRA_COMP IN Drawer Open / Close Signal
4 +24V - Supply DC +24[V]
5 DRAWER#OUT OUT Drawer Kick-Out Driver Signal.
6 F.G - Frame GND
CAUTION :
Make sure that installed “+24V Cash Drawer”.
Make sure that the Cash Drawer Solenoid Resistance is more than 20[Ohm]
2-5-10 DRAWER Interface Cable
SAP-630 SIDE
RJ11 6P
COMPULSORY
DRAWER
(DRAWER I/F CABLE)
6
1
( DRAWER CONNECTOR )
USER SIDE
