Sames GNM 100 - Connecting Plug (19 Pins B)

Index revision : C 7 6209

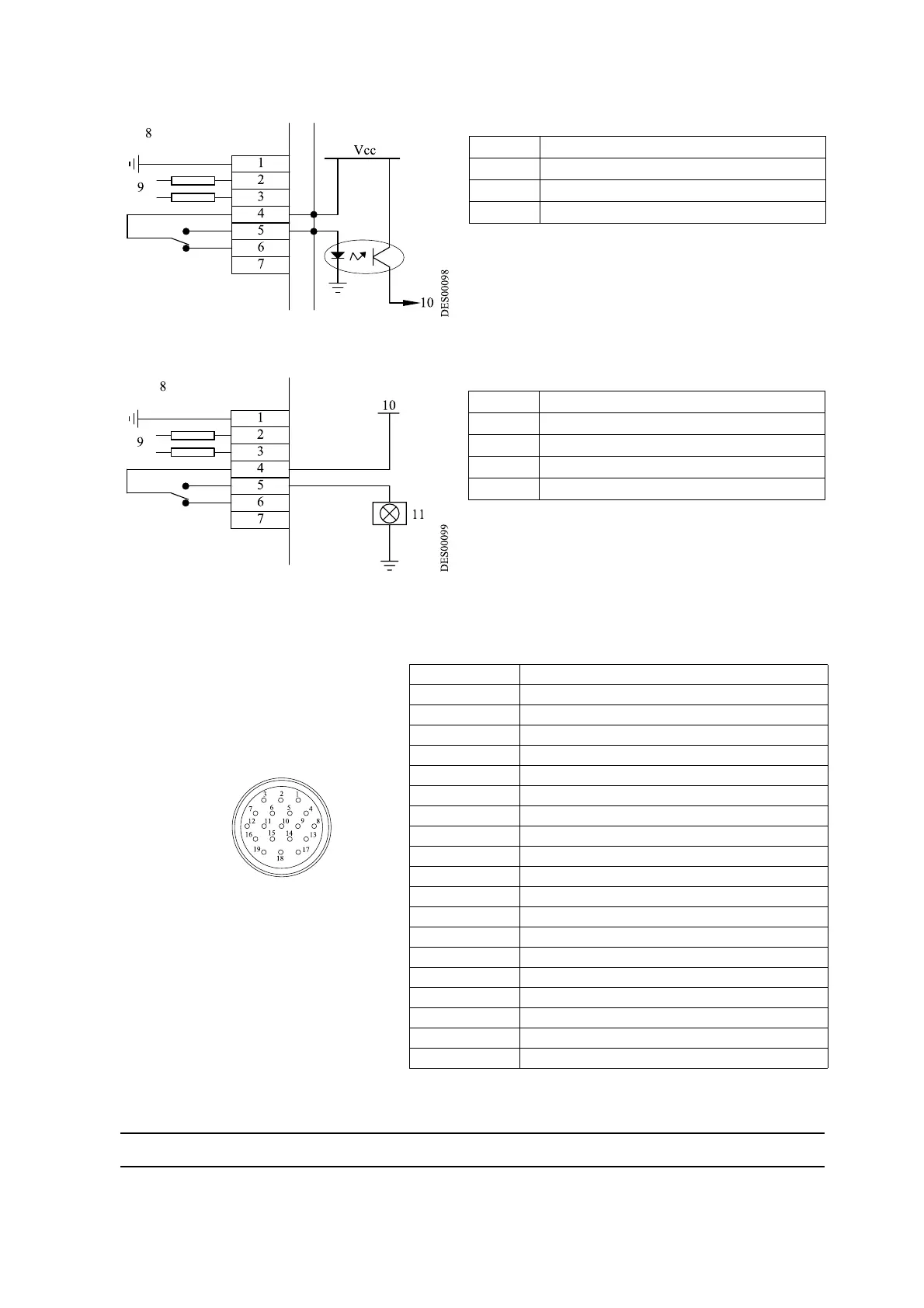

Example of a PLC cabling:
Cabling for "HV ON" signalling light,
3.5. Connecting plug (19 pins B)
Connection to an PLC:
The mass is joined to the earth through the board.
1 to 7 GNM case
8 Inside GNM
9 Main supply output protected by fuses
10 PLC input
1 to 7 GNM case
8 Inside GNM
9 Main supply output protected by fuses
10 220 VAC oR 110 VAC
11 Light on
N° of pins Signal
1 Earth
2 Not connected
3 Not connected
4 Input 4 / 20 mA
5 Earth 4 / 20 mA or 0 / 10 V
6 Input 0 / 10 V
7 Image output Vm (100 kV = ~ 5 V)
8 Earth
9 Image output Im (500 µA = ~ 5 V)
10 Input + photo coupler
11 + 15 V / 50 mA max. protected
12 Earth
13 Input + photo coupler
14 Relay OK board contact normally closed
15 Relay OK board contact normally open
16 OK board common relay
17 Not connected
18 Not connected
19 Not connected
