MOUNTING AND INSTALLATION

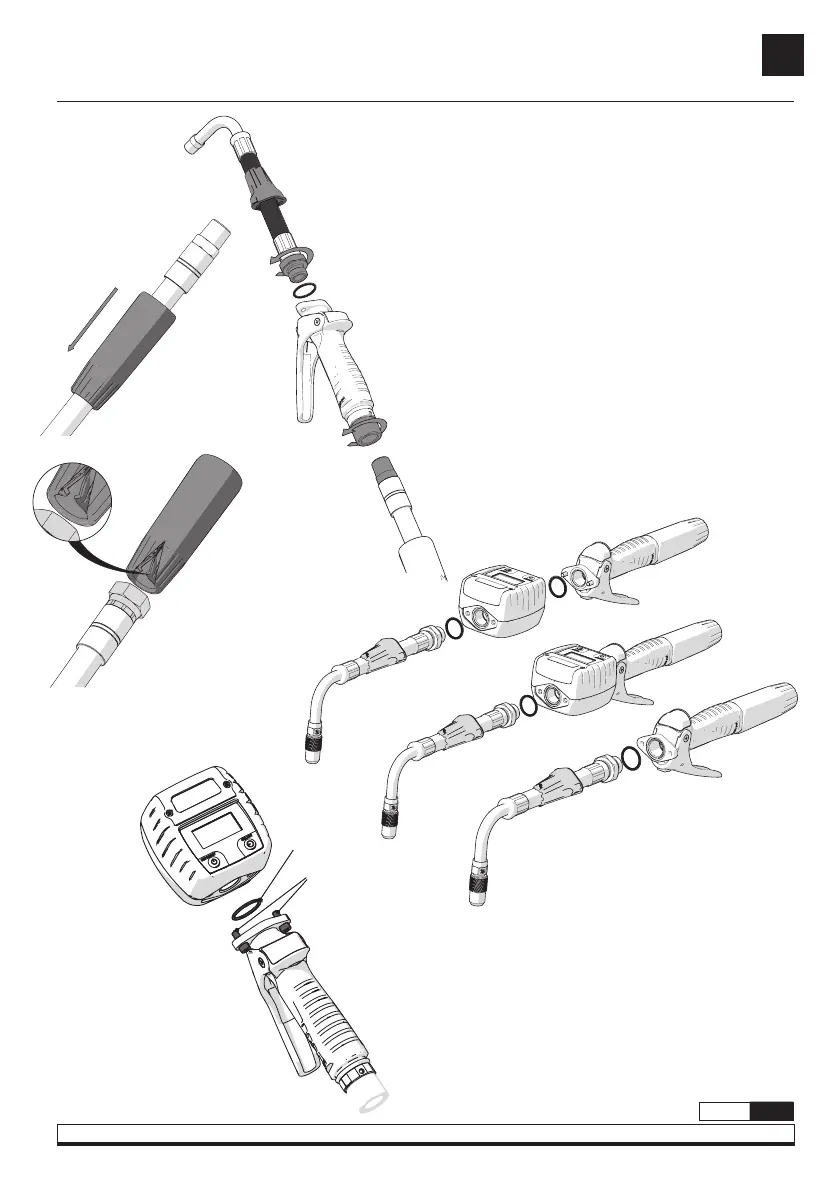

Fig. 1
Fig. 2
Fig. 3
• To ensure the sealing, mount the extension outlet using
the provided o-ring, taking care that the position of the
o-ring in the flange housing is correct. Lubricate the
o-ring before mounting (fig. 4).
• Attach the swivel cover to the house before installing
the oil gun in the system.
• The swivel cover is compatible with 1/2" hoses, either
with male fixed terminal or swivel nut (fig. 1).
• Depending on the type of terminal hose may be
necessary to open the end of the swivel cover to allow
its passage through the hose. The swivel cover has a slot
at its end for easy opening (fig. 2).
• To connect the gun to the network, keep fixed the gun
body and the end of the hose while rotate the free end
of the swivel to achieve the desired torque (fig. 3).
• A flow meter can be attached to the gun by means of
the flange.
• Employ a 24 x 2 mm size o-ring (1) and two M5 x 14
screws (2) for mounting.
1
2
Fig. 4
