APPENDIX A
1.2 CONNECTING CABLE

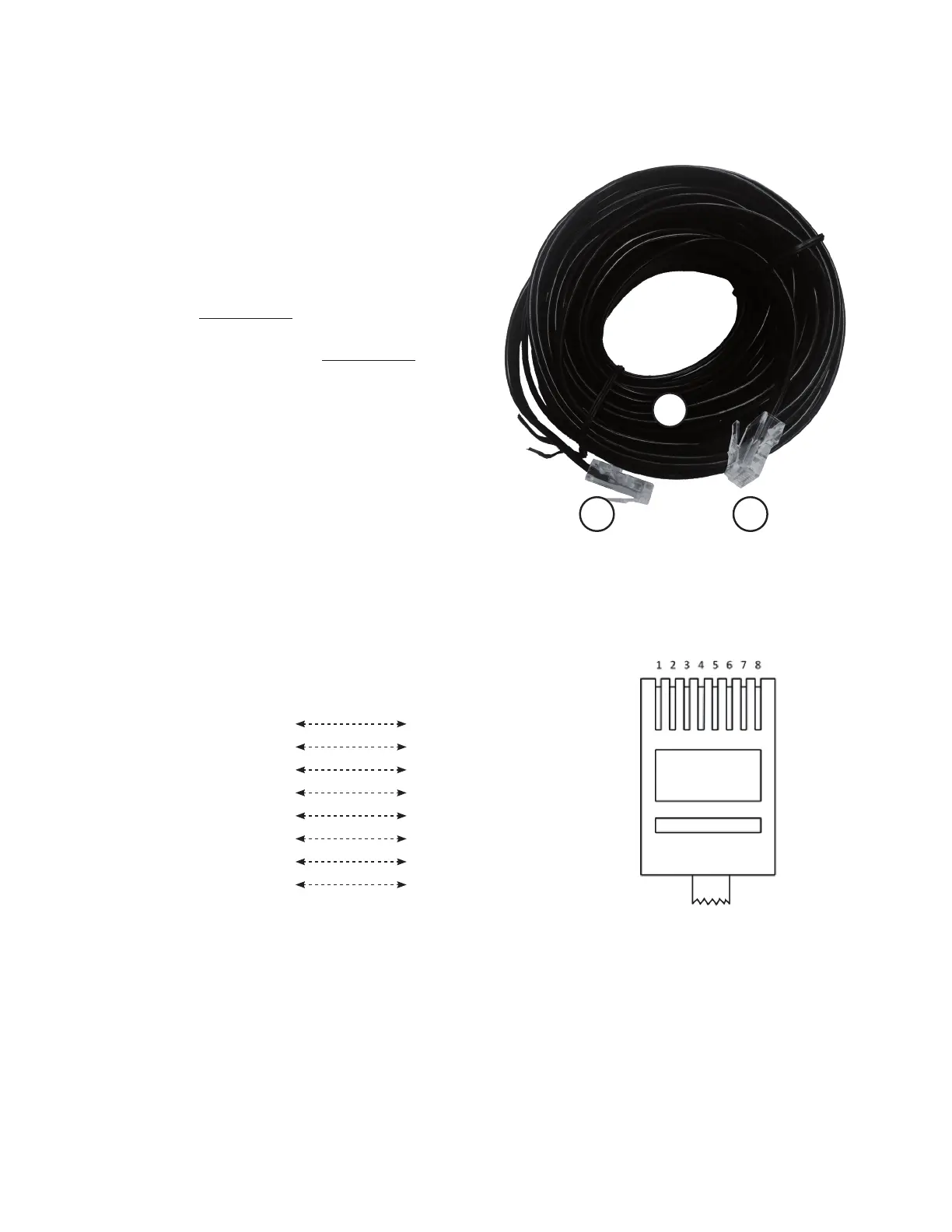

Connecting cable shown in Fig 1.2(a) has been provided to
connect EVO-RC Remote Control to EVO Inverter Charger
Models EVO-2212 / EVO-3012 / EVO-2224 / EVO-4024.
Details of the connecting cable are as follows:
• Length of cable [1, Fig 1.2(a)] : 10m / 33ft
• No. of conductors: 8
• RJ-45 (8P8C) Plugs on either end [2, Fig 1.2(a)].
Pinouts and interconnection of the RJ-45 Plugs are
shown in Fig 1.2(b)
SECTION 1 | Introduction and Layout
Straight
Connection
Top view of Plug -
Locking Tab facing down
8P 8C, RJ-45 Modular Plug
1
22
Fig 1.2 (a) Connecting Cable
Fig 1.2 (b) Pinout and Interconnection of RJ-45 Plugs
