1.0 INTRODUCTION AND LAYOUT
EVO-RC Remote Control allows you to monitor and customize the operating parameters of Samlex Evolution™
Series Inverter/Charger Models EVO-2212, 2224, 3012 and 4024.
It has its own internal Real Time Clock (RTC) and Super Capacitor type of battery for clock operation.
1.1 LAYOUT AND DIMENSIONS
1. LCD Screen - 2 rows of 16
characters each
2. ON/OFF Key
3. Green LED “Status”
4. Red LED “Fault"
5. Navigation Key “Back”
6. Navigation Key “Up”
7. Navigation Key “Down”
8. Navigation Key “Enter”
9. SD Card Slot - FAT16/32
format; Up to 16GB
10. RJ-45 Jack (At the back-not
shown). See pinout below:

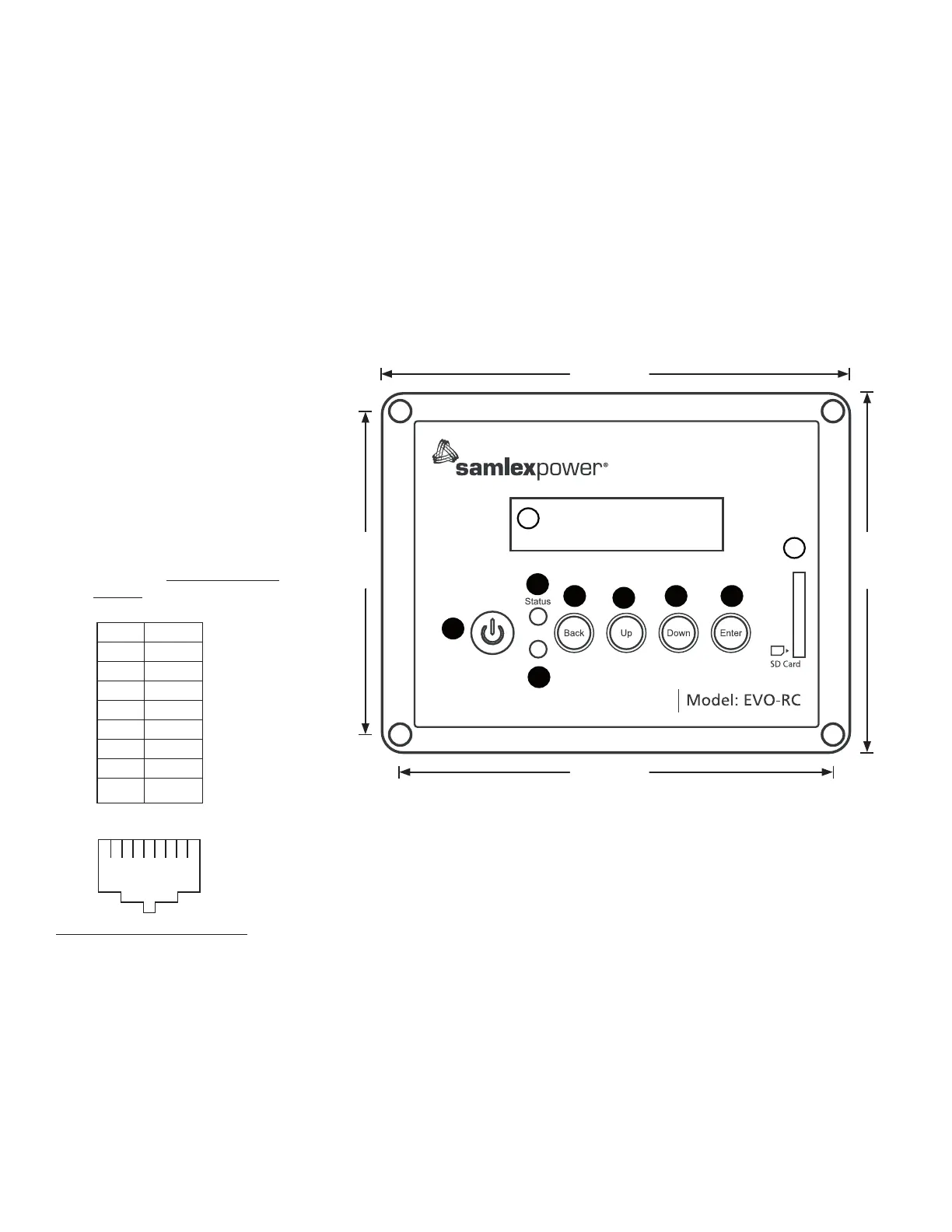

Fig 1.1 Optional Remote Control EVO-RC - Layout & Dimensions
Pin # Signal
1 12V
2 12V
3 ON/OFF
4 D+
5 D-
6 NC
7 GND
8 GND
1 2 3 4 5 6 7 8
1 2 34 5 6
(View - Looking into the Jack)
1
2
7
8
6
3
5
9
4
Fault
132 mm
114 mm102 mm
144 mm
