1 RIBBON LEVEL – Four-position switch used
to adjust the high frequency response (in 2dB
increments).
2 VOLUME - Controls the amount of output level.
3 XLR INPUT - Balanced, +4dBu line level input is
connected here via standard XLR (microphone)
cable.
Rubicon R5a and R6a Layout

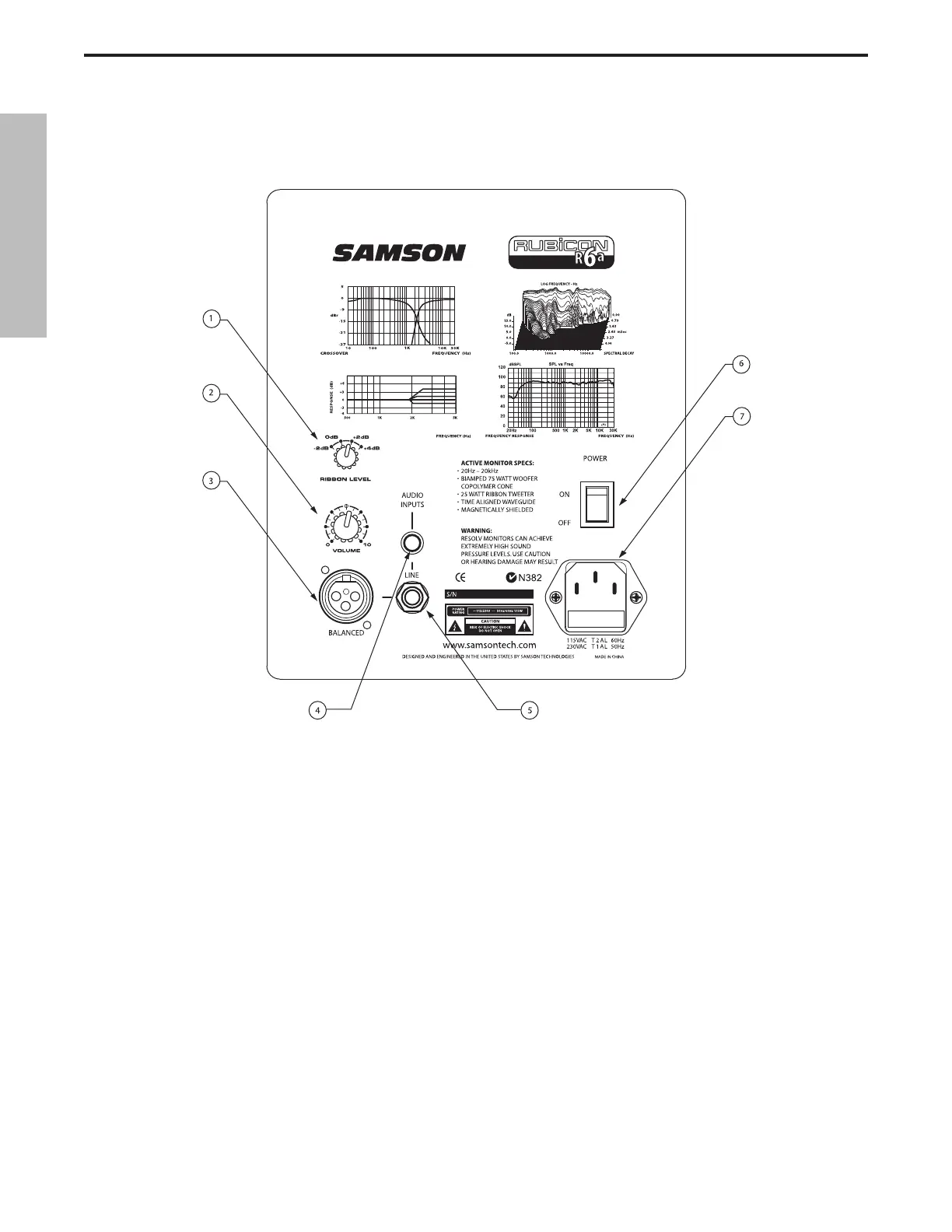

Rear Panel Layout - R6a
4 RCA – Used to connect signals from unbalanced,
–10dBV devices.
5 1/4-INCH PHONE – Balance TRS (Tip, Ring,
Sleeve) 1/4-inch phone plug used to connect
balanced or unbalanced +4dBu line level signals.
6 POWER SWITCH – Main power switch.
7 AC INLET - Connect the supplied IEC power
cable here.
ENGLISH
6
