Samson 6A - Connecting to the Resolv120 a Subwoofer; Rubicon R5 a and R6 a with Mono Sub

Connecting to the Resolv120a Subwoofer
Rubicon R5a and R6a with Mono Sub

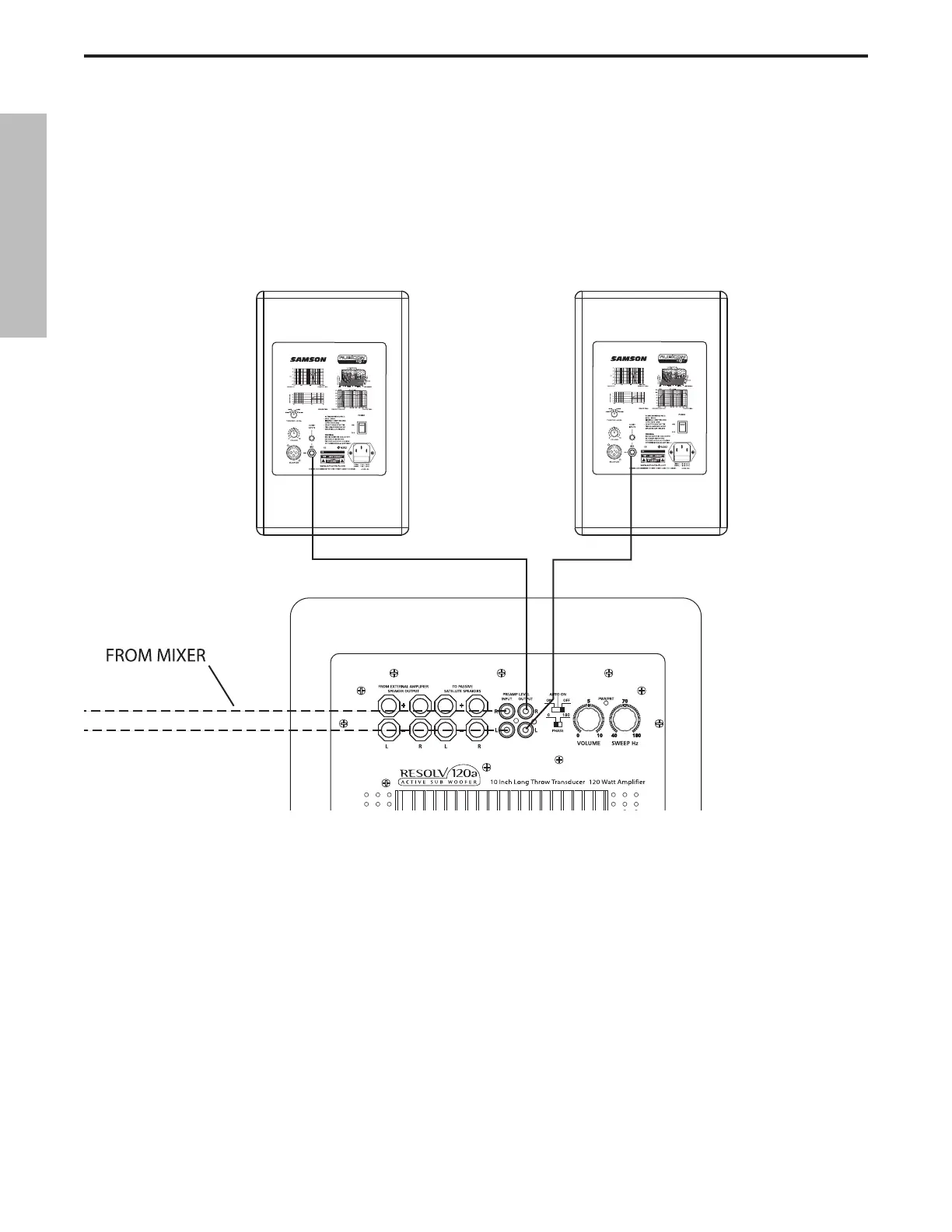

Adding a subwoofer and extended low frequency response to your Rubicon R5a or R6a system is easy using
the Rubicon R5a or R6a’s LINE LEVEL inputs. Below is a typical system set-up using the Samson RESOLV 120a
or Sub88 with a mixer and a pair of Rubicon R6a satellite speakers. The Rubicon R5a and R6a’s inputs utilize
industry standard RCA connectors. For a detailed wiring diagram, see the section “Rubicon R5a and R6a
Connections” on page 57. Follow the steps in the diagram below to set up your system.
• Lower your mixer’s master outputs to all the way off.
• Connect the mixer’s left output to the RESOLV 120’s LEFT LINE INPUT and the mixer’s right output to
the RESOLV 120’s RIGHT LINE INPUT. Now connect the RESOLV 120’s LEFT LINE OUTPUT to the input
of the left Rubicon R5a or R6a, and the RESOLV 120’s RIGHT LINE OUTPUT to the input of the right
Rubicon R5a or R6a.
• Run an audio signal (like some music from a CD) through your mixer and raise the level to a comfort-
able listening level.
• Now adjust the SWEEP control to the desired frequency. You can also use your ears by adjusting the
SWEEP control to the frequency that sounds good to you. A good place to start is about 70 Hz.
