Positioning and Mounting Instructions
Before fly-mounting, wall-mounting or ceiling-mounting the Expedition, you must
first install a Samson MP 1030 mounting bracket to the fly points, as shown in the
illustrations on the right
Standard cabling and hardware can then be attached to the MP 1030 mounting
bracket in environments where the Expedition needs to be “flown.”
In fixed installations where you wish to mount the Expedition to a ceiling, use the
OmniMount model 100-STMP mount, as shown in the illustration below:
In fixed installations where you wish to mount the Expedition from a wall, use the
OmniMount model 100-WB mount, as shown in the illustration below:

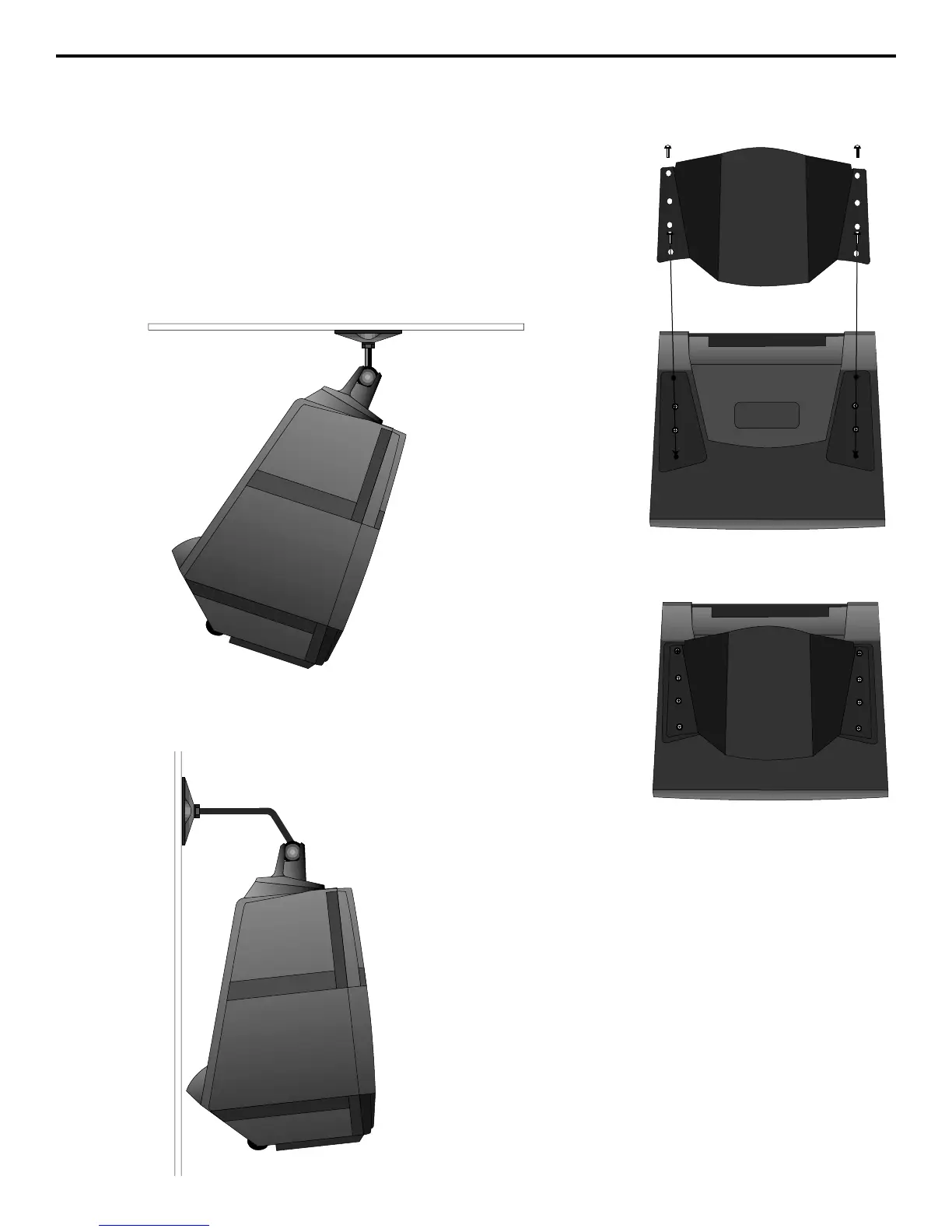

Top of Expedition with MP 1030
mounting bracket installed.
Installing the MP 1030 mounting
bracket (top view)
