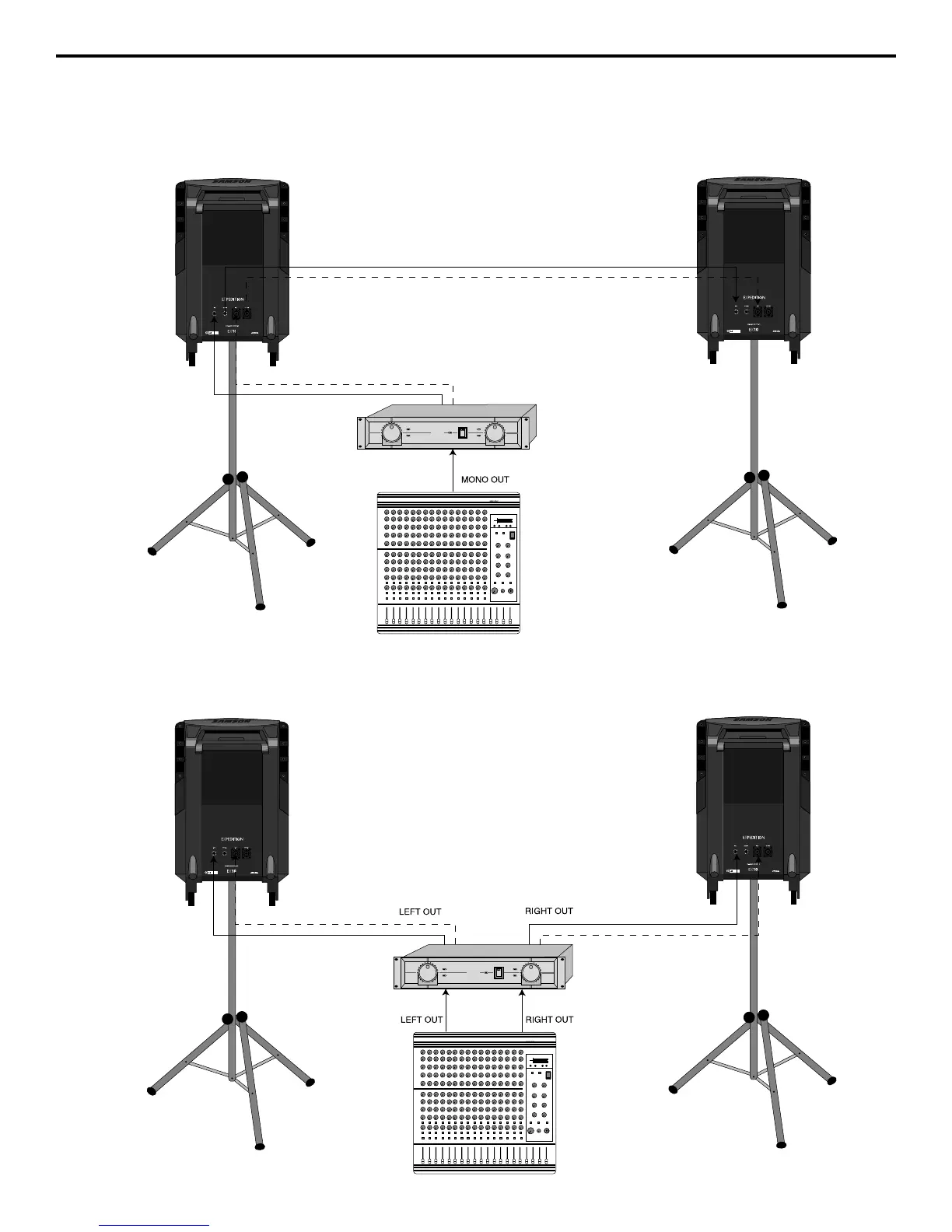

Using two EX10s in mono: A single mono signal (bus or aux send) is routed from a mixer to a power amplifier. One
speaker output of the power amplifier is connected to either the EX10 1/4" input (solid line) or Speakon™ input (dotted
line), and a connection is made between either the 1/4" extension to a second EX10’s input (solid line) or between the
Speakon™ extension to a second EX10’s Speakon™ input (dotted line).
Using two EX10s in stereo: A stereo signal (bus or aux send) is routed from a mixer to a power amplifier. The left
speaker output of the power amplifier is connected to one EX10 (using either the 1/4" input [solid line] or Speakon™ input
[dotted line]), and the right speaker output of the power amplifier is connected to the other EX10 (again using either the
1/4" input [solid line] or Speakon™ input [dotted line]).
