Graphite 49 · USB/MIDI Keyboard Controller
12345

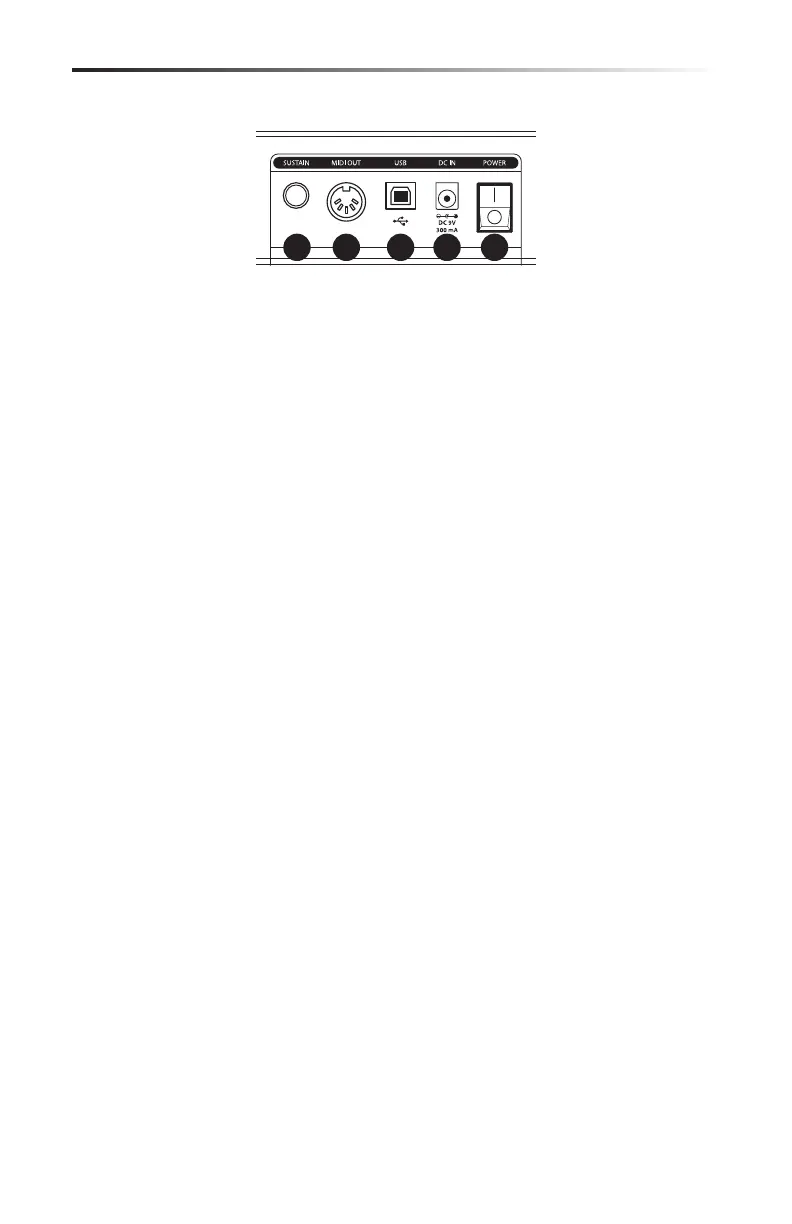

Rear Panel Controls and Functions
1. POWER Switch - Use this switch to turn the keyboard on or o.
2. DC IN - The Graphite 49 can be powered using a 9V 300mA adaptor, connected to the DC IN
jack.
3. USB Connection - Connect a standard USB cable from this port to the USB connection on a
computer or iPad to provide power to the keyboard, as well as to send and receive MIDI data.
4. MIDI OUT - Use a 5-pin MIDI cable to connect the Graphite 49 to an external MIDI device.
5. SUSTAIN Pedal Input - Connect a ¼” sustain pedal to this input. This input is preset from the
factory to send MIDI sustain (CC #64) messages. The SUSTAIN pedal input can be assigned to
send dierent MIDI parameters in Setup Mode.

Samson Graphite 49 Specifications

General

Pad color	Black
Knobs color	White
Control type	Buttons, Rotary
MIDI-keyboard number of keys	49 keys
Windows operating systems supported	Yes
Display type	LCD
Power source type	DC
Product color	Black, White
Volume control	Rotary
Package depth	127 mm
Package width	838.2 mm
Package height	317.5 mm
Package weight	8800 g
Interface	USB
USB version	2.0
