Samson Graphite 49 User Manual

12
Quick Start
1. Connect the Graphite 49 to your computer using the supplied USB cable. The unit will
receive power and transmit MIDI data via the USB connection.
2. Connect a ¼” TS pedal to the SUSTAIN pedal input.
3. Push the POWER switch to the on position.
4. Launch your DAW or virtual instrument software, and set the Graphite 49 as the MIDI Input
and MIDI Output device.
5. To use the Graphite 49 with an external MIDI device (such as a sound module), connect a
5-pin MIDI cable to the MIDI OUT on the rear of the Graphite 49, and to the MIDI IN of the
external device. For more information on connecting to an external MIDI device, please see
the MIDI Out section on p. 26.

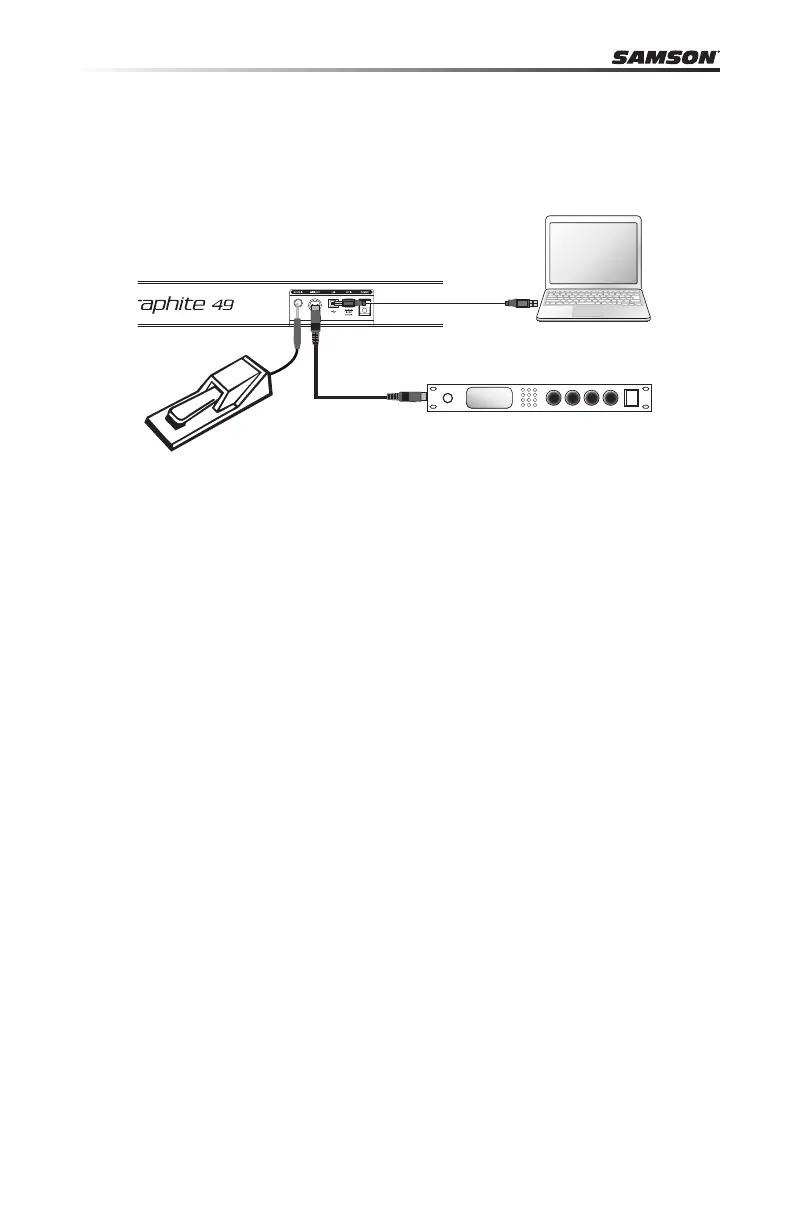

MIDI Device
Sustain Pedal
Computer

Samson Graphite 49 Specifications

General

Pad color	Black
Knobs color	White
Control type	Buttons, Rotary
MIDI-keyboard number of keys	49 keys
Windows operating systems supported	Yes
Display type	LCD
Power source type	DC
Product color	Black, White
Volume control	Rotary
Package depth	127 mm
Package width	838.2 mm
Package height	317.5 mm
Package weight	8800 g
Interface	USB
USB version	2.0
