Graphite 49 · USB/MIDI Keyboard Controller

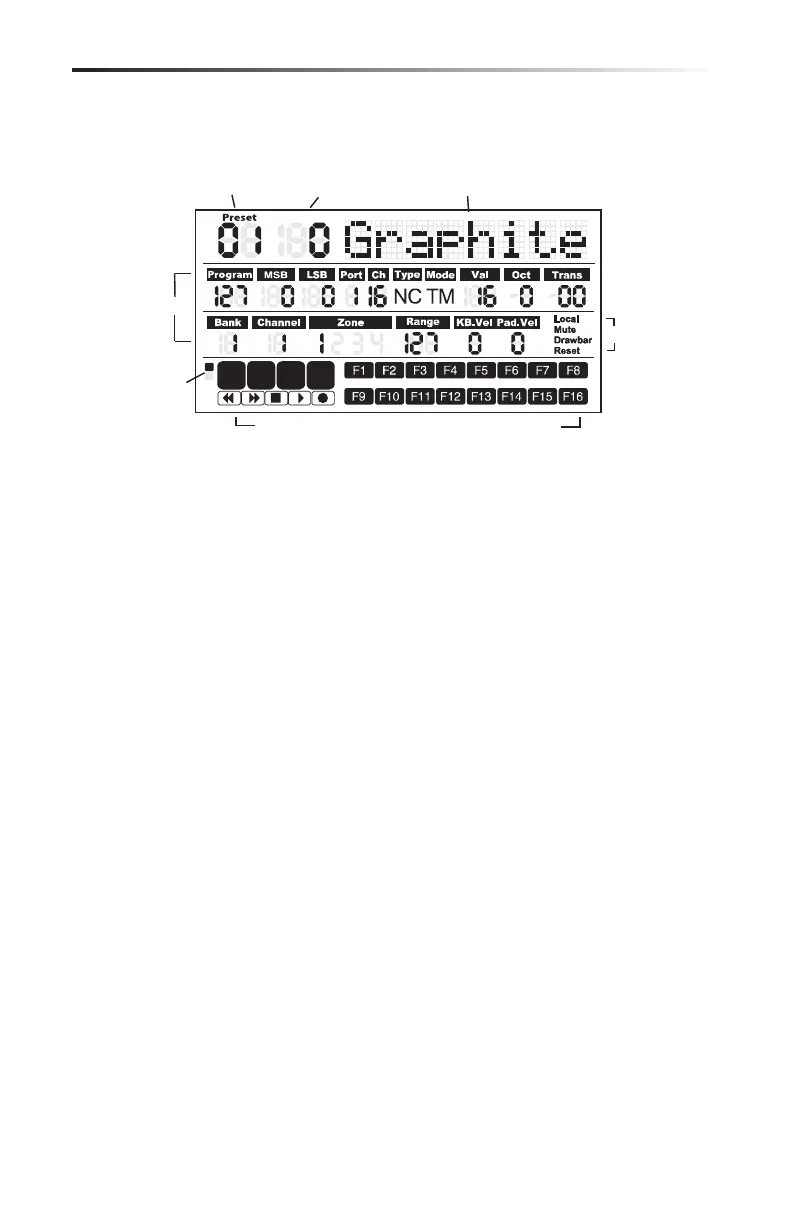

Display Features
The Graphite 49 features a backlit LCD screen that displays performance information, settings for
the controllers, and status information.
Preset: The current preset number. The range is 01–30.
Data: The current value of a given controller.
Parameter Tags
Program: MIDI Program number. The range is 0–127.
MSB: Most Signicant Bit. The range is 0–127.
LSB: Least Signicant Bit. The range is 0–127.
Port: USB virtual out Port. The range is 1–5.
Ch: MIDI Channel. The range is 1–16.
Type: Button type “C” represents Control type. “N” represents the note type.
Mode: Operation mode of the pad or button. “T” represents toggle. “M” represents momentary.
Val: Control code of the controller. When the working button or pad is dened as “note type,” the
Val is the note number.
Oct: Octave shift for the keyboard. The range is +/- 4.
Trans: Transpose shift for the keyboard. The range is +/- 12.
Bank: The bank is the collection of all encoders and sliders set when the selected preset is “01” or
User preset. The range is 1–2. When remote control preset is selected, it will display “-“.
Channel: The global channel number of encoders and sliders in preset “01” or User preset. When
remote control preset is selected, it will display “-“.
Zone: The number of the activated zones. The range is 1–4.
Range: The range of note number keys for the active zone. The number of the left most and right
most key in the zone will rotate. The range is 0–127.
KB.Vel: Number of the keyboard velocity (touch response) curve. The range is 0–9.
Pad.Vel: Number of the pad velocity (touch response) curve. The range is 0–9.
A
B
Pad Bank A/B
Pads, Function and Transport Button Indicators
Parameter Tags
Status Indicators
Current preset number
Data
Operation
