1 2 3 1 2 3
4 5 6 5 6

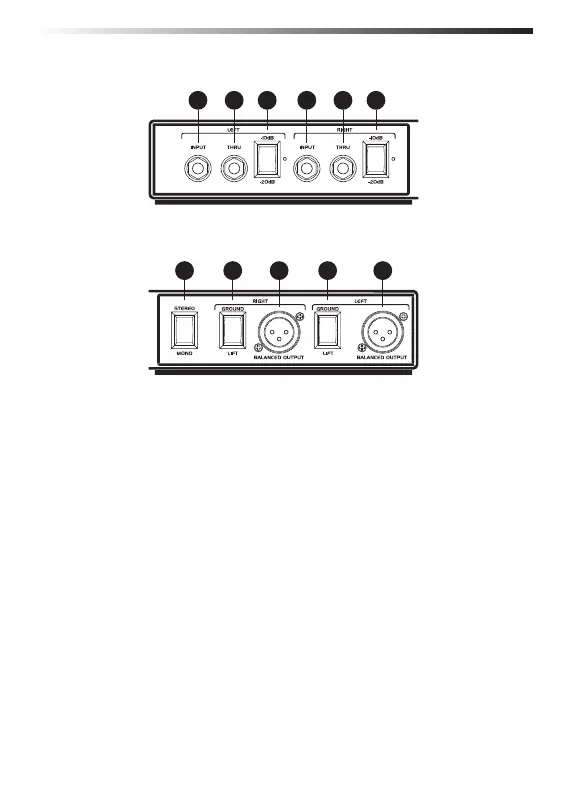

Callouts
1. INPUT Jacks – 1/4” hi-Z input jacks for connecting for instrument,
and line level signals.
2. THRU Jacks – 1/4” outputs for passing the input signal through to a
stage amplifier or monitor system.
3. -10dB / -20dB Pad switch – When engaged, the input level is atten-
uated by either -10dB or -20dB to prevent distortion.
4. STEREO/MONO Switch – When the switch is in the STEREO position,
each input is routed to its corresponding output. In the MONO
position, the Left and Right input signals are summed together and
fed to both Left and Right Output jacks.
5. GROUND LIFT Switches – When the switch is engaged, the input
ground (shield) is disconnected.
6. BALANCED OUTPUT Jacks – Male XLR low-Z connectors.
Front
Rear
