Samson PXD1 Quick Start Guide

XPD2 USB Digital Wireless System 5

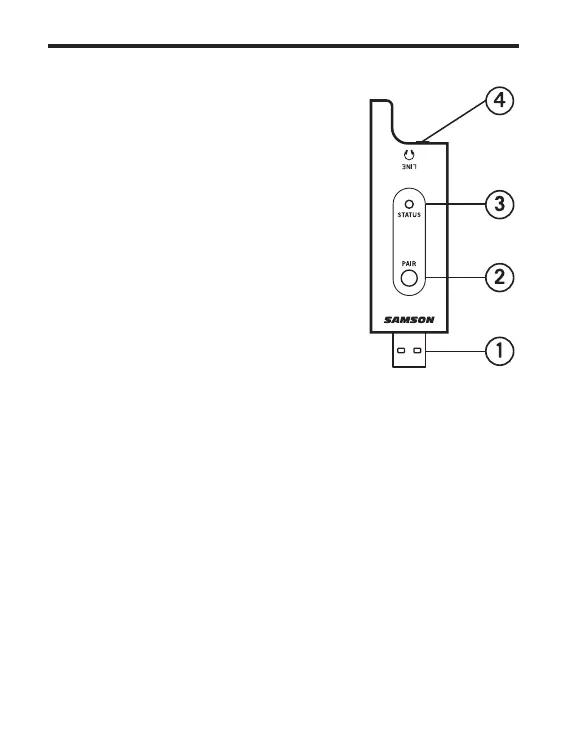

RXD2 Controls
1. USB Connector - Plugs into the USB jack
on the rear panel of a wirelessly enabled
Samson audio device. The receiver can
also plug directly into a computer USB
port and will be recognized as a USB
audio device. The unit passes audio to the
device and receives power from the device
through this connector. If connecting
the LINE output to an analog device, the
RXD2 can be powered using a standard 5
Volt adapter.
2. PAIR Switch - Press >5 seconds to enter
pairing mode.
3. STATUS Indicator - This LED displays the
operation mode:
Amber: Normal Operation
Flashing Amber: Pairing
No Light: Not paired; Transmitter out of
range; No Power
4. LINE / Headphone Output - Use this 3.5mm
jack when connecting to an analog line
input or headphones for monitoring.
