16
OUTPUT
CHANNEL 1
CHANNEL 2
MINIMUM LOAD IMPEDANCE
STEREO
(4/CHANNEL)
BRIDGED MONO
(8)
+
-
+
-
+
-
CAUTION
; REPLACE WITH THE SAME TYPE FUSE AS INDICATED.
UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE.
ww w.sams ont ech .co m
CHANNEL 1
TIP RING SLEEVE
TIP +
RING -
SLEEVE GND
CHANNEL 2
TIP RING SLEEVE
TIP +
RING -
SLEEVE GND
INPUTS
BRIDGED
STEREO
MODE SELECTOR
(10K / 0dBu)
INPUT
(10K / 0dBu)
INPUT
20A / 250V
PUSH TO RESET
~
AC INPUT
115V / 60Hz, 800W
SERIAL NUMBER
INPUT
– +
INPUT
– +

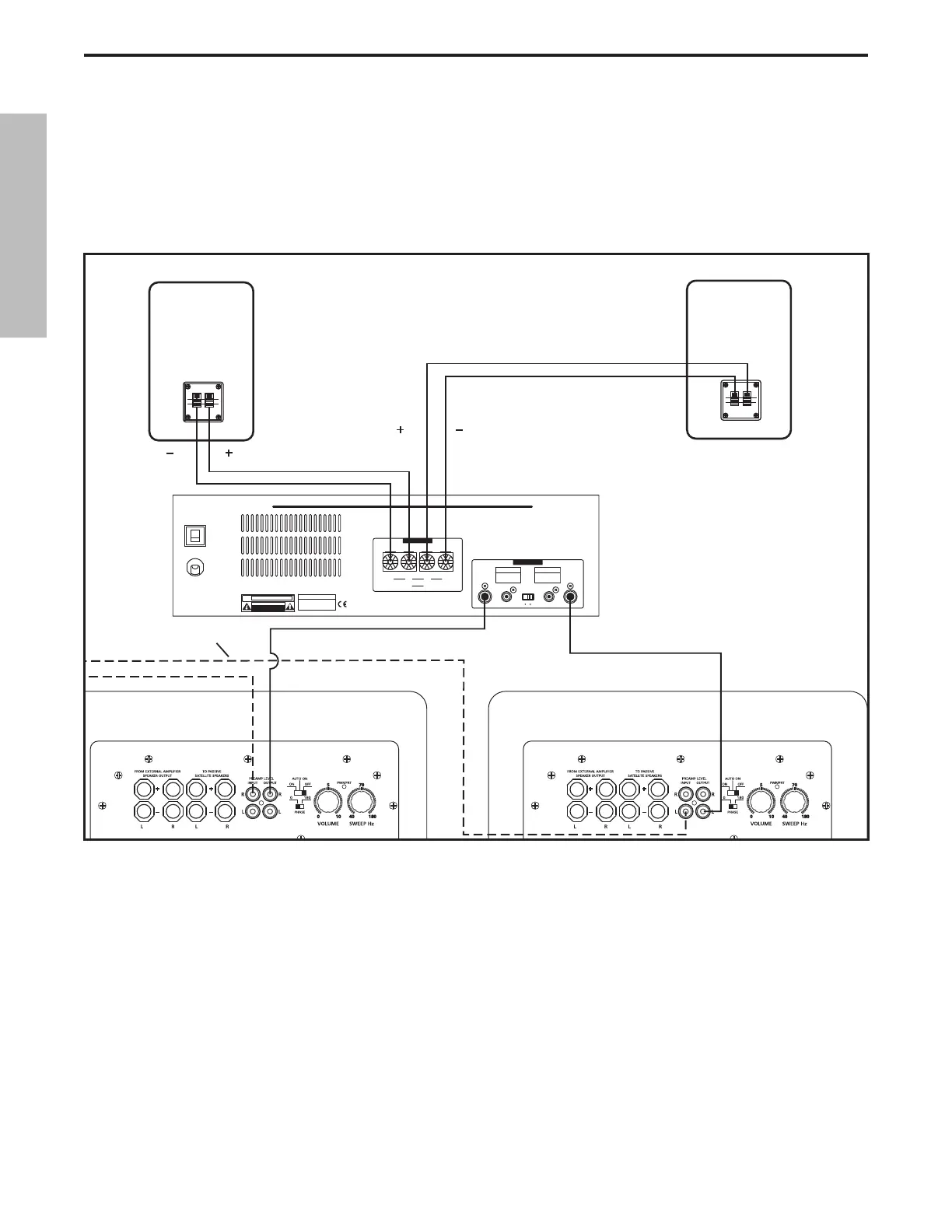

Connecting the RESOLV 120a
Stereo Sub With Passive Satellites
Two RESOLV 120a’s can be used with any pair of passive or active monitors. Below is a typical system set-up using two
RESOLV 120a’s with a mixer, stereo power amp and a pair of passive satellite loud speakers. The RESOLV 120a’s inputs
and outputs utilize industry standard RCA connectors. For a detailed wiring diagram, see the section “ RESOLV 120a
Connections” on page 19. Follow the steps in the diagram below to set up your system.
• Lower your mixer’s master outputs to all the way off.
• Connect the mixer’s left output to the left side RESOLV 120a’s LEFT PREAMP INPUT and the mixer’s right output
to the right side RESOLV 120a’s RIGHT PREAMP LEVEL INPUT. Now connect the left RESOLV 120a’s LEFT PREAMP
OUTPUT to the left side input of the power amp, and the right RESOLV 120a’s RIGHT PREAMP LEVEL OUTPUT to the
right side input of the power amp. Connect a speaker wire from the left output of your power amp to your left satel-
lite, and then, connect a speaker wire from the right output of your power amp to your right satellite.
• Now adjust the SWEEP control to the desired frequency. Consult your studio monitors owner’s manual for a recom-
mended crossover point. You can also use your ears by adjusting the SWEEP control to the frequency that sounds
good to you. A good place to start is about 70 Hz.
• Now set the level of your power amp up to the normal operating level. Run an audio signal (like some music from
a CD) through your mixer and raise the level to a comfortable listening level. Now slowly raise the RESOLV 120a
Volume control and listen to the low frequency output. Adjust the RESOLV 120a to the level of low frequency output
that you like. Now, when you raise and lower your mixer’s output, the RESOLV 120a and satellites will track at the
same relative volume.
ENGLISH
