Connecting the RESOLV 120a
OUTPUT
CHANNEL 1
CHANNEL 2
MINIMUM LOAD IMPEDANCE
STEREO
(4/CHANNEL)
BRIDGED MONO
(8)
+
-
+
-
+
-
CAUTION
; REPLACE WITH THE SAME TYPE FUSE AS INDICATED.
UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE.
ww w.s ams ont ech.c om
CHANNEL 1
TIP RING SLEEVE
TIP +
RING -
SLEEVE GND
CHANNEL 2
TIP RING SLEEVE
TIP +
RING -
SLEEVE GND
INPUTS
BRIDGED
STEREO
MODE SELECTOR
(10K / 0dBu)
INPUT
(10K / 0dBu)
INPUT
20A / 250V
PUSH TO RESET
~AC INPUT
115V / 60Hz, 800W
SERIAL NUMBER
MADE IN KOREA

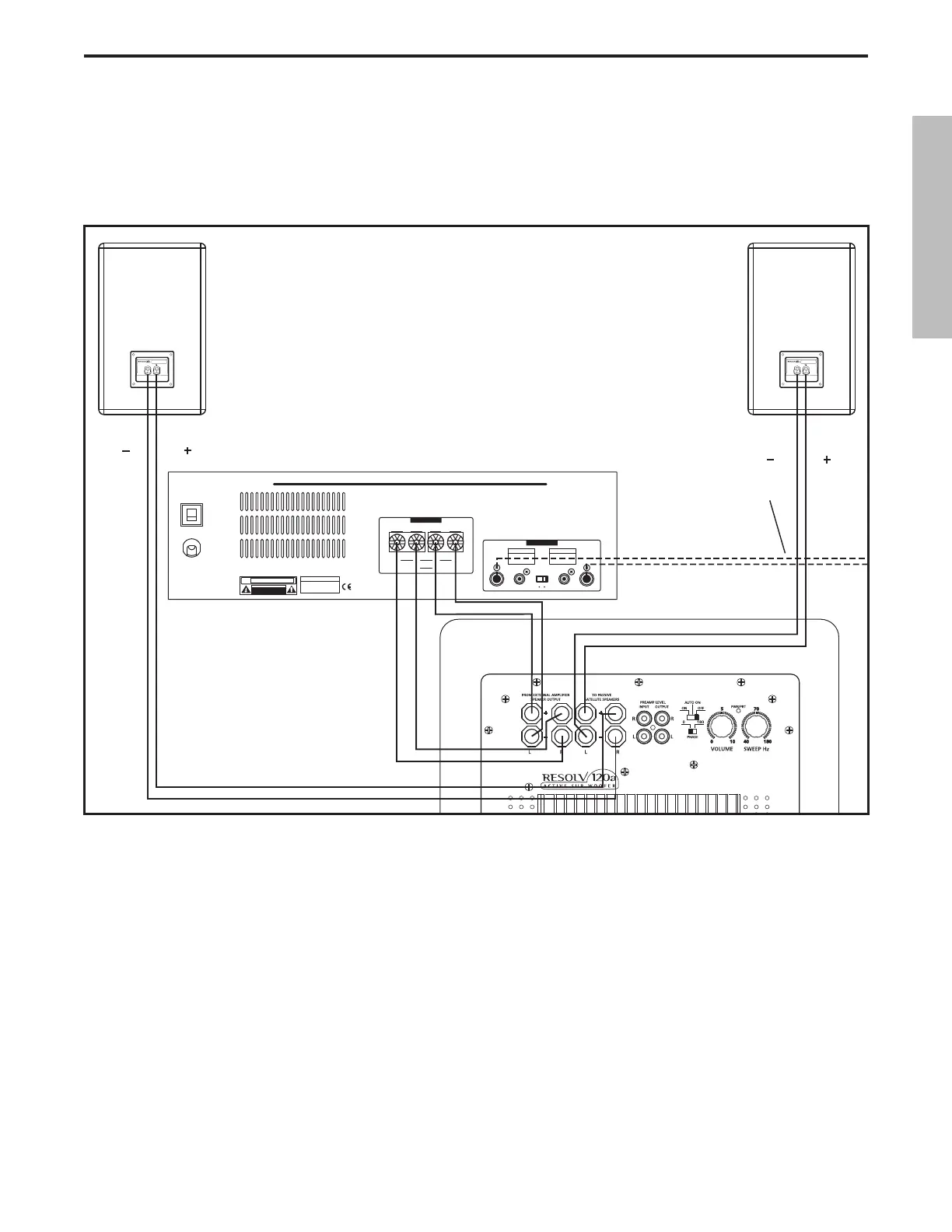

Mono Sub With Passive Satellites Using Speaker Inputs
The RESOLV 120a is a perfect addition to any near-field monitoring system where enhanced low-end is desired. Below is a
typical system set-up using the RESOLV 120a with a mixer, amplifier and a pair of passive satellite speakers. In this mode,
the signal sent to the satellite is high-passed at 100Hz. The RESOLV 120a’s inputs and outputs utilize industry standard
speaker connectors. Follow the steps in the diagram below to set up your system.
• Lower your mixer’s master outputs to all the way off.
• Connect the mixer’s left output to the left input of your power amp and the mixer’s right output to the right input of
your power amp. Now, using standard speaker cable, connect the power amp’s left speaker output to the RESOLV
120a’s LEFT SPEAKER INPUT and the power amp’s right speaker output to the RESOLV 120a’s RIGHT SPEAKER INPUT.
To complete the connections, run a cable from the RESOLV 120a’s LEFT SPEAKER OUTPUT to the left satellite and
from the RIGHT SPEAKER OUTPUT to the right satellite speaker.
• Now adjust the SWEEP control to the desired frequency. Consult your studio monitors owner’s manual for a recom-
mended crossover point. You can also use your ears by adjusting the SWEEP control to the frequency that sounds
good to you. A good place to start is about 70 Hz.
• Now set the level of your power amp up to the normal operating level. Run an audio signal (like some music from
a CD) through your mixer and raise the level to a comfortable listening level. Now slowly raise the RESOLV 120a
Volume control and listen to the low frequency output. Adjust the RESOLV 120a to the level of low frequency output
that you like. Now, when you raise and lower your mixer’s output, the RESOLV 120a and satellites will track at the
same relative volume.
