9
RESOLV 120a Layout

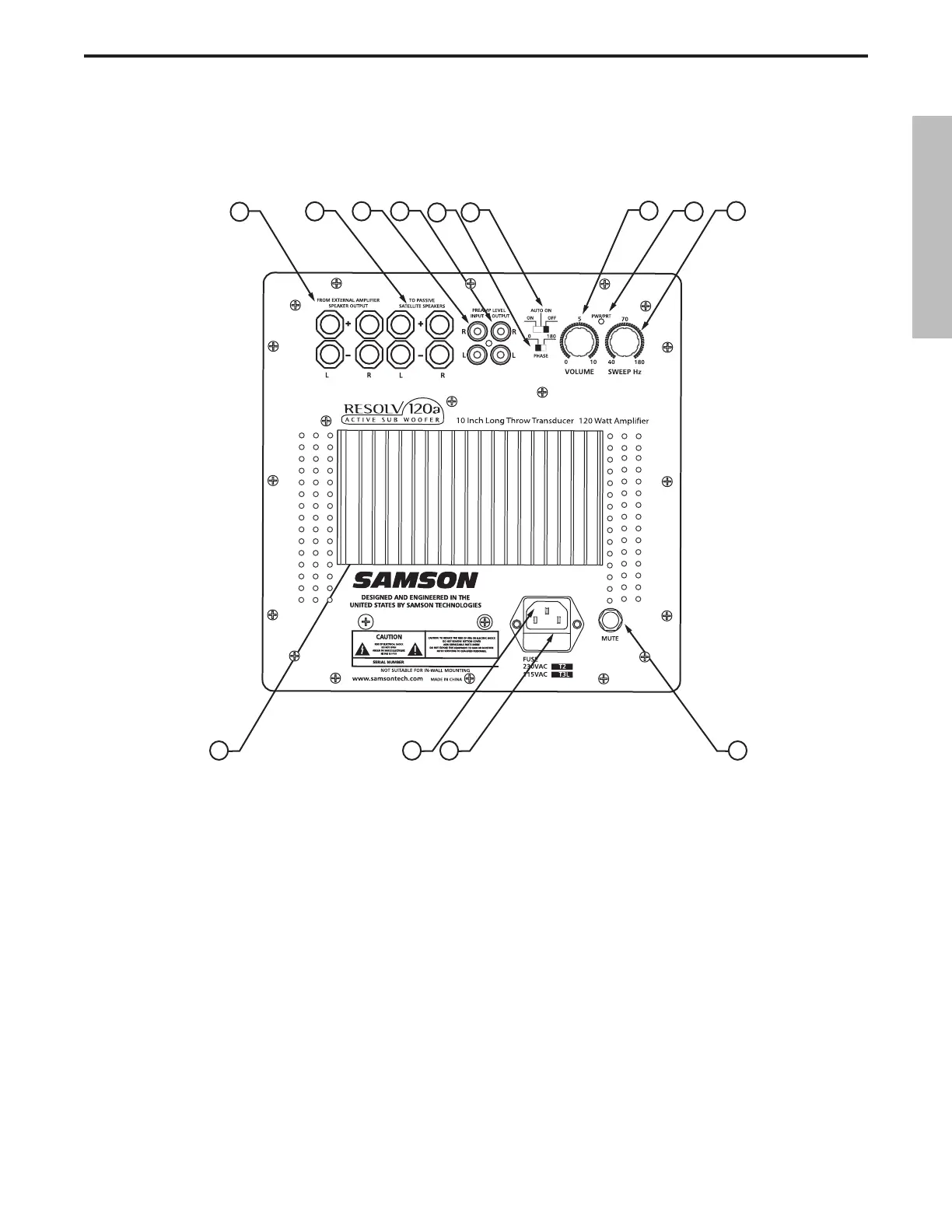

Rear Panel Layout
1 SPEAKER OUTPUT ( INPUT)- Accepts full
range signals from power amplifier.
2 SATELITE SPEAKERS ( OUTPUT)- Sends full
range signals to satellite speakers.
3 PREAMP LEVEL INPUTS - Accepts Line Level
input signals from mixer .
4 PREAMP LEVEL OUTPUTS- Sends Low Level
Output signal.
5 PHASE SWITCH - Allows for 180 degrees out-
of-phase operation.
6 AUTO SLEEP SWITCH - When activated, Sleep
Mode conserves power by automatically turn-
ing unit into standby mode after 10 minutes of
non-use.
7 VOLUME - Controls the amount of output level.
8 POWER/PROTECT LED - Indicates power is on
and if amplifier is in Protect mode.
9 SWEEP HZ - Adjusts the low frequency end
range of the High-Pass outputs.
10 HEAT SINK - Provides cooling of internal power
amplifier.
11 AC INLET - Connect the supplied standard
IEC power cable here.
12 FUSE - User accessible fuse.
13 MUTE SWITCH- Used to connect an external
switch to activate the internal mute function.
ENGLISH
