1 MID RANGE CONTOUR CONTROL – Four-posi-
tion switch used to adjust the midrange
response (in 3dB increments) providing cus-
tomized voicing from hi-fi, to aggressive mid-
range, near-field monitoring.
2VOLUME - Controls the amount of output level.
3 XLR INPUT - Balanced, line level input is con-
nected here via standard XLR (microphone)
cable.

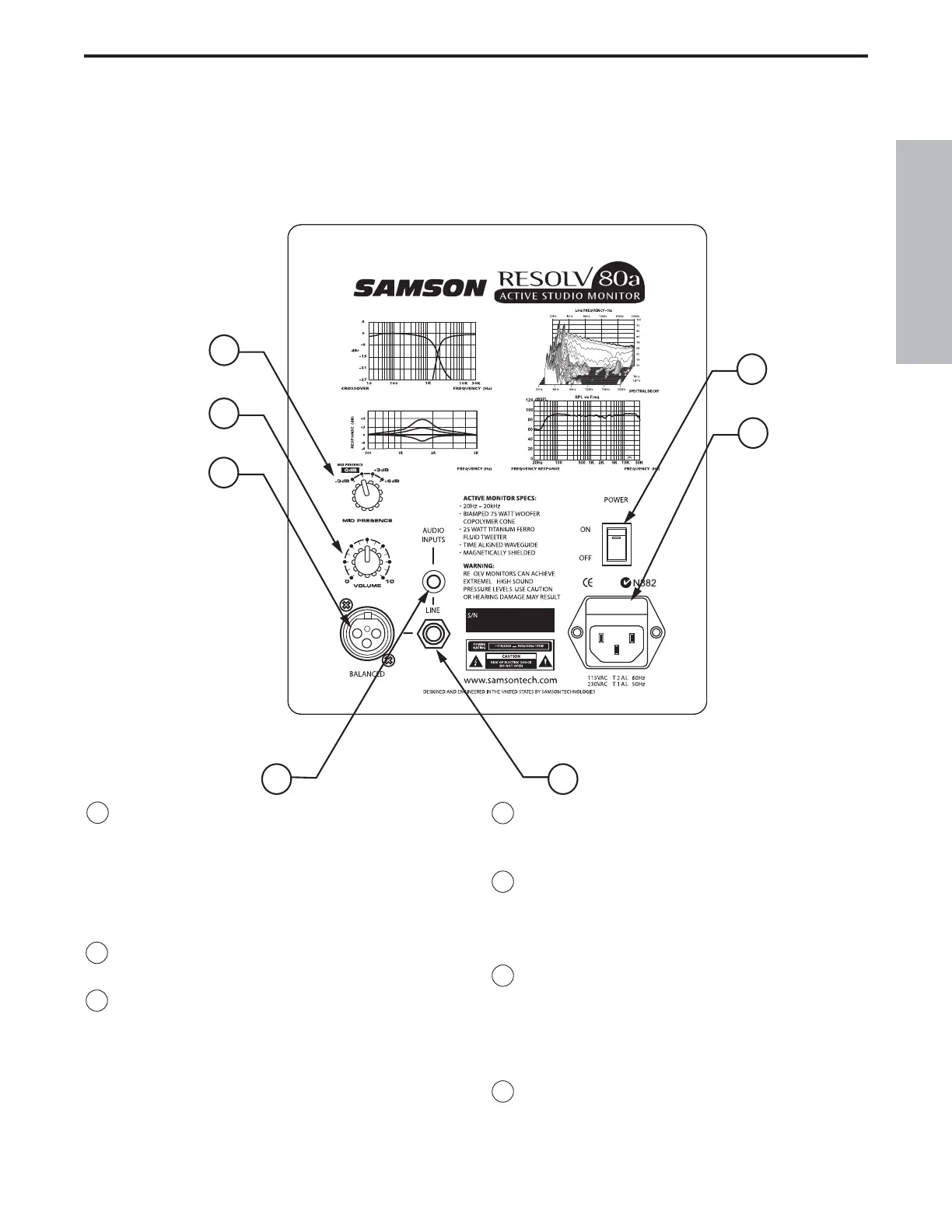

RESOLV 80a Layout
Rear Panel Layout
4RCA– Used to connect signals from unbalanced,
–10dBV devices.
5 1/4-INCH PHONE – Balance TRS (Tip, Ring,
Sleeve) 1/4-inch phone plug used to connect
balanced or unbalanced line level signals.
6POWER SWITCH – Main power switch. When set
to the on position, illuminates green indicating
the Resolv 80a is powered up and ready for
operation.
7AC INLET - Connect the supplied IEC power
cable here.
