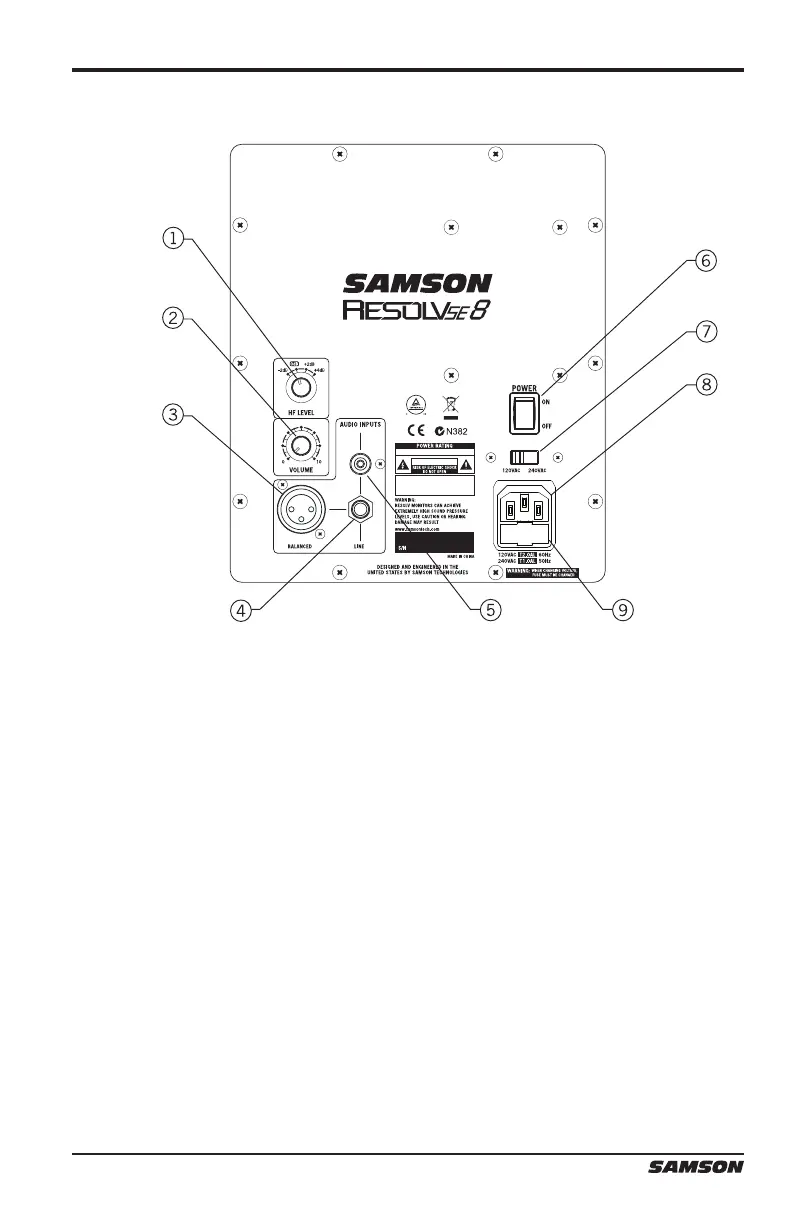

Rear Panel Layout

1. HF LEVEL – Four-position rotary switch used to adjust the high frequency

response. Setting the switch to 0dB (factory setting) produces a flat response.

The -2dB, +2dB and +4dB adjusts a high frequency shelf above 4kHz. Your

room acoustics or listening material will determine the appropriate setting for

your application.

2. VOLUME – Controls the amount of overall output level.

3. XLR Input (SE6 and SE8 only) – Connect a balanced, +4dBu, line level signal here

via standard XLR (microphone) cable.

4. ¼” Input – Connect a balanced, +4dBu, line level signal here via a TRS (Tip,

Ring, Sleeve), or unbalanced TS (Tip, Sleeve) ¼”cable.

5. RCA Input – Used to connect signals from unbalanced, –10dBV devices.

6. POWER Switch – Use this switch to turn the speakers on and off. When powered

on, the front panel LED will light.

7. Voltage Switch – Used to select the operating voltage.

NOTE: Be sure to check that the voltage setting and fuse rating are correct for your country.

8. AC Inlet – Connect the supplied IEC power cable here.

9. Fuse Holder – Holds the mains fuse. To replace the fuse, remove the power cable

and pry the fuse holder open using a flat head screwdriver.

NOTE: Never remove the fuse while the speakers are plugged in.
