Connecting the Resolv Monitors

Resolv SE Studio Monitors

Control Room Outputs

The Resolv SE series monitors are the perfect addition to any project studio. When

connecting your monitors to a mixer, you should utilize the control room outputs of

your mixer so that you can independently control the level to the speakers without

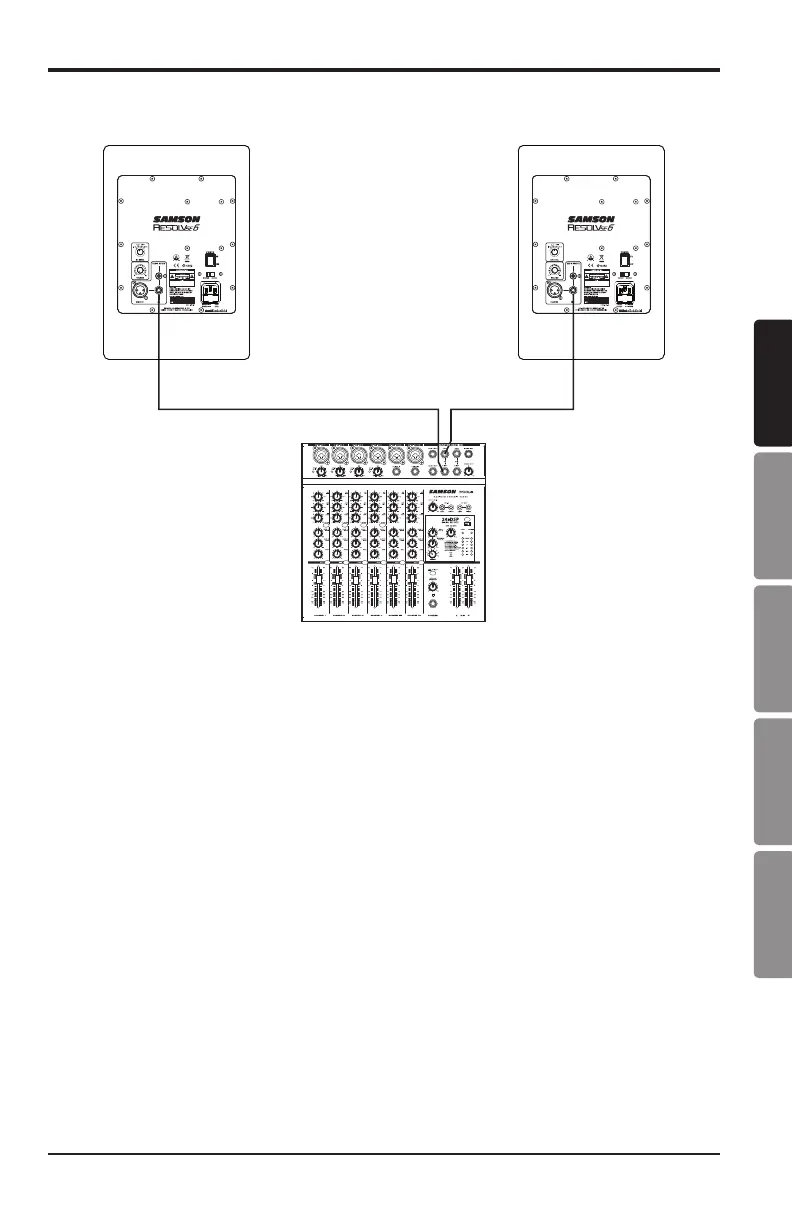

affecting the main mix output. Follow the simple steps and diagram in this section

to quickly connect your monitors using a standard recording console’s control room

outputs.

1. Lower your mixer’s master outputs until they are completely off.

2. Connect the mixer’s Left Control Room output to the left-side Resolv SE Series

LINE INPUT and the mixer’s Right Control Room output to the right-side Resolv

SE Series LINE INPUT. The Resolv SE series connections can be made via one

of the three rear panel Audio Inputs. You can use RCA inputs for unbalanced,

-10dBV level signals, or either the ¼” or XLR (SE6 & SE8 only) inputs for bal-

anced, +4dBu level signals.

Note: Before plugging in and powering on the untis, remember the “last on, first off” rule of

power amplifiers (and powered monitors). When powering up your system, be sure that all the

wires are connected, turn your mixer and any other outboard gear on, and then finally turn your

Resolv SE Series on.

3. Set the Resolv SE Series input Volume control to the 12-o’clock (center detent)

position.

4. Run an audio signal (such as music from a CD) through your mixer and raise the

Control Room level to a comfortable listening volume.
