Appendix A (conguration instructions)

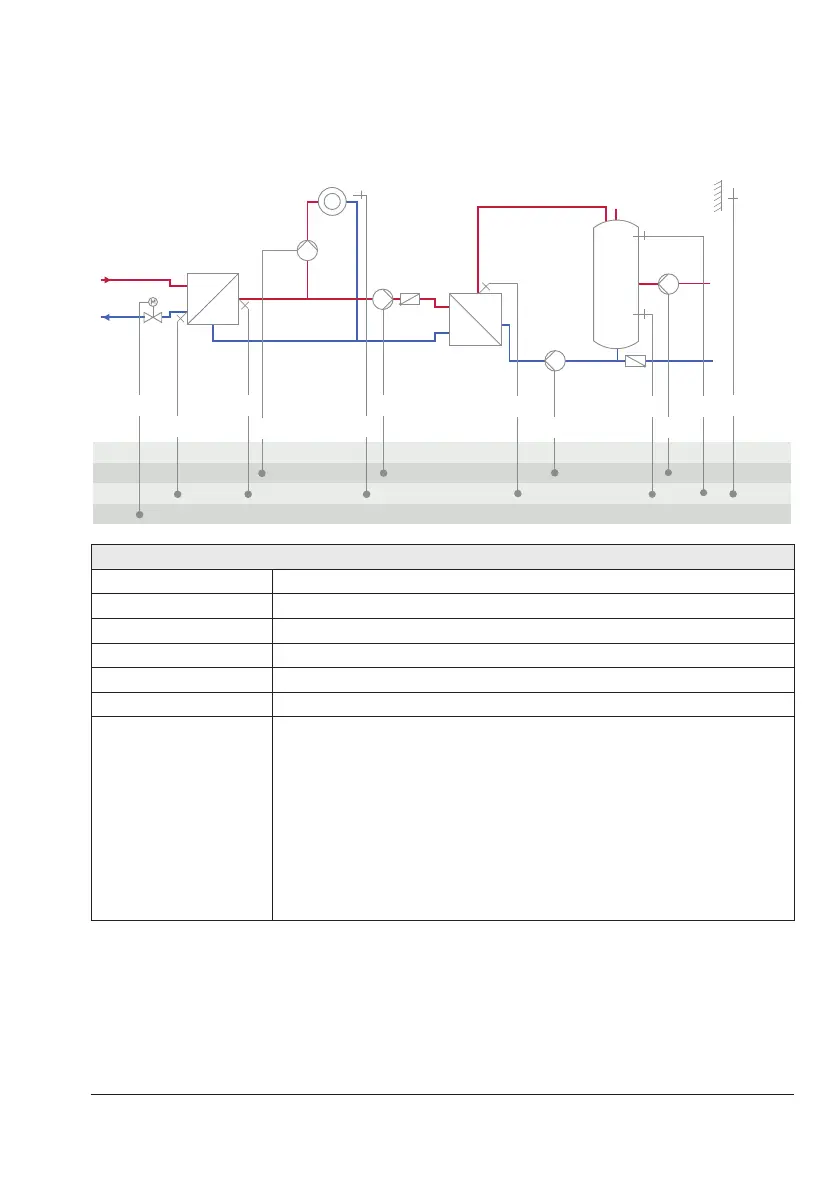

System Anl 2.2
WW
KW
BE
BA
AE
RK
AF1
RüF1
VF1
UP1
RK1
RF1
TLP
SLP
VF4 SF1SF2
ZP
Default setting
CO1->F01 - 0 (without RF1)
CO1->F02 - 1 (with AF1)
CO1->F03 - 1 (with RüF1)
CO4->F01 - 1 (with SF1)
CO4->F02 - 1 (with SF2)
CO4->F05 - 0 (without VF4)
CO5'->F10
Functionofthe0to10Voutput:
− 1=ControlsignalRK1
− 6=Externaldemand
When
CO1->F18-1
− 7=SLPspeed
When
CO4->F21-1
− 5=Outdoortemperature When
CO5->F23-1
Direction 'AA'
