Appendix A (conguration instructions)

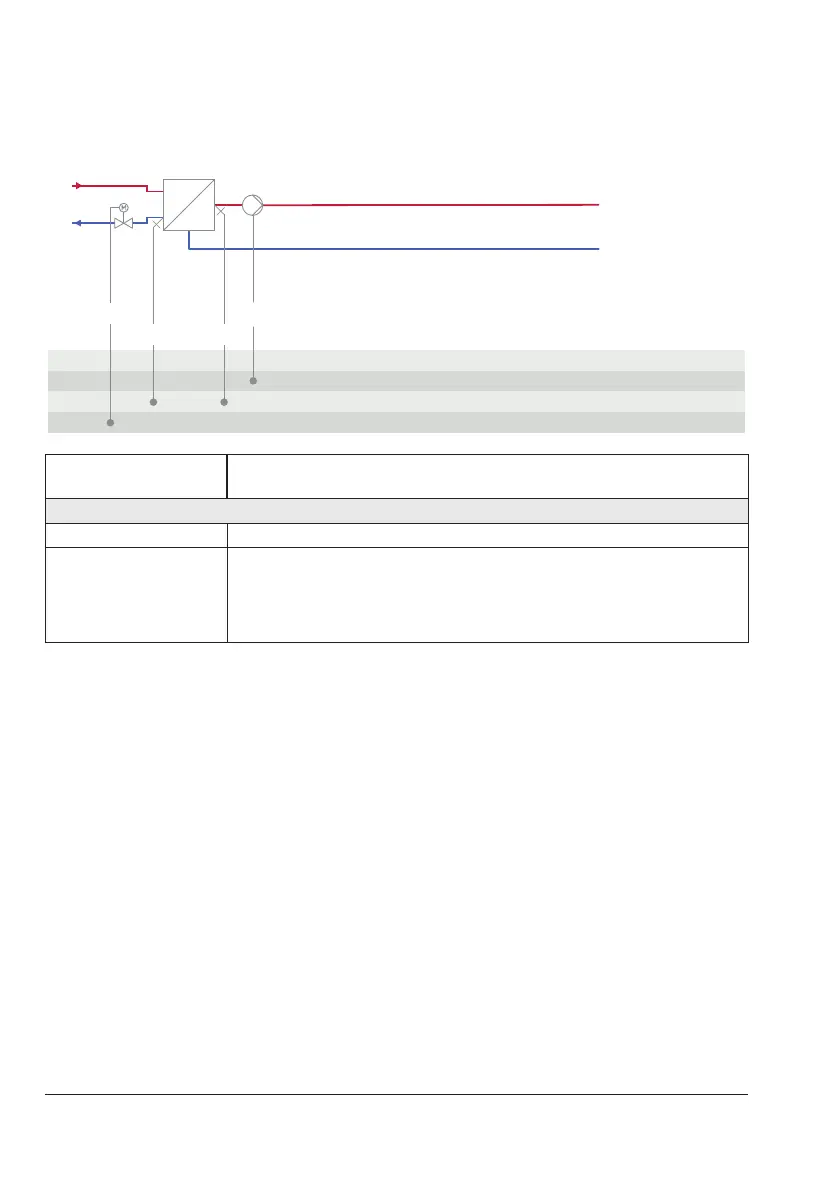

System Anl 3.5
BE
BA
AE
RK
RüF1 VF1
RK1 UP1
Note: Closed control circuit and UP1 are only active during the processing for an
external demand.
Default settings
CO1->F03 - 1 (with RüF1)
CO5'->F10
Functionofthe0to10Voutput:
− 1=ControlsignalRK1
− 6=Externaldemand
When
CO1->F18-1
