Samsung 2220WM - SyncMaster - 22" LCD Monitor

48
Sync
Type
Pin No.
Separate Sync-on-green
1Red Red
2 Green Green + H/V Sync
3
Blue Blue
4 NC NC
5 DDC Return(GND) DDC Return(GND)
6 GND-R GND-R
7 GND-G GND-G
8 GND-B GND-B
9
NC NC
10
Cable Detect Cable Detect
11
NC NC
12
Bi-Dr Data (SDA) Bi-Dr Data (SDA)
13
H-Sync Not Used
14
V-Sync Not Used
15
DDC Clock(SCL) DDC Clock(SCL)

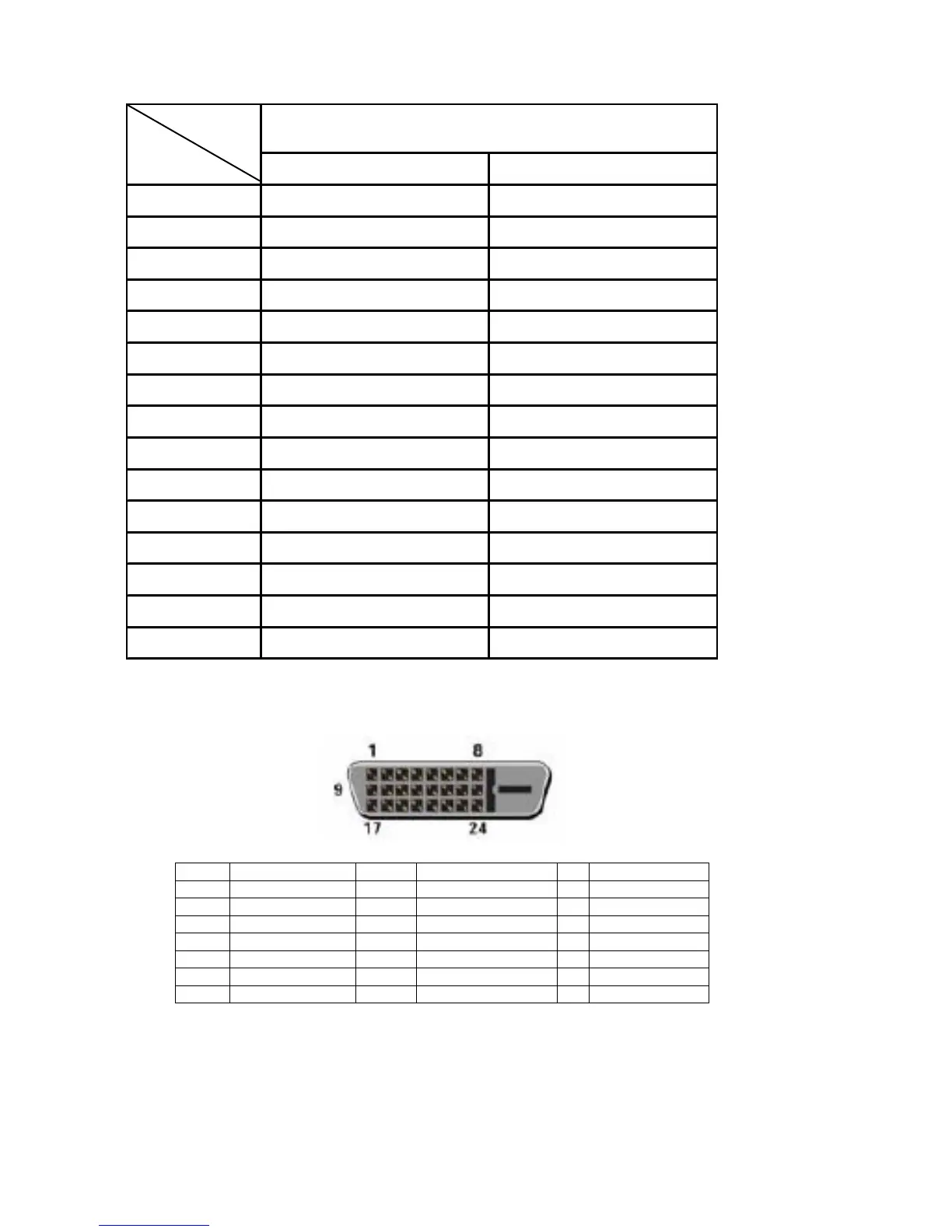

15-Pin D-Sub Signal Cable Connector
13-2 Pin Assignments
VGA
DVI-D
Pin Symbol Pin Symbol Pin Symbol
1 RX2- 9 RX1- 17 RX0-
2 RX2+ 10 Rx1+ 18 RX0+
3 GND 11 GND 19 GND
4 RX4- 12 RX3- 20 RX5-
5 RX4+ 13 RX3+ 21 RX5+
6 SCL 14 +5V Power 22 GND
7 SDA 15 GND 23 RXC+
