8
3 Alignments and Adjustments
This section of the service manual explains how to use the DDC Manager JIG.
This function is needed for AD board change and program memory (U105) change.
3-1 Required Equipment
The following equipment is necessary for adjusting the monitor:
- Computer with Windows 95, Windows 98, Windows 2000, Windows XP, or Windows NT.
3-2 Automatic Color Adjustment
To input video, use 16 gray or any pattern using black and white.
1. Select English for OSD language.
2. Press the (Enter/Source) key for 5 seconds.
3-3 DDC EDID Data Input
1. Input DDC EDID data when replacing AD PCB.
2. Receive/Download the proper DDC file for the model from HQ quality control

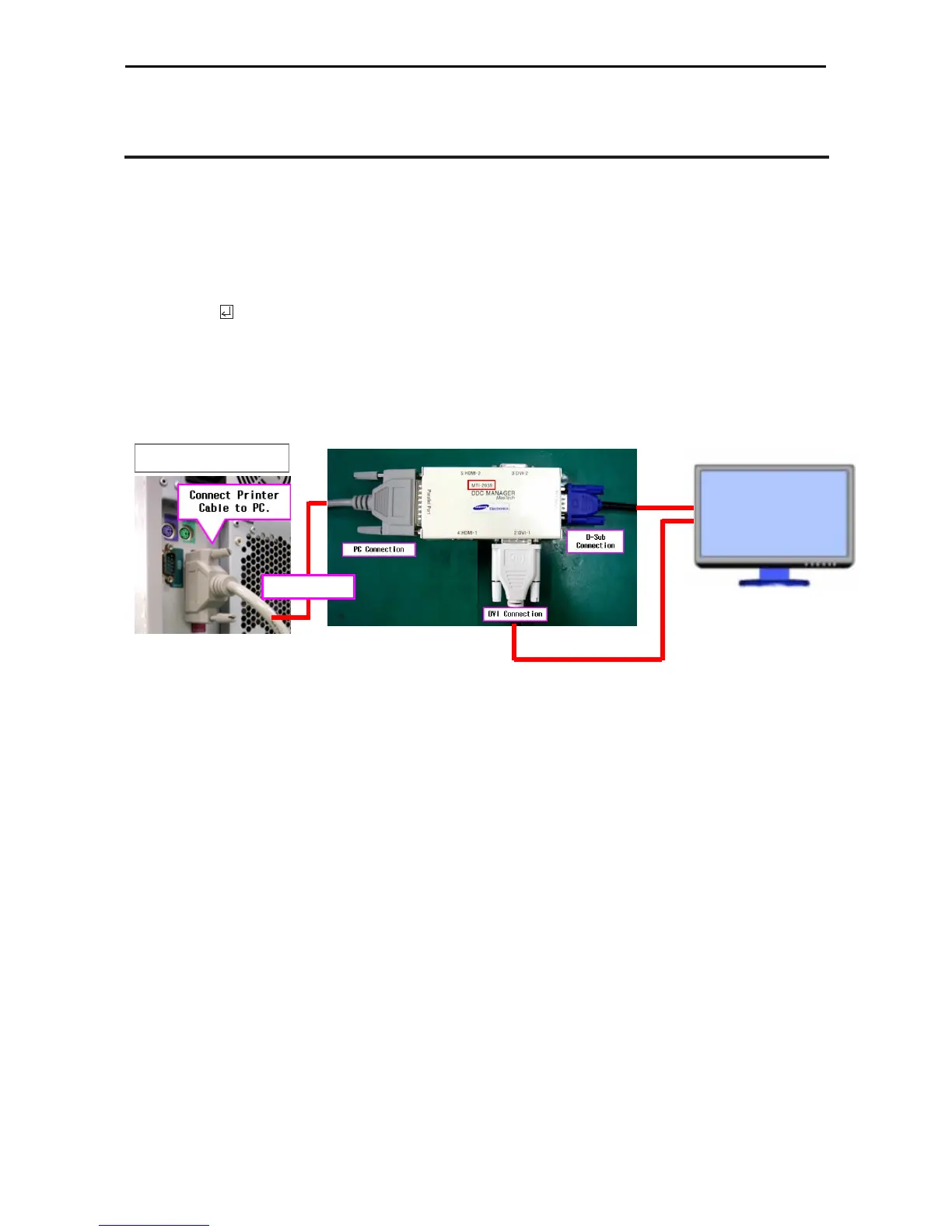

department. Install the below jig (Figure 1) and enter the data.
Figure 1.
PC
Parallel Cable
To Next Page
