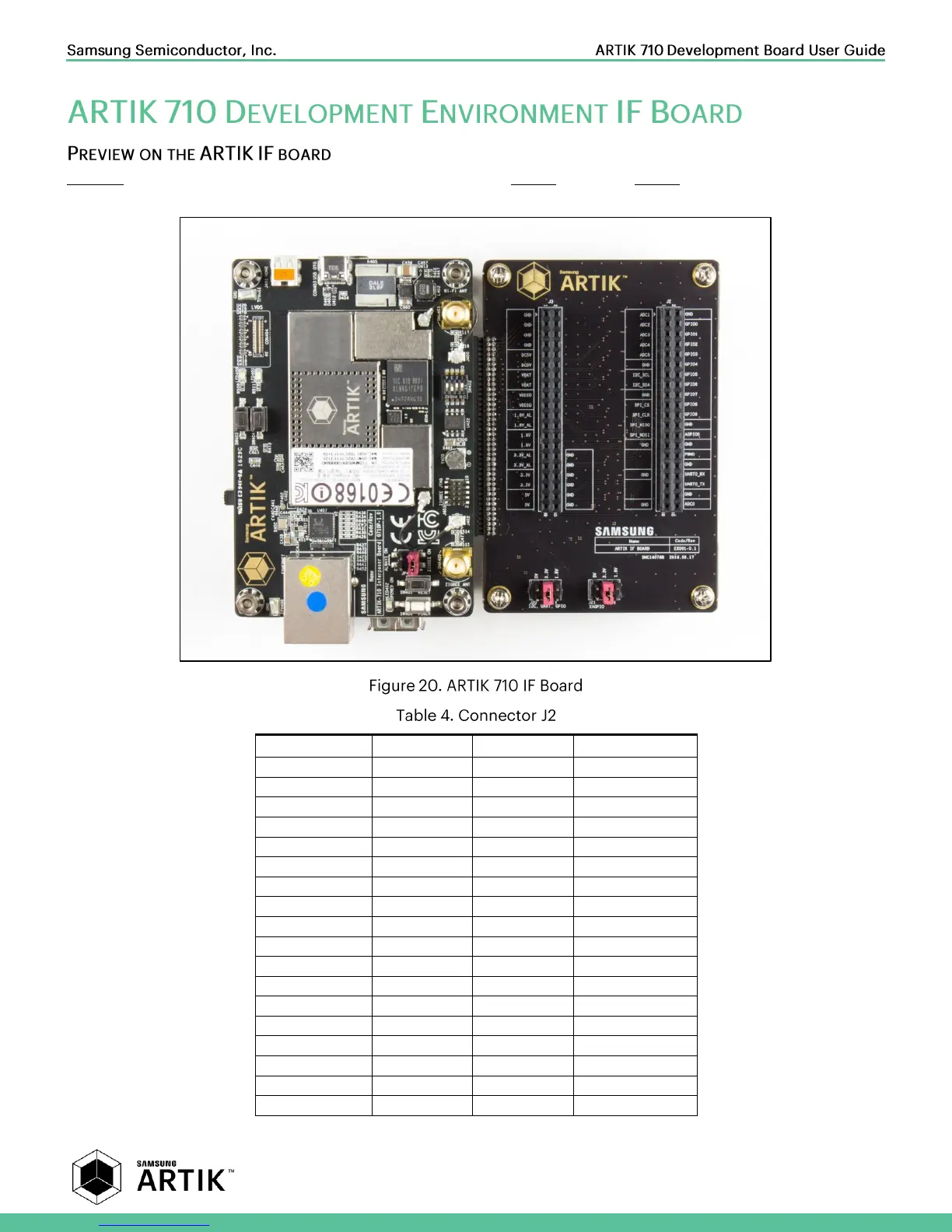

Figure 20 shows the highlights of the connector IF board. In addition Table 4 with J2 and Table 5 with J3 show the pinout of the
connectors with its meaning.
Pin Name
Pin Number
Pin Number
Pin Name
XADC1
1
2
GND
XADC2
3
4
ADD_XGPIO0
XADC3
5
6
ADD_XGPIO1
XADC4
7
8
ADD_XGPIO2
XADC5
9
10
ADD_XGPIO3
GND
11
12
ADD_XGPIO4
ADD_XI2C0_SCL
13
14
ADD_XGPIO5
ADD_XI2C0_SDA
15
16
ADD_XGPIO6
GND
17
18
ADD_XGPIO7
ADD_XSPI0_CS
19
20
ADD_XGPIO8
ADD_XSPI0_CLK
21
22
ADD_XGPIO9
ADD_XSPI0_MISO
23
24
GND
ADD_XSPI0_MOSI
25
26
ADD_XAGPIO0
GND
27
28
GND
NC
29
30
ADD_XPWM0_OUT
MICOM_GPIO1
31
32
GND
GND
33
34
ADD_XUART0_RX
NC
35
36
ADD_XUART0_TX
