45
ENGLISH

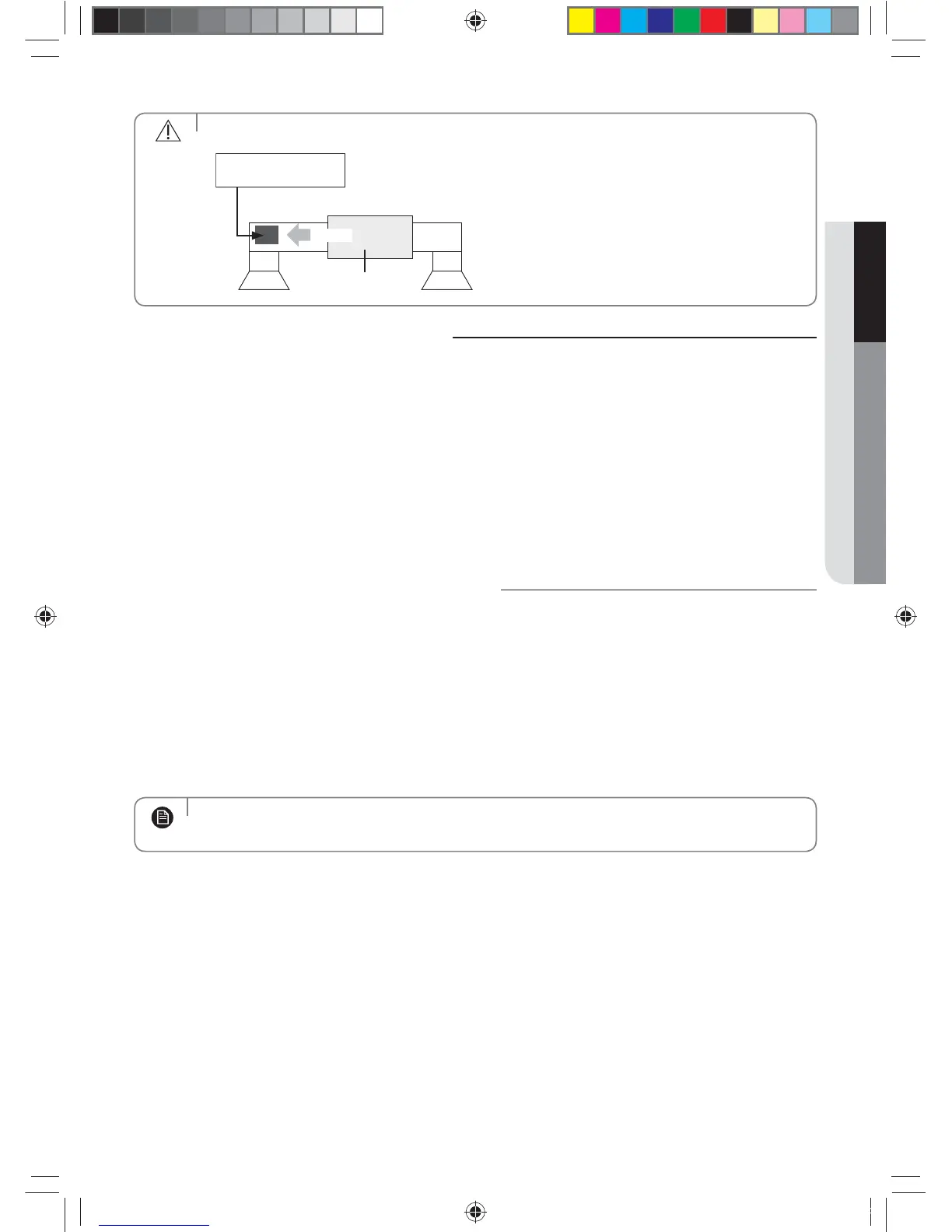

CAUTION
Do not install the electronic heater in the external supply duct connected to the AHU.
Air Flow
Suction side Discharge side
Indoor unit
Electronic heater should
not be installed.
Final Checks and User Tips
To complete the installation, perform the following checks and tests to ensure that the air conditioner operates correctly.
Check the followings.
t Strength of the installation site
t Tightness of pipe connection to detect a gas leak
t Electric wiring connections
t Heat-resistant insulation of the pipe
t Drainage
t Earth conductor connection
Providing information for user
After nishing the installation of the air conditioner, you should explain the following to the user. Refer to appropriate pages in the
User’s Manual.
1. How to start and stop the air conditioner
2. How to select the modes and functions
3. How to adjust the temperature and fan speed
4. How to set the timers
5. How to clean and replace the lters
NOTE
When you complete the installation successfully, hand over the this Installation Manual and the wired controller
installation and user manuals to the user for storage in a handy and safe place.
