Dimensions
5
BOTTOMs
TOP
LEFT SIDE RIGHT SIDEFRONT

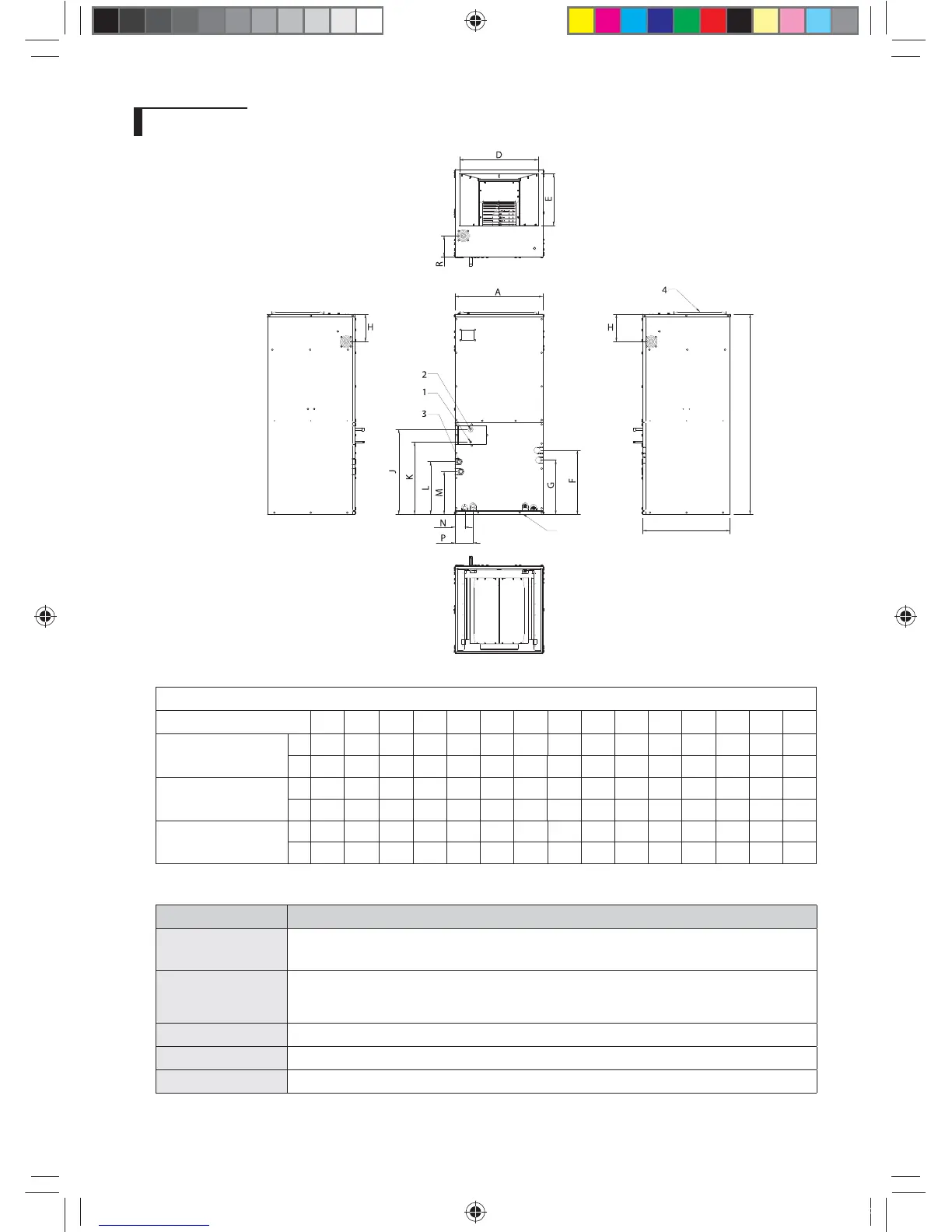

DIMENSIONAL DATA MULTI-POSITION AIR HANDLER
MODEL
ABCDEFGHJKLMN
PR
AC0 18/24 KNZDCH/AA
inch 17.50 43.00 21.00 15.50 12.50 13.50 11.00 6.75 16.75 14.00 11.00 8.50 2.00 4.00
2.00
mm 444.50 1092.20 533.40 393.70 317.50 342.90 279.40 171.45 425.45 355.60 279.40 215.90 50.80 101.60
50.80
AC0 30/36 KNZDCH/AA
inch 21.00 48.00 21.00 19.00 12.50 13.38 13.00 6.75 20.00 17.00 12.75 10.30 2.30 4.35
2.50
mm 533.40 1219.20 533.40 482.60 317.50 339.73 330.20 171.45 508.00 431.80 323.85 261.62 58.42 110.49
63.50
AC0 42/48/54 KNZDCH/AA
inch 24.50 58.75 21.75 19.50 16.25 19.75 17.25 6.75 26.00 23.00 16.75 14.35 2.30 4.35
2.00
mm 622.30 1492.25 552.45 495.30 412.75 501.65 438.15 171.45 660.40 584.20 425.45 364.49 58.42 110.49
50.80
NOTE: ALL DIMENSION ARE IN IN5CHES AND ARE APPROXIMATE. ALL DIMENSIONS ARE ROUNDED
No. Description
1
**018/024** : Φ1/4"(Φ6.35mm)
**030/036/042/048/054** : Φ3/8"(Φ9.52mm)
2
**018** : Φ1/2"(Φ12.7mm)
**024/030/036/042/048** : Φ5/8"(Φ15.88mm)
**054** : Φ3/4"(Φ19.05mm)
3
3/4" NPT(Φ19.05mm)
4
-
5 -
Unit : inch
