Samsung AC024KNZDCH/AA User Manual

3-2 Samsung Electronics

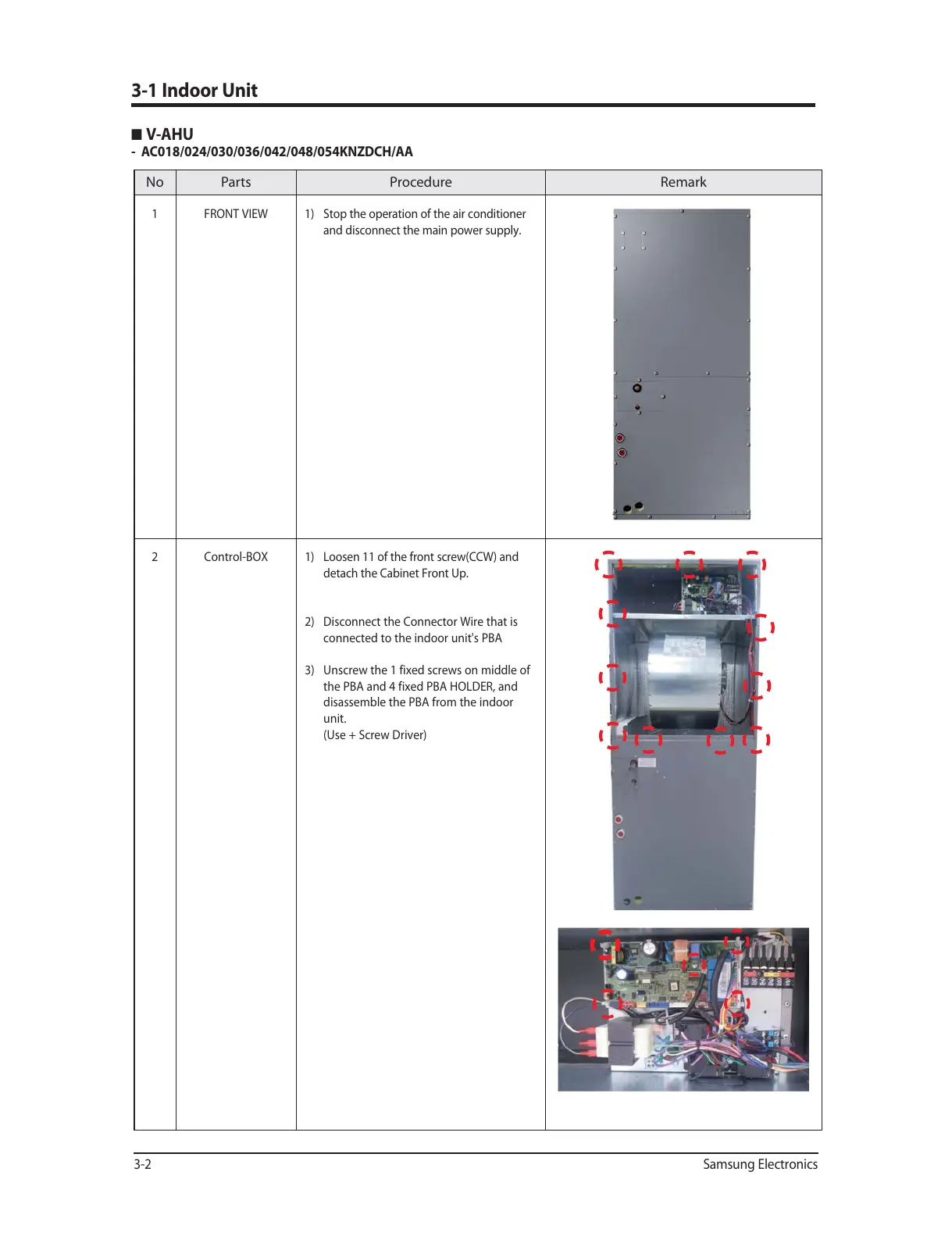

No Parts Procedure Remark
1 FRONT VIEW 1) Stop the operation of the air conditioner
and disconnect the main power supply.
2 Control-BOX 1) Loosen 11 of the front screw(CCW) and
detach the Cabinet Front Up.
2) Disconnect the Connector Wire that is
connected to the indoor unit's PBA
3) Unscrew the 1 fixed screws on middle of
the PBA and 4 fixed PBA HOLDER, and
disassemble the PBA from the indoor
unit.
(Use + Screw Driver)
3-1 Indoor Unit
QV-AHU
- AC018/024/030/036/042/048/054KNZDCH/AA
