Troubleshooting
Samsung Electronics 4-11

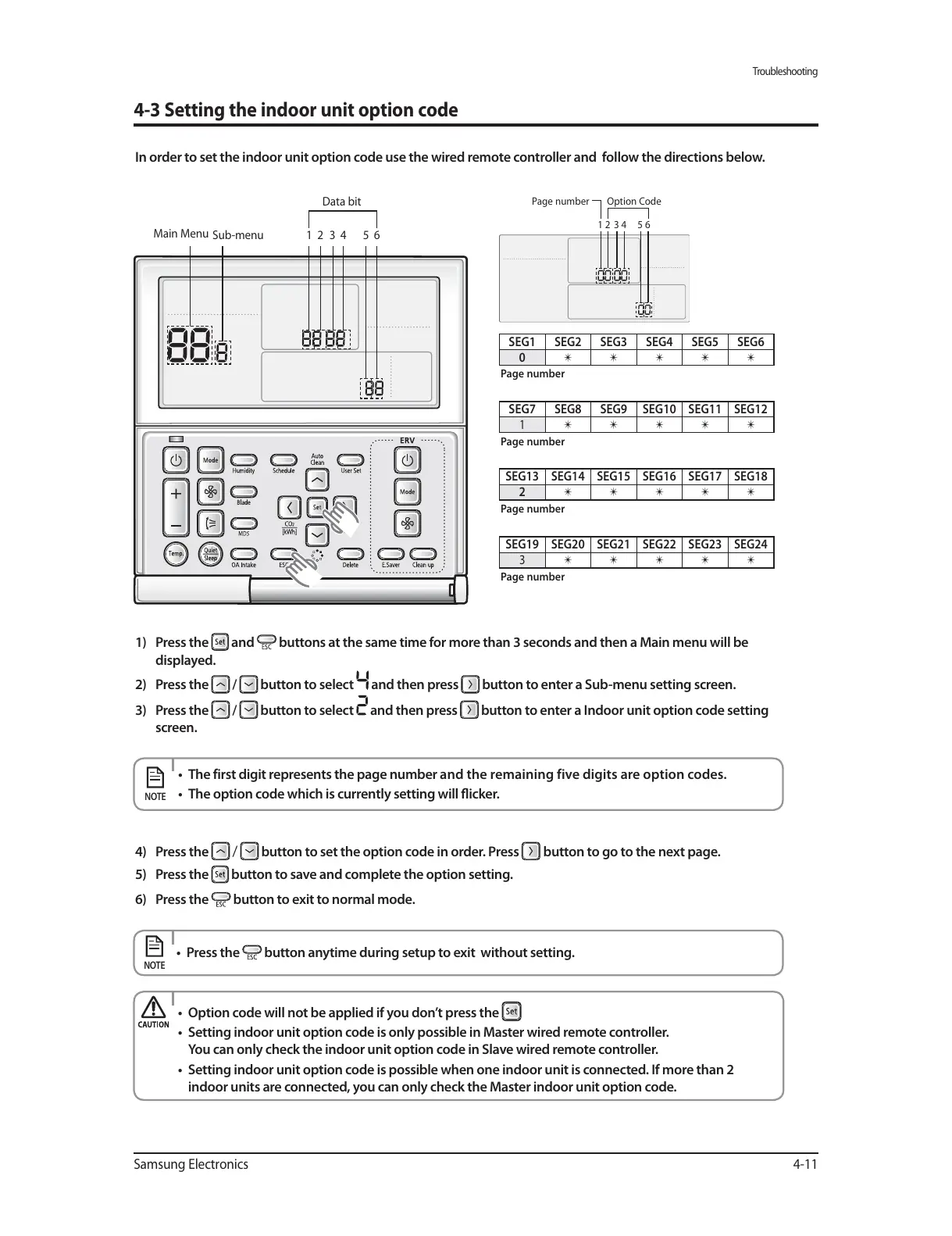

In order to set the indoor unit option code use the wired remote controller and follow the directions below.
1) Press the
and buttons at the same time for more than 3 seconds and then a Main menu will be
displayed.
2) Press the
/ button to select and then press button to enter a Sub-menu setting screen.
3) Press the
/ button to select and then press button to enter a Indoor unit option code setting
screen.
4) Press the
/
button to set the option code in order. Press button to go to the next page.
5) Press the
button to save and complete the option setting.
6) Press the
button to exit to normal mode.
t Option code will not be applied if you don’t press the
t Setting indoor unit option code is only possible in Master wired remote controller.
You can only check the indoor unit option code in Slave wired remote controller.
t Setting indoor unit option code is possible when one indoor unit is connected. If more than 2
indoor units are connected, you can only check the Master indoor unit option code.
t Press the
button anytime during setup to exit without setting.
NOTE
NOTE
t The first digit represents the page number and the remaining five digits are option codes.
t The option code which is currently setting will icker.
Main Menu
Sub-menu
123 546
Data bit
12 34 56
Option CodePage number
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
0
77777
Page number
SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
1
77777
Page number
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18
2
77777
Page number
SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
3
77777
Page number
4-3 Setting the indoor unit option code
To Next Page
