Samsung AC024KNZDCH/AA User Manual

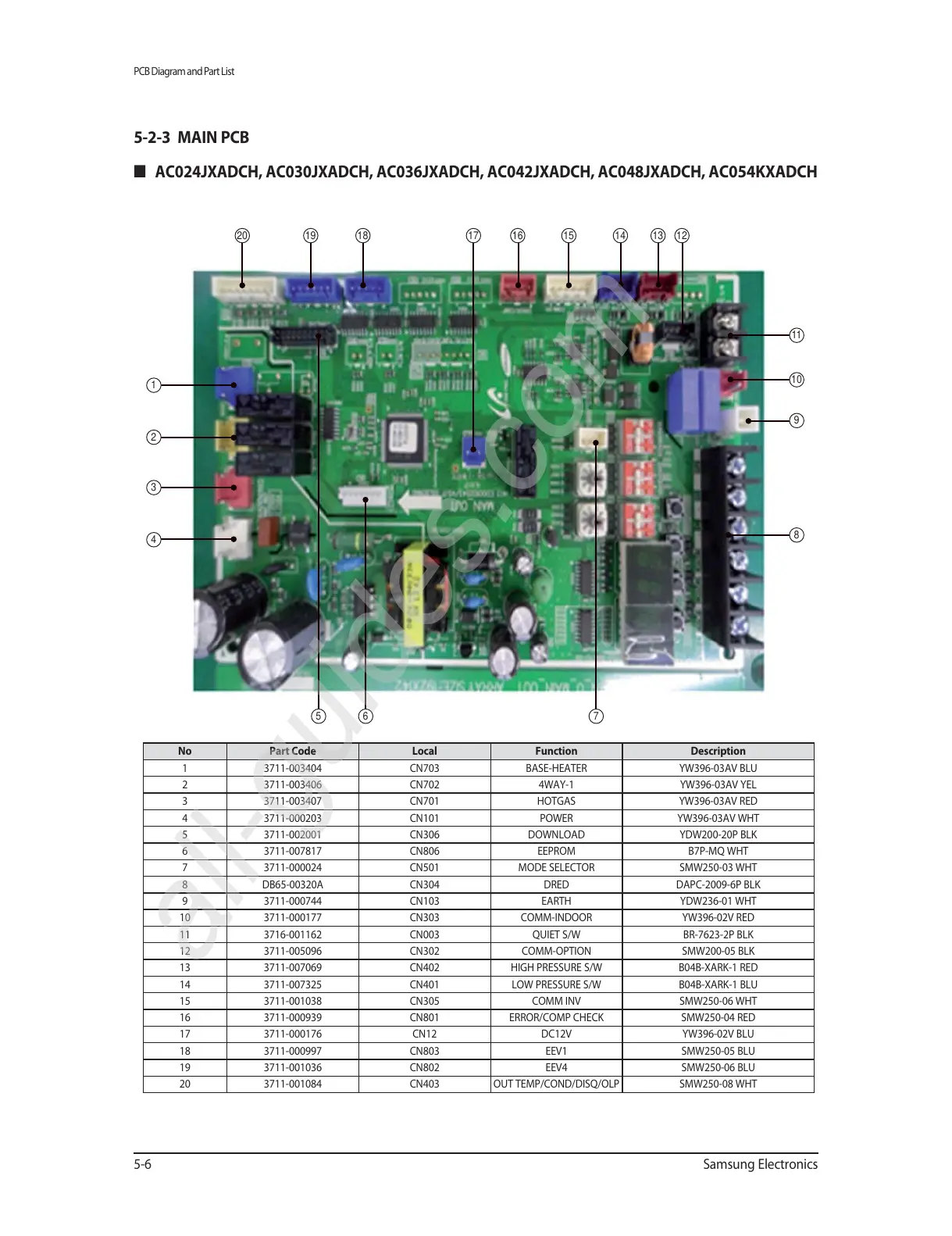

PCB Diagram and Part List
5-6 Samsung Electronics
20 19 18 17 16 15 1314 12
11
10
9
8
765
1
2
3
4
No Part Code Local Function Description
1 3711-003404 CN703 BASE-HEATER YW396-03AV BLU
2 3711-003406 CN702 4WAY-1 YW396-03AV YEL
3 3711-003407 CN701 HOTGAS YW396-03AV RED
4 3711-000203 CN101 POWER YW396-03AV WHT
5 3711-002001 CN306 DOWNLOAD YDW200-20P BLK
6 3711-007817 CN806 EEPROM B7P-MQ WHT
7 3711-000024 CN501 MODE SELECTOR SMW250-03 WHT
8 DB65-00320A CN304 DRED DAPC-2009-6P BLK
9 3711-000744 CN103 EARTH YDW236-01 WHT
10 3711-000177 CN303 COMM-INDOOR YW396-02V RED
11 3716-001162 CN003 QUIET S/W BR-7623-2P BLK
12 3711-005096 CN302 COMM-OPTION SMW200-05 BLK
13 3711-007069 CN402 HIGH PRESSURE S/W B04B-XARK-1 RED
14 3711-007325 CN401 LOW PRESSURE S/W B04B-XARK-1 BLU
15 3711-001038 CN305 COMM INV SMW250-06 WHT
16 3711-000939 CN801 ERROR/COMP CHECK SMW250-04 RED
17 3711-000176 CN12 DC12V YW396-02V BLU
18 3711-000997 CN803 EEV1 SMW250-05 BLU
19 3711-001036 CN802 EEV4 SMW250-06 BLU
20 3711-001084 CN403 OUT TEMP/COND/DISQ/OLP SMW250-08 WHT
5-2-3 MAIN PCB
QAC024JXADCH, AC030JXADCH, AC036JXADCH, AC042JXADCH, AC048JXADCH, AC054KXADCH
