Installing the unit

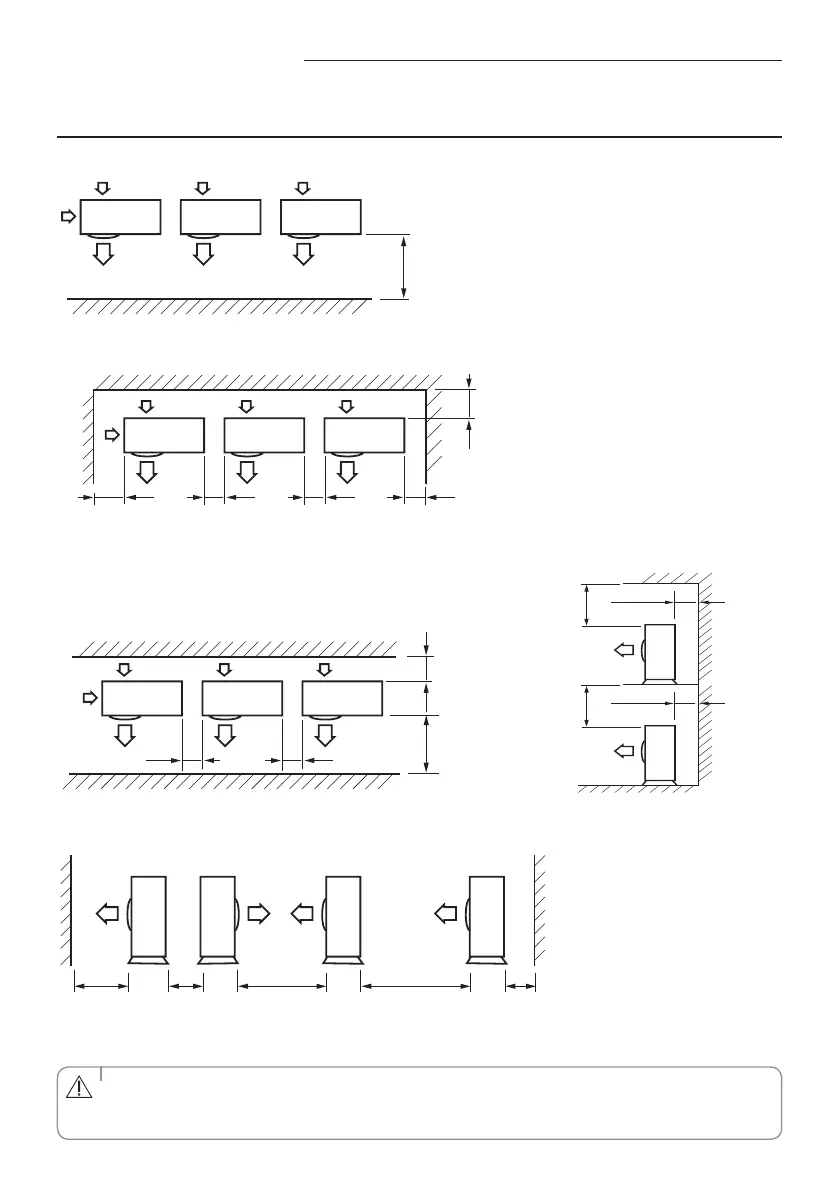

When installing more than 1 outdoor unit
(Unit : mm)
1500 or more
❋
When the air outlet is towards the wall
300 or more
300 or more 600 or more 600 or more 600 or more
❋
When 3 sides of the outdoor unit are blocked by the wall
300 or
more
1500 or more
600 or more
600 or more
500 or
more
500 or
more
300 or more
300 or more
❋
When front and rear side of the outdoor unit is towards the wall
❋
The upper part of the outdoor unit and the
air outlet is opposite the wall
1500 or more 600 or more 3000 or more 300 or more3000 or more
❋
When front and rear side of the outdoor unit is towards the wall
• The units must be installed according to distances declared, in order to permit accessibility from each side, either
to guarantee correct operation of maintenance or repairing products. The unit’s parts must be reachable and
removable completely under safety condition (for people or things).
