Samsung AM080MXMDGH Series User Manual

10 Samsung Electronics
Model
New Model
AM080FXMDGH
6
AM090FXMDGH
6
TYPE
Model
HP HP
Power
Ø,V,Hz
3/AC380~415/50 3/AC380~415/50
Capacity
Cooling
kW 22.4 24.1
Heating
kW 25.0 26.0
Power
RunningCurrent
Cooling 1)
A 9.66 11.65
Heating 2)
A 8.24 9.01
Max.
A 18.00 18.50
MCA A 18.00 18.50
MFA A 25 25
Power Input (normal)
Cooling 1)
kW 5.72 6.90
Heating 2)
kW 4.88 5.34
Max.
kW 11.25 11.81
Compressor
Model
- DS-GB052FAVADO*1 DS-GB052FAVADO*1
Output
kW 4.7 4.7
Lubricant
Type
- FVC68D FVC68D
Charging
L 1.7 1.7
Refrigerant
Type
- R-410A R-410A
Factory Charging
kg 3.7 3.7
Fan
Type
- Propeller + BLDC Propeller + BLDC
Motor Output
W 630 630
Airow rate
㎥
/
min
135 145
Safety Devices
Mechnanical
-
High Pressure Switch High Pressure Switch
- Crankcase Heater Crankcase Heater
- PCB Fuse PCB Fuse
Electronic
-
Overvoltage protection Overvoltage protection
- Current transformers Current transformers
-
Motor overheating /
Current transformers
Motor overheating / Cur-
rent transformers
Pipe
Piping connections
Liquid Ø,mm 9.52 9.52
Gas Ø,mm 19.05 19.05
Installation Limitation
Max.
Length
m 200 200
Max.
Height
m30 30
Cable
Main power
(Below/about 20m)
㎟
4(H07RN) 4(H07RN)
Communication
㎟
VCTF 0.75~1.5(2P) VCTF 0.75~1.5(2P)
Set Dimension
Net Weight kg 135 135
Shipping Weight kg 140 140
Net Dimension (WxHxD) mm 940x1420x330 940x1420x330
Gross Dimension (WxHxD) mm 995x1578x426 995x1578x426
Operating Temp
Range
Cooling
℃
-5 ~ 48 -5 ~ 48
Heating
℃
-20 ~ 24 -20 ~ 24

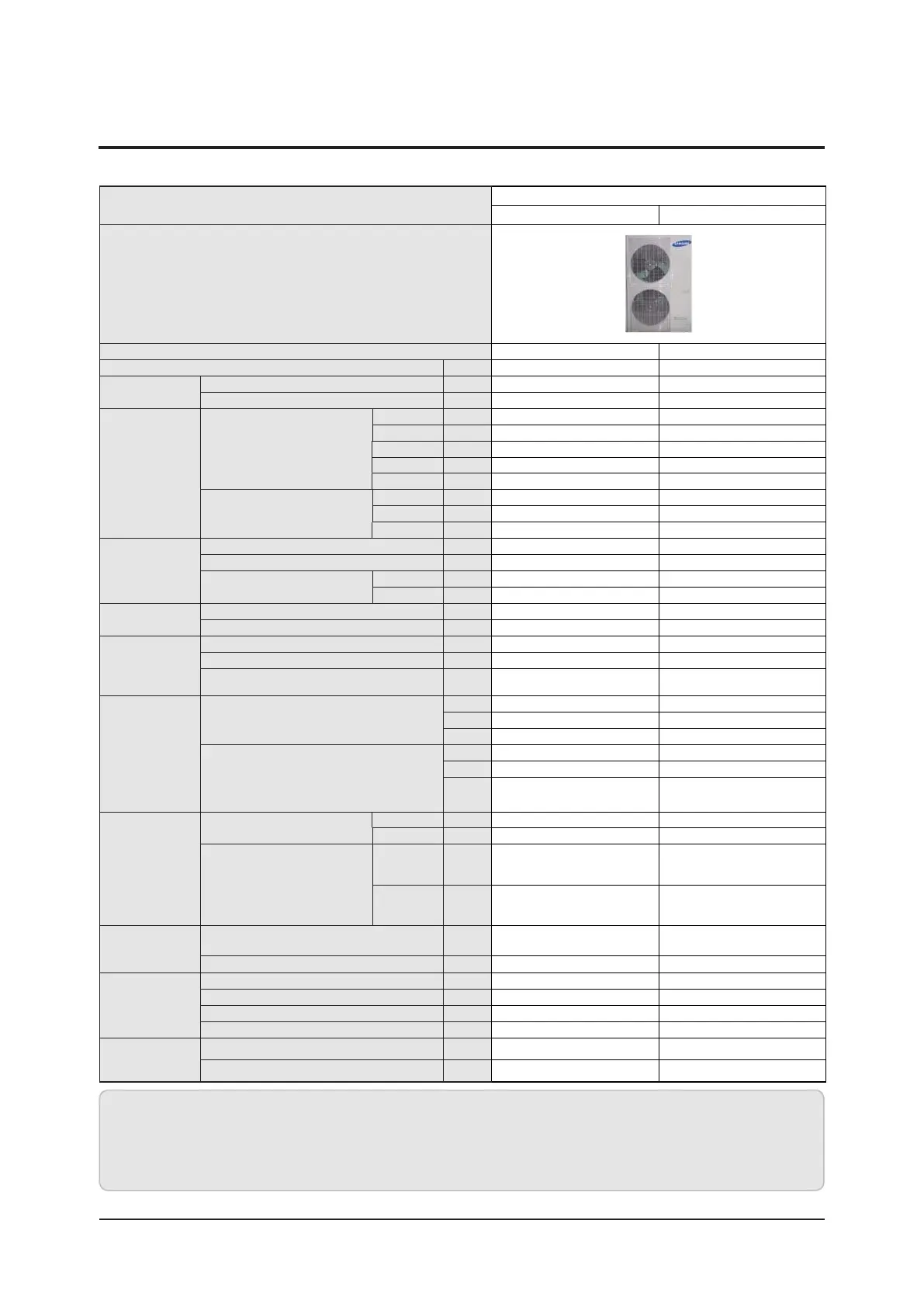

2-2 Product Specifications
2-2-1 Outdoor Unit
1. Proper form capacity standard of air conditioning
- Cooling capacity : It is figures that appear in indoor 27˚C DB/19°C WB, outdoor 35˚C DB, length 7.5m of piping, fall 0m standard.
- Heating capacity : It is figures that appear in indoor 20˚C DB, outdoor 7˚C DB, length 7.5m of piping, fall 0m standard.
2. If proper form heating capacity is outdoor temperature 7˚C standard and outdoor temperature goes down by below zero, heating capacity can drop according to temperature condition.
3. Need special load calculation in case of use by main heating in the winter, and please buy product for low temperature that heating effect excels at low temperature.
4. Maximum length between outdoor and indoor units allows up to 200m (Equivalent length 220m).
5. If the indoor unit is below, height length allows up to 110m (If over 50m, decide whether to install the PDM kit). If the outdoor unit is below, allowable height length is 40m.
