Disassembly and Reassembly
Samsung Electronics 3-11
No Parts Procedure Remark
1 PANEL
&
FILTER

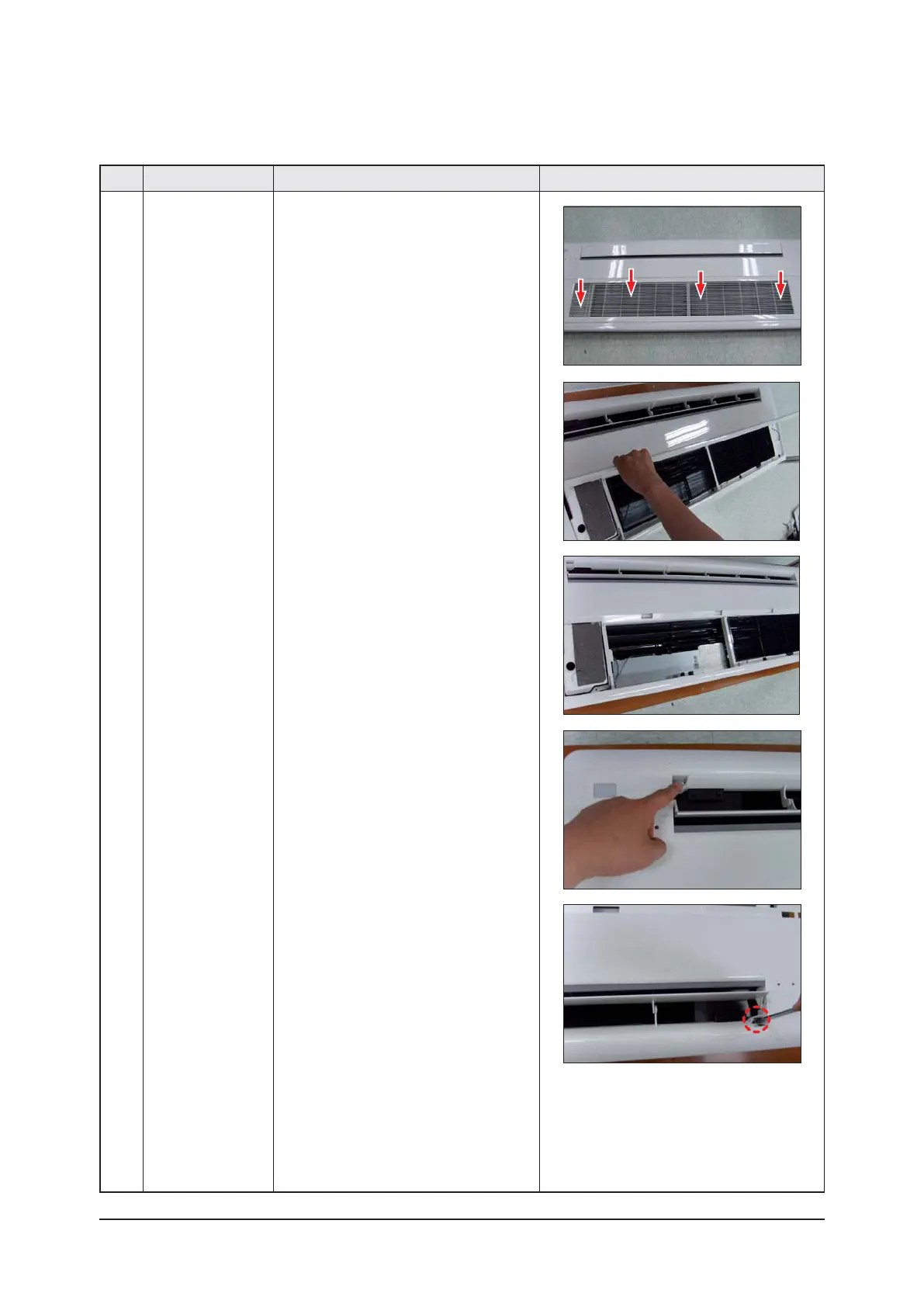

1) Press the PUSH BUTTON and open the GRILL.
2) First, remove the clip from the PANEL.
And then incline the GRILLE by 90˚ and sepa-
rate the GRILLE from the PANEL.
3) Separate the FILTER from the PANEL.
4) Remove the 4 COVER SCREW.
5) Remove the 7 screws fixed in PANEL and then
separate from the indoor unit.
(Use +Screw Driver)
QSlim 1 way cassette type (large)
To Next Page
