4

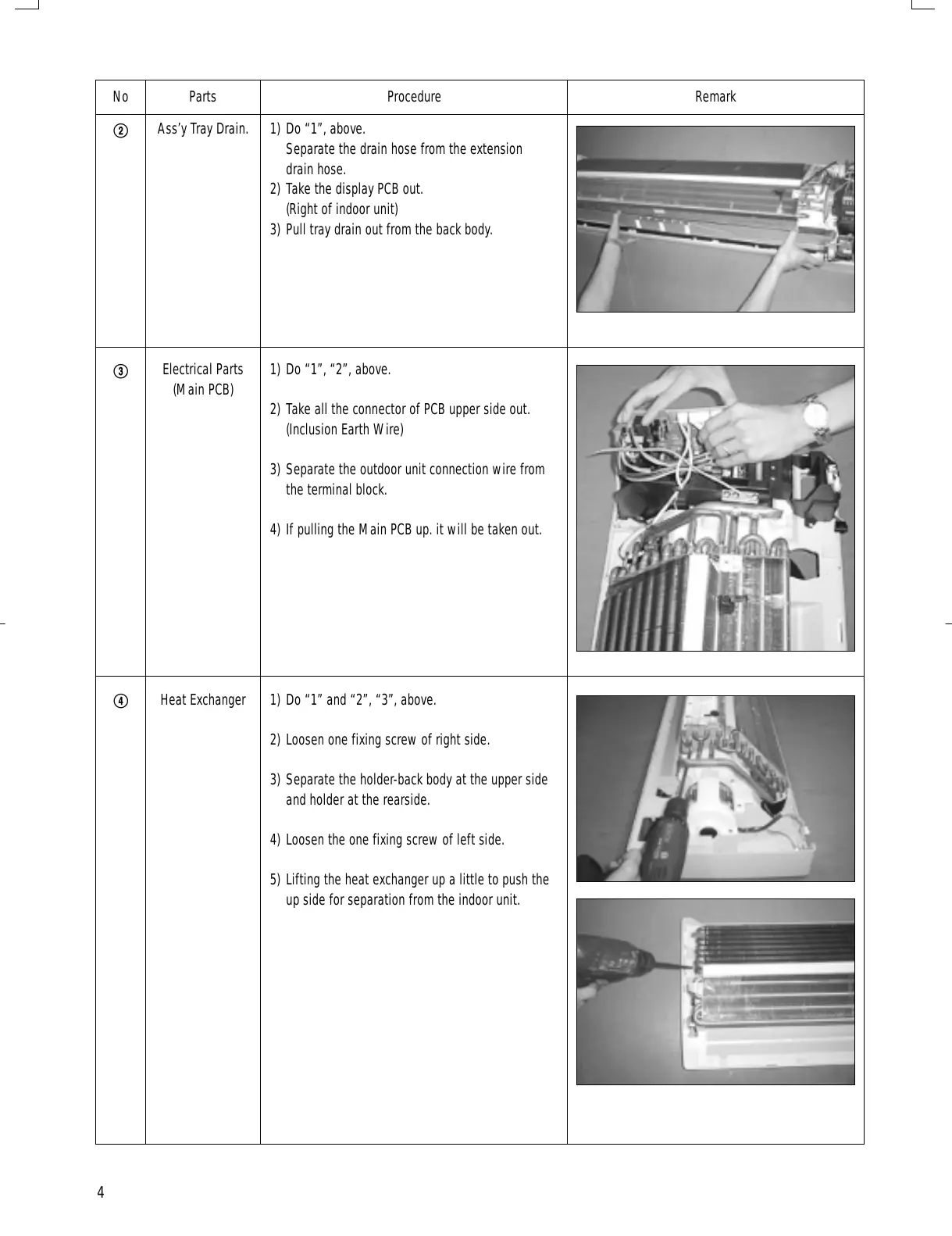

No Parts Procedure Remark
Ass’y Tray Drain.
Electrical Parts
(Main PCB)
Heat Exchanger
@
#
$
1) Do “1”, above.
Separate the drain hose from the extension
drain hose.
2) Take the display PCB out.
(Right of indoor unit)
3) Pull tray drain out from the back body.
1) Do “1”, “2”, above.
2) Take all the connector of PCB upper side out.
(Inclusion Earth Wire)
3) Separate the outdoor unit connection wire from
the terminal block.
4) If pulling the Main PCB up. it will be taken out.
1) Do “1” and “2”, “3”, above.
2) Loosen one fixing screw of right side.
3) Separate the holder-back body at the upper side
and holder at the rearside.
4) Loosen the one fixing screw of left side.
5) Lifting the heat exchanger up a little to push the
up side for separation from the indoor unit.
DB98-05109A(1)-1 3/11/02 12:45 PM Page 4
