Samsung AQ30C2BC User Manual

5

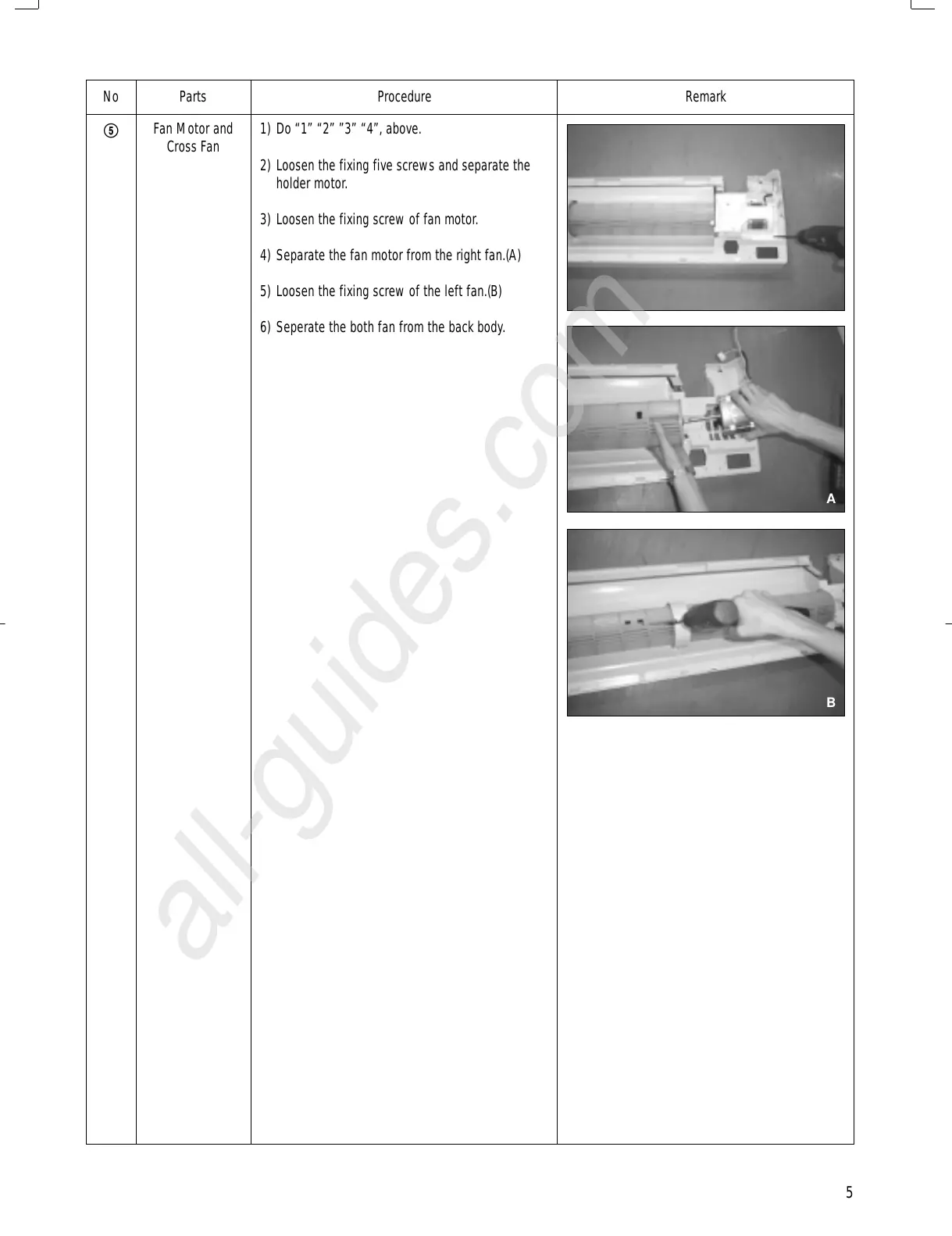

No Parts Procedure Remark
Fan Motor and
Cross Fan
%
1) Do “1” “2” ”3” “4”, above.
2) Loosen the fixing five screws and separate the
holder motor.
3) Loosen the fixing screw of fan motor.
4) Separate the fan motor from the right fan.(A)
5) Loosen the fixing screw of the left fan.(B)
6) Seperate the both fan from the back body.
A
B
DB98-05109A(1)-1 3/11/02 12:45 PM Page 5
