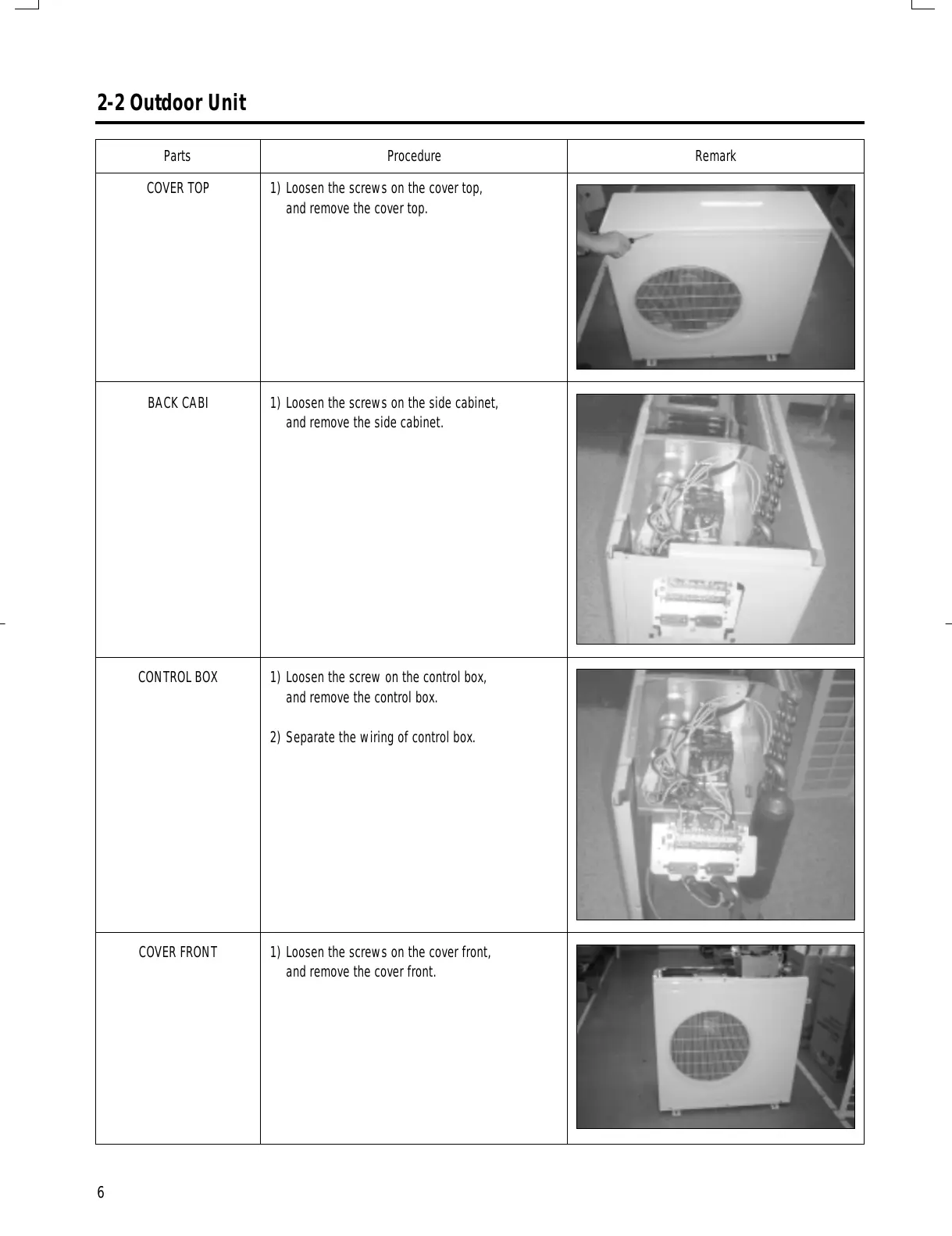

2-2 Outdoor Unit
Parts Procedure Remark
COVER TOP
BACK CABI
CONTROL BOX
COVER FRONT
1) Loosen the screws on the cover top,
and remove the cover top.
1) Loosen the screws on the side cabinet,
and remove the side cabinet.
1) Loosen the screw on the control box,
and remove the control box.
2) Separate the wiring of control box.
1) Loosen the screws on the cover front,
and remove the cover front.
