Samsung AQV09NSBX User Manual

Samsung Electronics

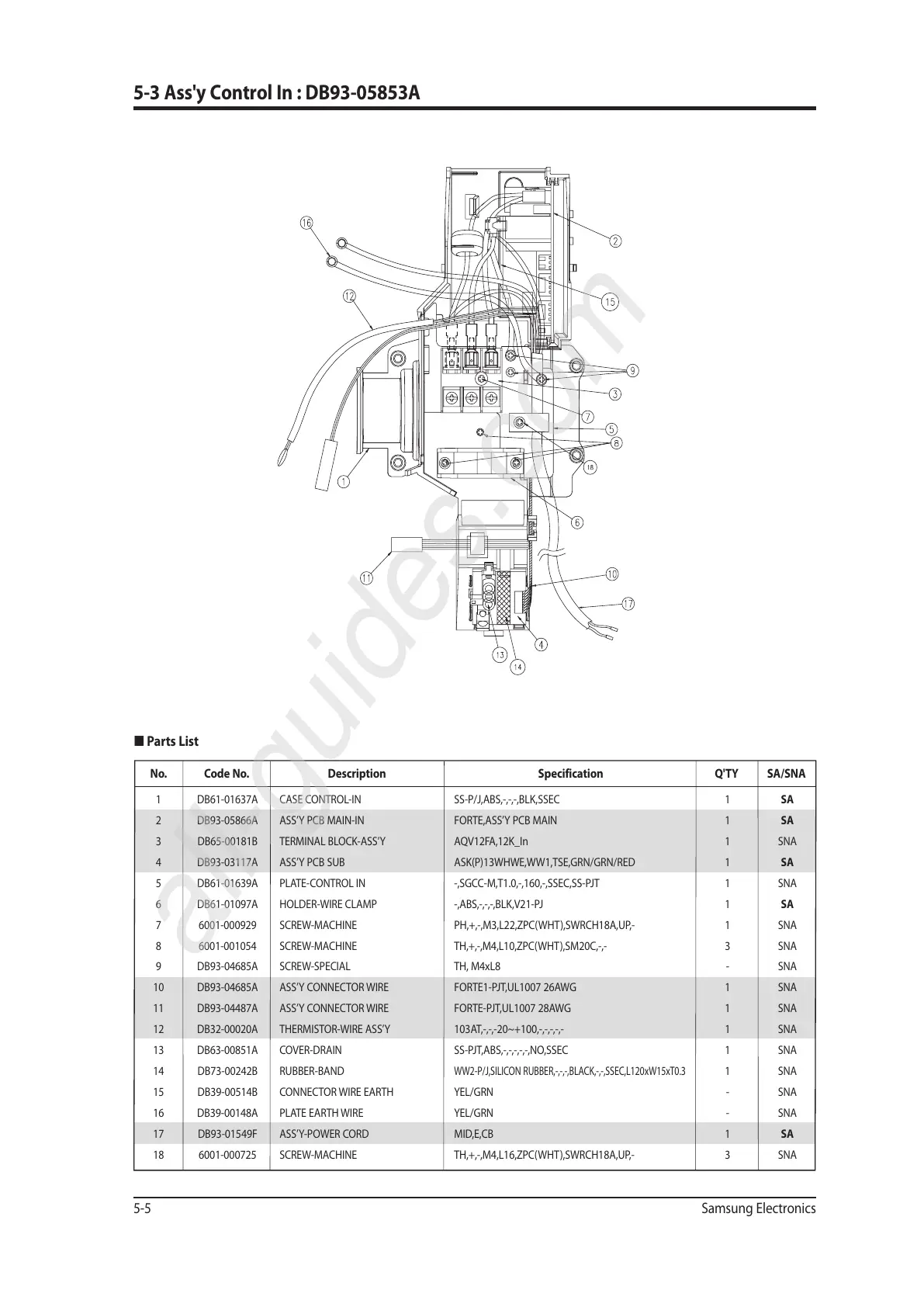

5-3 Ass'y Control In : DB93-05853A
5-5
 Parts List
1 DB61-01637A CASE CONTROL-IN SS-P/J,ABS,-,-,-,BLK,SSEC 1 SA
2 DB93-05866A ASS’Y PCB MAIN-IN FORTE,ASS’Y PCB MAIN 1 SA
3 DB65-00181B TERMINAL BLOCK-ASS’Y AQV12FA,12K_In 1 SNA
4 DB93-03117A ASS’Y PCB SUB ASK(P)13WHWE,WW1,TSE,GRN/GRN/RED 1 SA
5 DB61-01639A PLATE-CONTROL IN -,SGCC-M,T1.0,-,160,-,SSEC,SS-PJT 1 SNA
6 DB61-01097A HOLDER-WIRE CLAMP -,ABS,-,-,-,BLK,V21-PJ 1 SA
7 6001-000929 SCREW-MACHINE PH,+,-,M3,L22,ZPC(WHT),SWRCH18A,UP,- 1 SNA
8 6001-001054 SCREW-MACHINE TH,+,-,M4,L10,ZPC(WHT),SM20C,-,- 3 SNA
9 DB93-04685A SCREW-SPECIAL TH, M4xL8 - SNA
10 DB93-04685A ASS’Y CONNECTOR WIRE FORTE1-PJT,UL1007 26AWG 1 SNA
11 DB93-04487A ASS’Y CONNECTOR WIRE FORTE-PJT,UL1007 28AWG 1 SNA
12 DB32-00020A THERMISTOR-WIRE ASS’Y 103AT,-,-,-20~+100,-,-,-,-,- 1 SNA
13 DB63-00851A COVER-DRAIN SS-PJT,ABS,-,-,-,-,-,NO,SSEC 1 SNA
14 DB73-00242B RUBBER-BAND
WW2-P/J,SILICON RUBBER,-,-,-,BLACK,-,-,SSEC,L120xW15xT0.3 1 SNA
15 DB39-00514B CONNECTOR WIRE EARTH YEL/GRN - SNA
16 DB39-00148A PLATE EARTH WIRE YEL/GRN - SNA
17 DB93-01549F ASS’Y-POWER CORD MID,E,CB 1 SA
18 6001-000725 SCREW-MACHINE TH,+,-,M4,L16,ZPC(WHT),SWRCH18A,UP,- 3 SNA
Code No.No. SA/SNADescription Specification
Q'TY
All manuals and user guides at all-guides.com
all-guides.com

Samsung AQV09NSBX Specifications

General

Cooling Capacity	9000 BTU/h
Power Supply	220-240V, 50Hz
Noise Level (Outdoor)	48 dB(A)
Refrigerant	R410A
Type	Split Air Conditioner
Coefficient of Performance (COP)	3.61
Operation Range (Cooling)	18°C ~ 43°C
Energy Efficiency Ratio (EER)	3.21 W/W
