Samsung Electronics

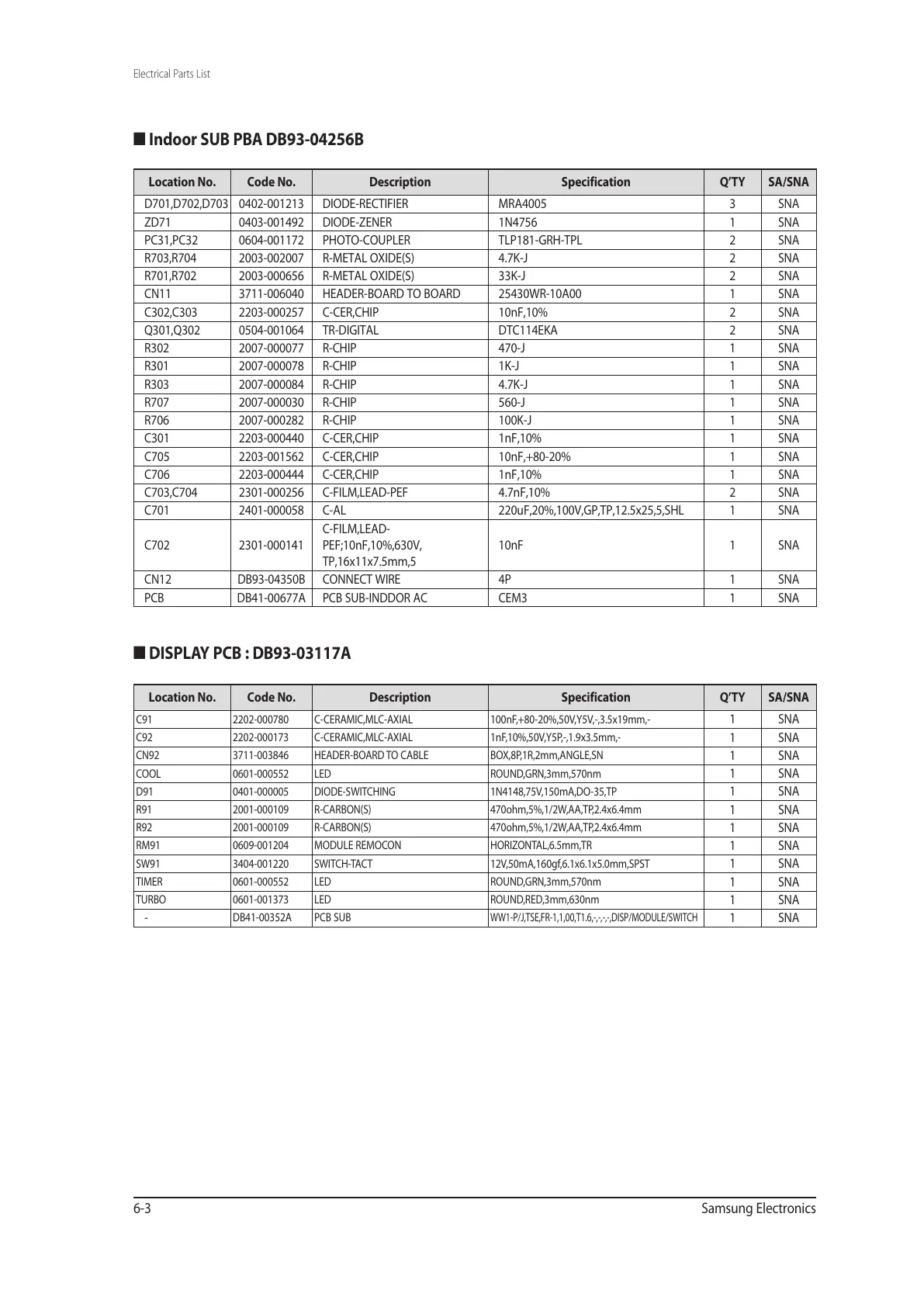

Electrical Parts List
6-3
Indoor SUB PBA DB93-04256B
Location No. Code No. Description Specification Q’TY SA/SNA
D701,D702,D703 0402-001213 DIODE-RECTIFIER MRA4005
3 SNA
ZD71 0403-001492 DIODE-ZENER 1N4756
1 SNA
PC31,PC32 0604-001172 PHOTO-COUPLER TLP181-GRH-TPL 2 SNA
R703,R704 2003-002007 R-METAL OXIDE(S) 4.7K-J 2 SNA
R701,R702 2003-000656 R-METAL OXIDE(S) 33K-J
2 SNA
CN11 3711-006040 HEADER-BOARD TO BOARD 25430WR-10A00 1 SNA
C302,C303 2203-000257 C-CER,CHIP 10nF,10% 2 SNA
Q301,Q302 0504-001064 TR-DIGITAL DTC114EKA
2 SNA
R302 2007-000077 R-CHIP 470-J 1 SNA
R301 2007-000078 R-CHIP 1K-J 1 SNA
R303 2007-000084 R-CHIP 4.7K-J
1 SNA
R707 2007-000030 R-CHIP 560-J 1 SNA
R706 2007-000282 R-CHIP 100K-J 1 SNA
C301 2203-000440 C-CER,CHIP 1nF,10%
1 SNA
C705 2203-001562 C-CER,CHIP 10nF,+80-20% 1 SNA
C706 2203-000444 C-CER,CHIP 1nF,10% 1 SNA
C703,C704 2301-000256 C-FILM,LEAD-PEF 4.7nF,10%
2 SNA
C701 2401-000058 C-AL 220uF,20%,100V,GP,TP,12.5x25,5,SHL 1 SNA
C702 2301-000141
C-FILM,LEAD-
PEF;10nF,10%,630V,
TP,16x11x7.5mm,5
10nF
1 SNA
CN12 DB93-04350B CONNECT WIRE 4P
1 SNA
PCB DB41-00677A PCB SUB-INDDOR AC CEM3 1 SNA
DISPLAY PCB : DB93-03117A
Location No. Code No. Description Specification Q’TY SA/SNA
C91 2202-000780 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,-,3.5x19mm,-
1 SNA
C92 2202-000173 C-CERAMIC,MLC-AXIAL 1nF,10%,50V,Y5P,-,1.9x3.5mm,-
1 SNA
CN92 3711-003846 HEADER-BOARD TO CABLE BOX,8P,1R,2mm,ANGLE,SN
1 SNA
COOL 0601-000552 LED ROUND,GRN,3mm,570nm
1 SNA
D91 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,TP
1 SNA
R91 2001-000109 R-CARBON(S) 470ohm,5%,1/2W,AA,TP,2.4x6.4mm
1 SNA
R92 2001-000109 R-CARBON(S) 470ohm,5%,1/2W,AA,TP,2.4x6.4mm
1 SNA
RM91 0609-001204 MODULE REMOCON HORIZONTAL,6.5mm,TR
1 SNA
SW91 3404-001220 SWITCH-TACT 12V,50mA,160gf,6.1x6.1x5.0mm,SPST
1 SNA
TIMER 0601-000552 LED ROUND,GRN,3mm,570nm
1 SNA
TURBO 0601-001373 LED ROUND,RED,3mm,630nm
1 SNA
-
DB41-00352A PCB SUB
WW1-P/J,TSE,FR-1,1,00,T1.6,-,-,-,-,DISP/MODULE/SWITCH
1 SNA
To Next Page
