Samsung Electronics

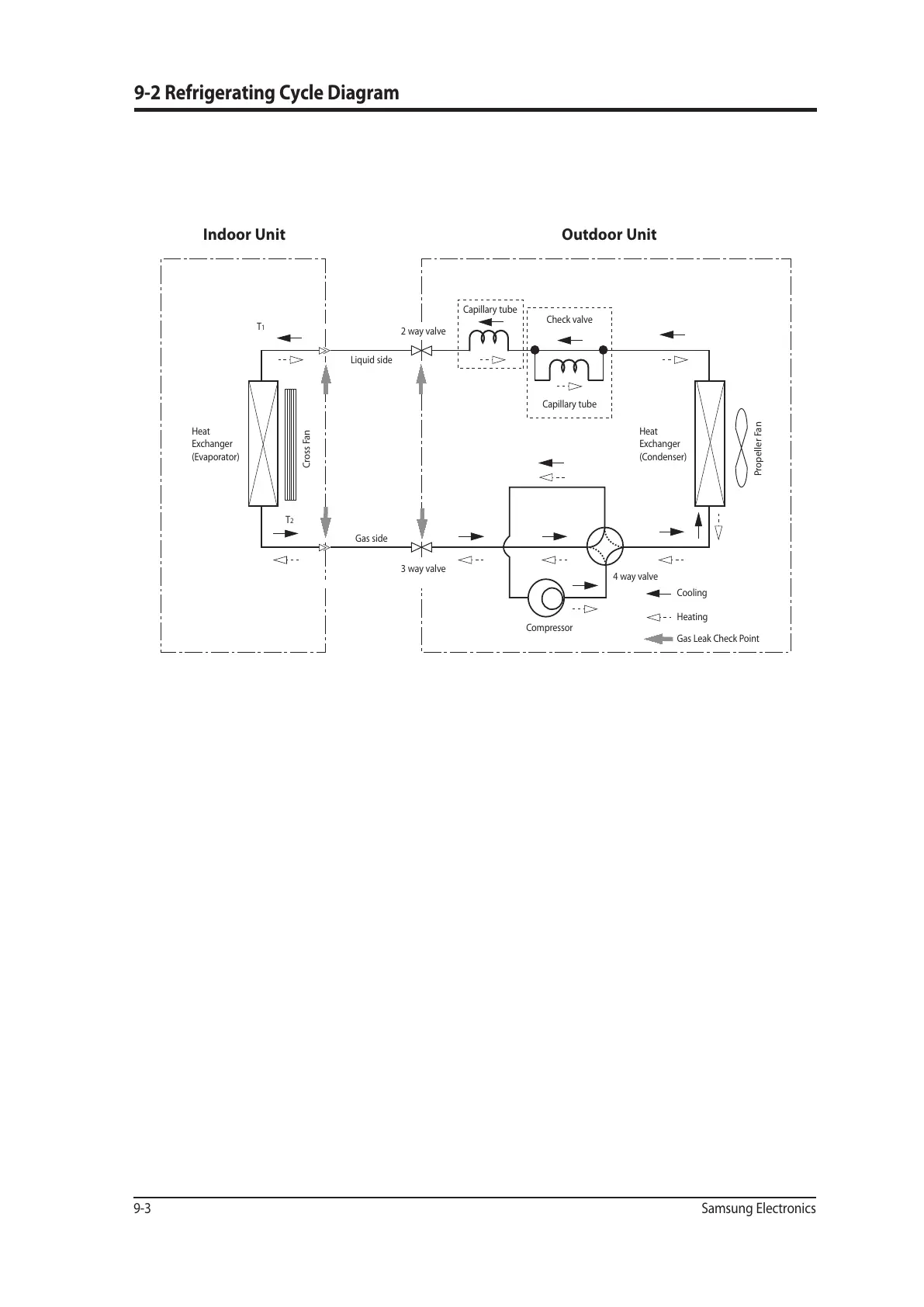

9-2 Refrigerating Cycle Diagram
9-3
Heat
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
Propeller Fan
Cross Fan
2 way valve
Capillary tube
3 way valve
4 way valve
Gas side
Liquid side
Compressor
Indoor Unit Outdoor Unit
Cooling
Heating
Gas Leak Check Point
Check valve
Capillary tube
T2
T1
All manuals and user guides at all-guides.com

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Samsung AQV09NSBX and is the answer not in the manual?

Samsung AQV09NSBX Specifications

General IconGeneral
Cooling Capacity9000 BTU/h
Power Supply220-240V, 50Hz
Noise Level (Outdoor)48 dB(A)
RefrigerantR410A
TypeSplit Air Conditioner
Coefficient of Performance (COP)3.61
Operation Range (Cooling)18°C ~ 43°C
Energy Efficiency Ratio (EER)3.21 W/W
