No. Parts Procedure Remark

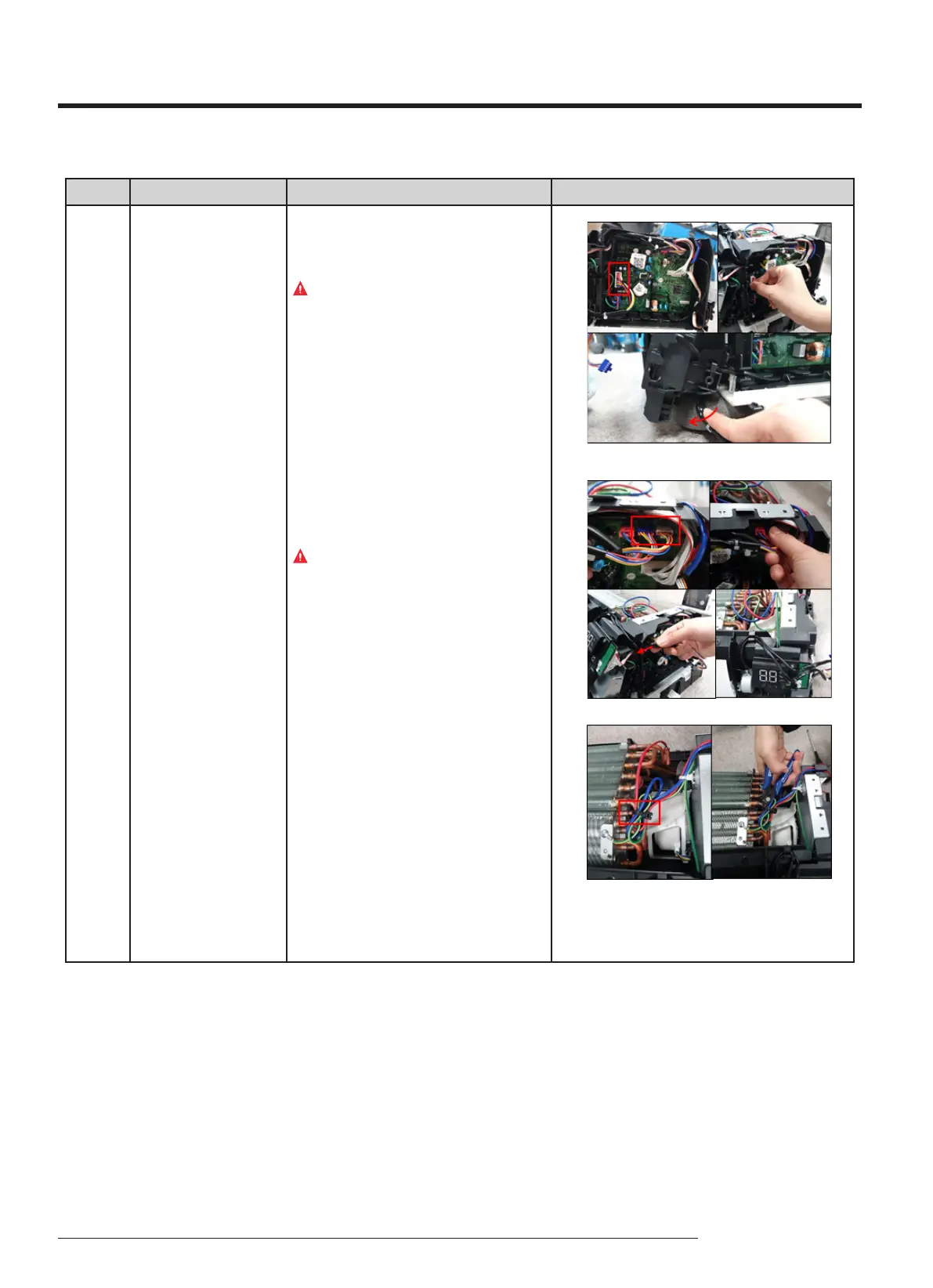

CONTROL-IN 12)Separate Fan Motor wire as shown in
gures.
Caution:
When you separate the connector, pull
pressing the locking button.
13)Separate Blade Motor wire as shown
in gures.
Caution:
When you separate the connector, pull
pressing the locking button.
14)Cut off the Cable Tie tied up wires.
