10-2-11 Compressor wire missing error/rotation error
Indoor display
7 SEG DISPLAY DESCRIPTION
C467 Compressor wire missing errorr/rotation error
Outdoor display
Compressor wire missing errorr/rotation error
: LAMP ON : LAMP OFF : LAMP BLINK
1. Checklist :
1) Is the connection of cable for the compressor?
2) Is the compressor wire is connected clockwise? U(RED)-V(BLU)-W(YEL)
3) Is the interphase resistance of compressor normal?

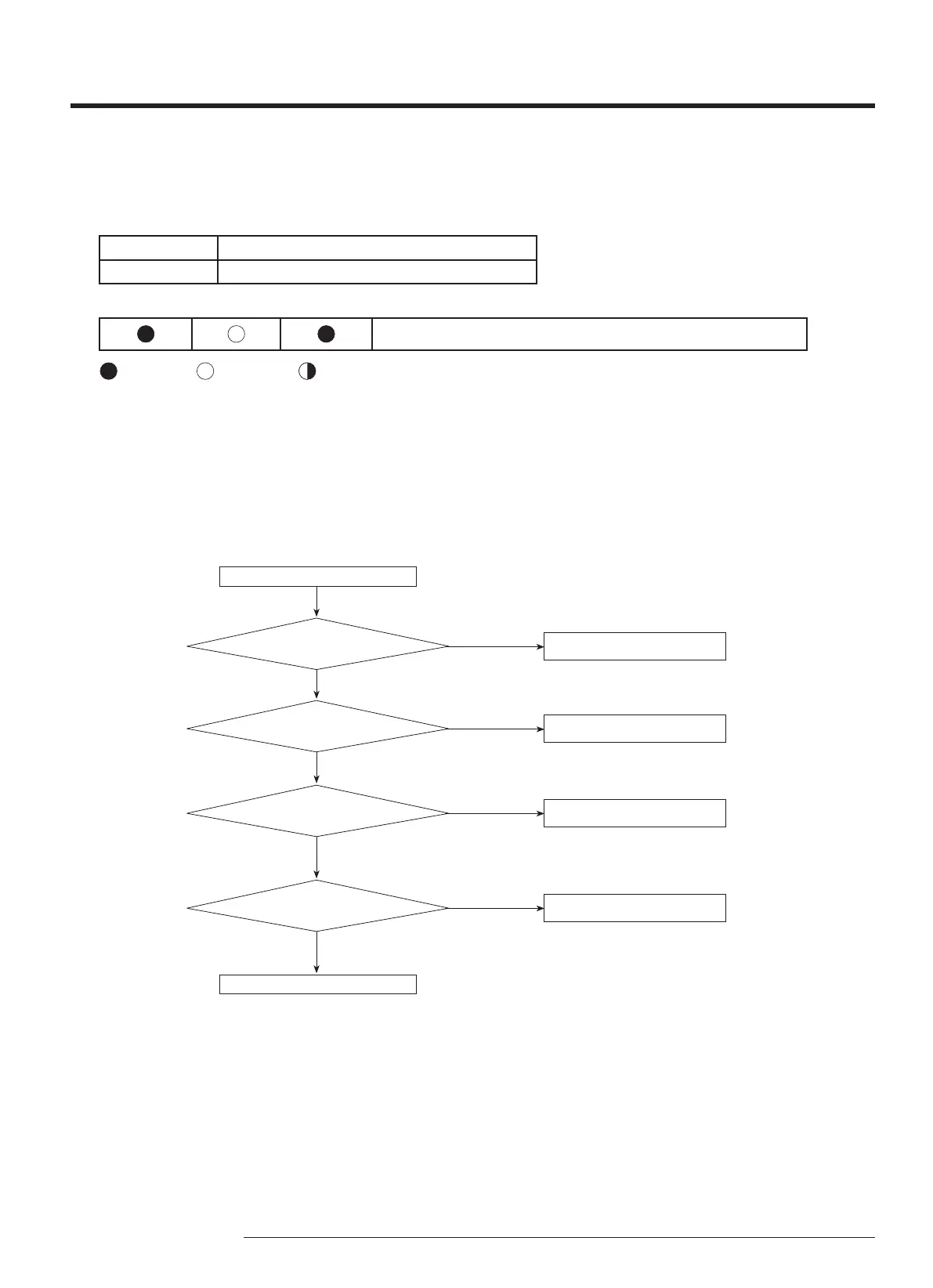

2. Troubleshooting procedure
Restartafter power o.
Isthe restart erroroccurredagain?
NO
YES
Is the connection of
compressorwireis normal?
(PBA and Compressor)
NO
YES
Isthe restart erroroccurredagain?
NO
YES
Is the compressorbody and
interphaseresistance insulated?
NO
YES
Terminatetheservice
Connectthecomp wirenormally
Terminatetheservice
Exchange the Outdoor PBA
Exchange the compressor
