No. Parts Procedure Remark

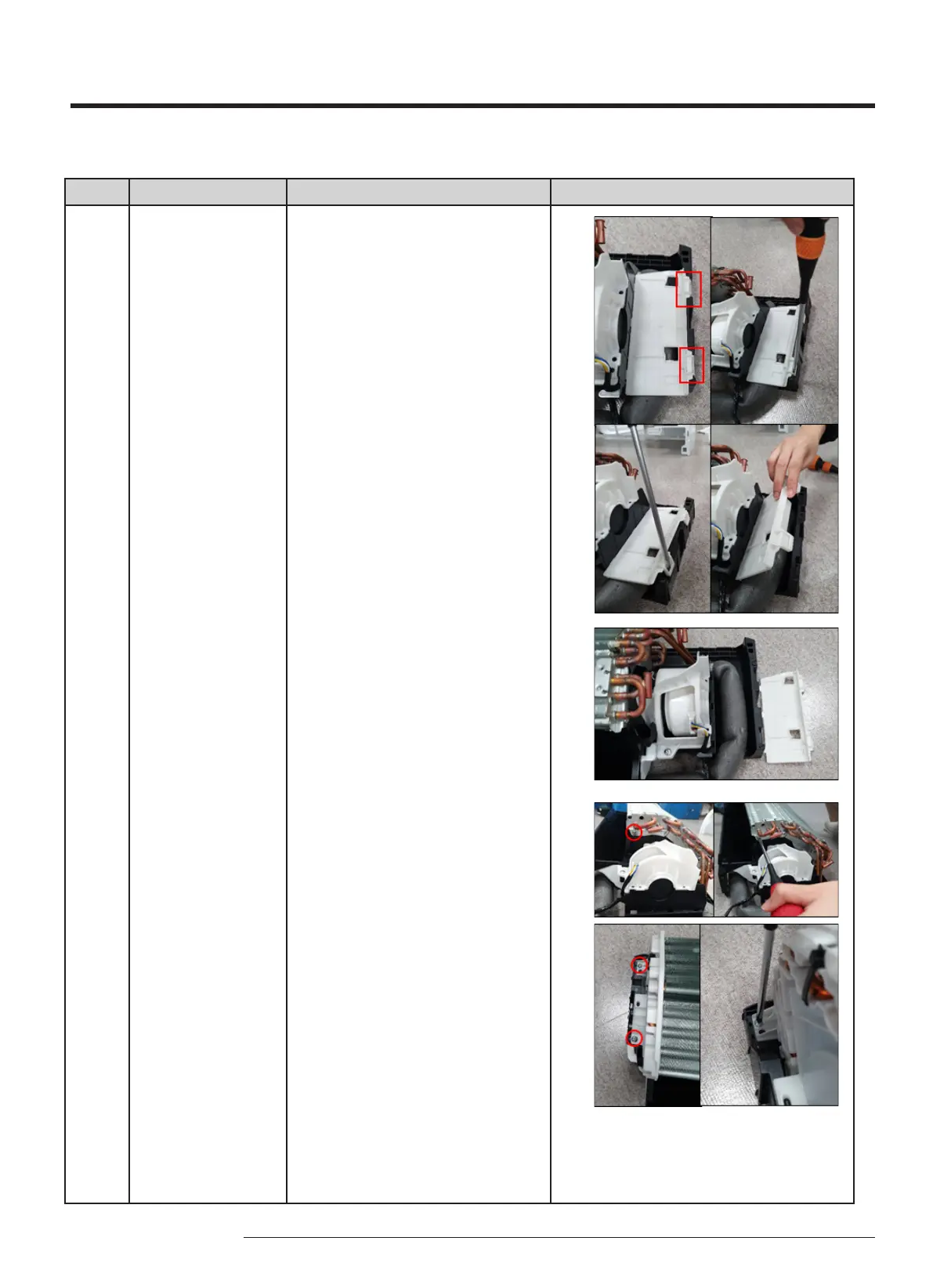

5 EVAPORATOR 20) The HOLDER PIPE is xed to body
by 2 hooks as shown in the gure.
21) To detach the HOLDER PIPE from the
main frame, loosen 2 hook structhres.
When separate hooks: Use the (-) Screw
Driver. Insert the (-) Screw Driver into
the gap of the hook and lean to the
Motor side as shown in gures. (Watch
out for the damate of hooks)
22)Remove the HOLDER PIPE.
23)Unfasten a screw of the Fan Motor
side. (Use (+) Screw Driver.)
24)Unfasten 2 screws of the opposite
side of the Fan Motor. (Use (+) Screw
Driver.)
