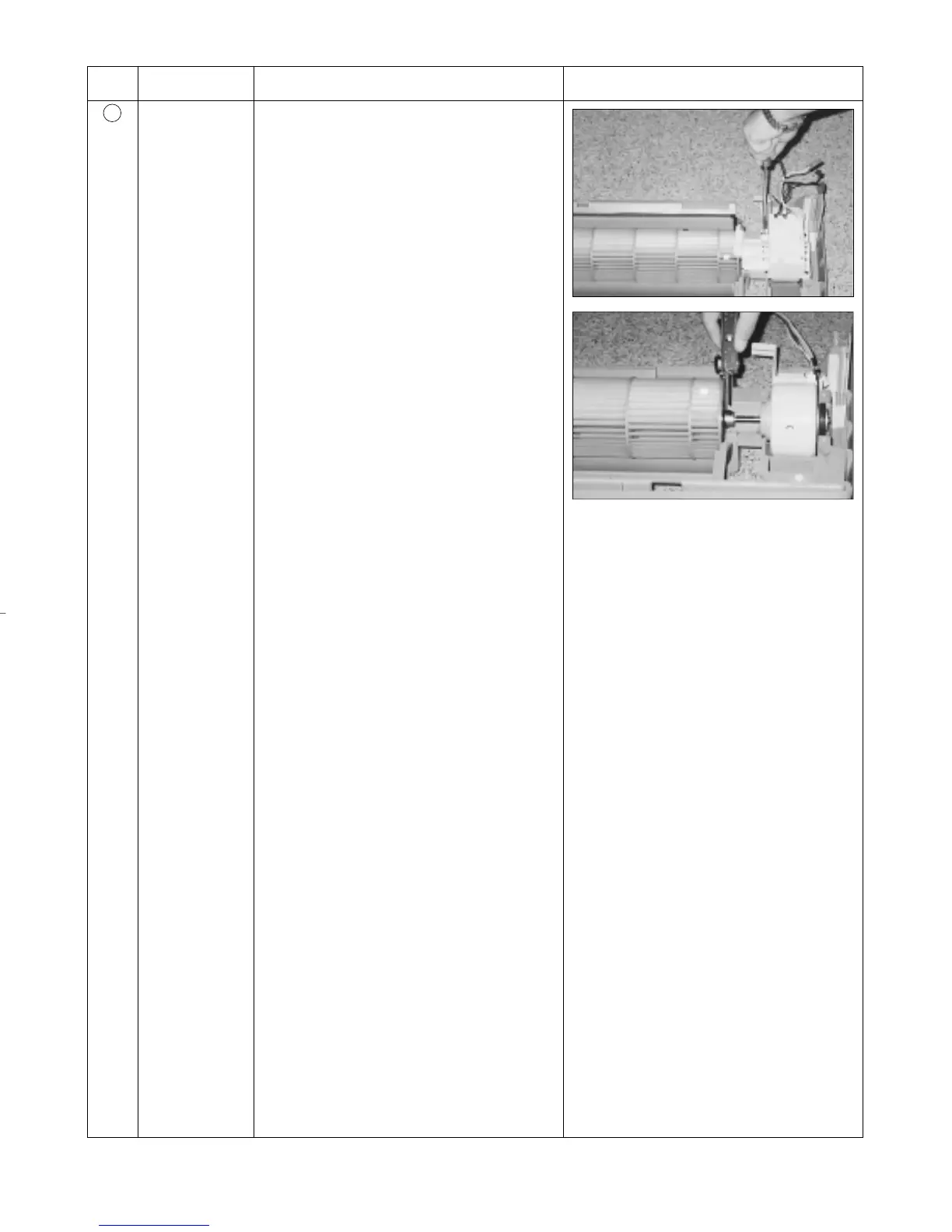

No Parts Procedure Remark
Fan Motor and
Cross Fan
1) Do “1” “2” ”3” “4”, above.
2) Loosen the fixing three screws and separate the
motor holder.
3) Loosen the fixing screw of fan motor.
(By use of M3 wrench)
4) Separate the fan motor from the fan.
5) Separate the fan from the left holder bearing.
