Samsung AS24A2RC - Schematic Diagram; Indoor Unit Schematic

40

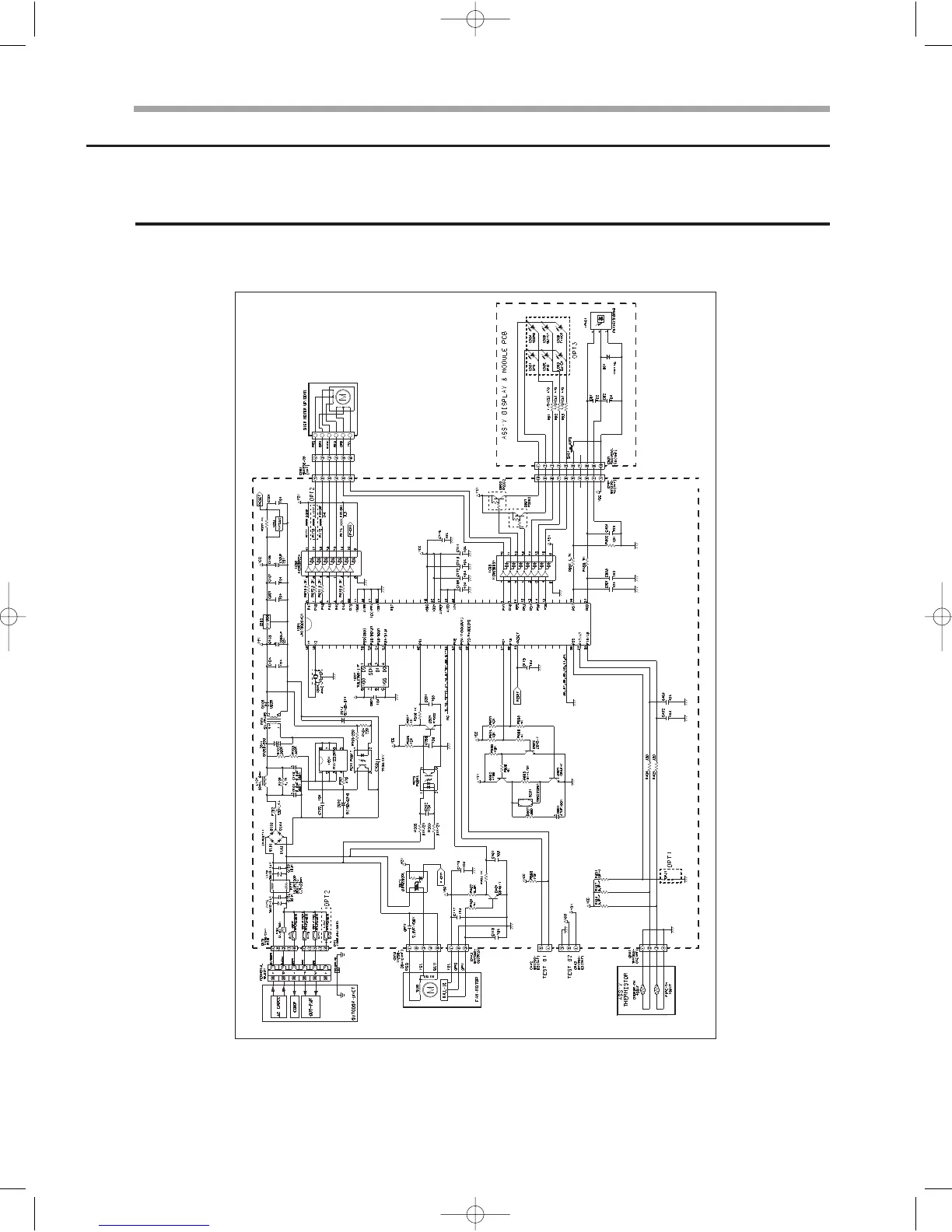

Schematic diagram
Ι Χ
This document can not be used without Samsung’s authorization.
■ AS18A9(0)RCF / AS18A9(0)RCFD /AS24A1(2)RC /AS24A1(2)RCD
1 Indoor unit
