Samsung BD-P1500 Service Manual

3. Disassembly and Reassembly
3-1 Cabinet and PCB
Samsung Electronics 3-1
3-1-1 Top Cabinet Removal
1) Remove 5 Screws q, w.
2) Lift up the Top Cabinet e in direction of arrow.

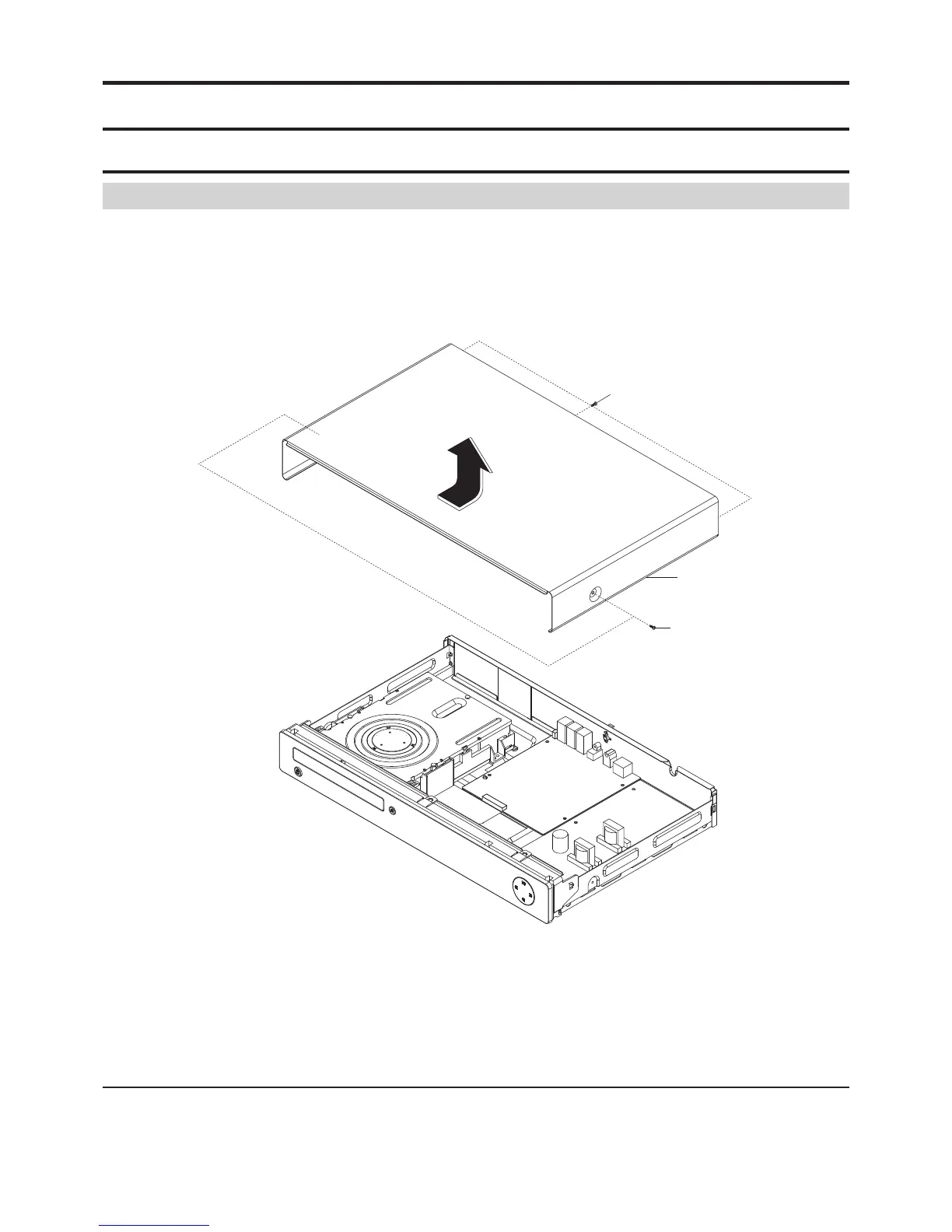

Fig. 3-1 Top Cabinet Removal
q 3 SCREWS
(3X10 B)
e TOP CABINET
CAUTION : Connector Must be remove with care
w 2 SCREWS
(3X10 B)

Samsung BD-P1500 Specifications

General

Depth	271 mm
Width	430 mm
Height	59 mm
Weight	2900 g
Full HD	Yes
HDMI version	1.3
Package depth	350 mm
Package width	531 mm
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD
Package height	147 mm
Package weight	4800 g
Cables included	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Disc types supported	BD-ROM, CD, DVD-R, DVD-ROM, DVD-RW
Supported video modes	1080i, 1080p, 480p, 576i, 576p, 720p
Card reader integrated	No
USB 2.0 ports quantity	1
Video formats supported	H.264, MPEG2, VC-1
Power consumption (standby)	0.9 W
Power consumption (typical)	28 W
Consumer Electronics Control (CEC)	-
Audio output channels	5.1 channels
Ethernet LAN (RJ-45) ports	0
