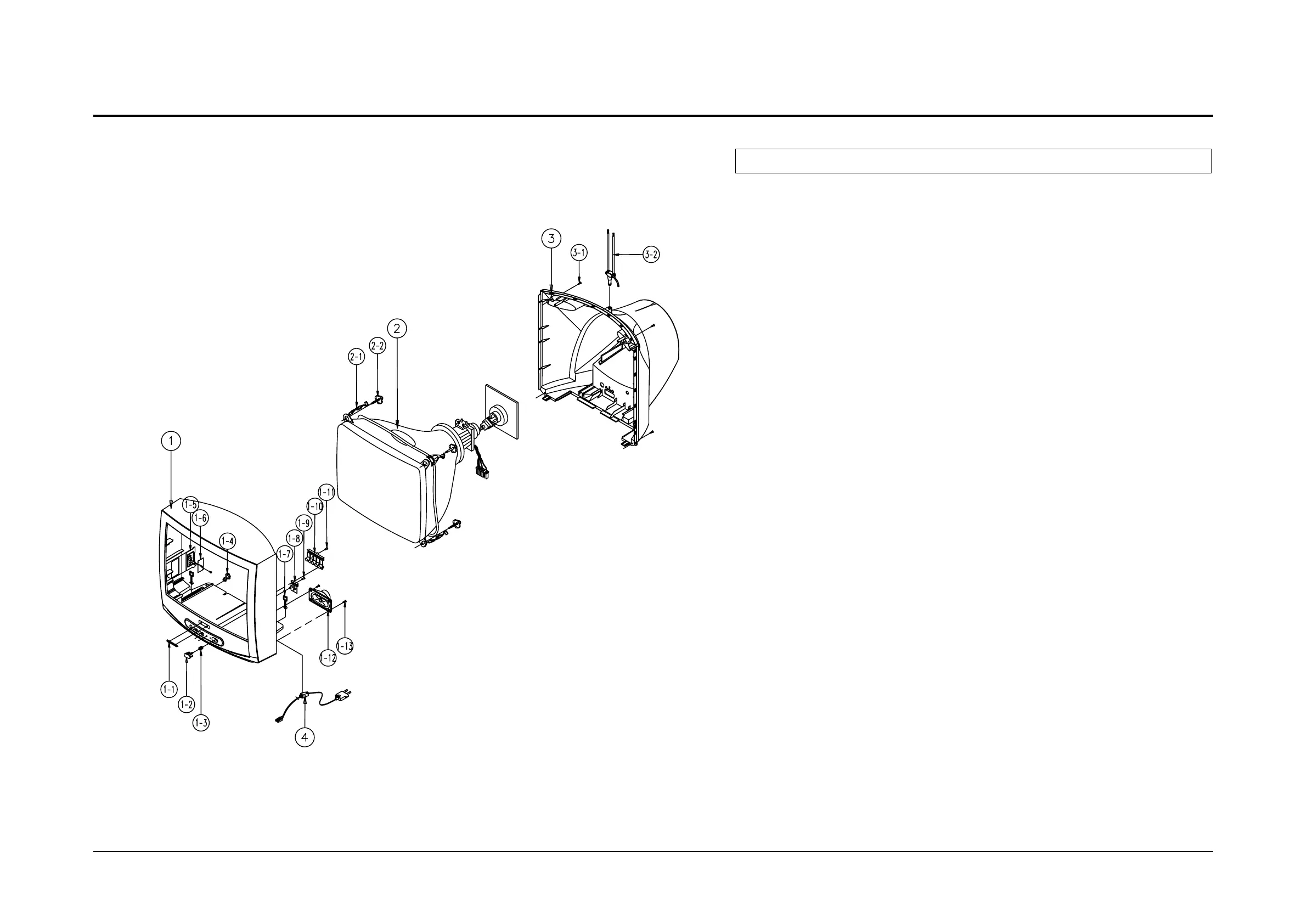

Exploded View & Parts List
6-4 Samsung Electronics
No Code No Description;Specification Q’ty Remark
6-4 CS21F5X/BWT
1 AA91-00675A ASSY CABINET FRONT;,21F5,SV704P CIS KS1A 1
AA64-01703B CABINET FRONT;21F5 KS1A,SV704P ML RUS,HI 1
1-1 AA64-70010B BADGE-BRAND;AL,SS R2000 25,SILVER,L50,-, 1
1-2 AA64-01705B KNOB POWER;21F5,ABS,G3676,NO-SILK,HB 1
1-3 AA61-60003J SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,- 1
1-4 AA61-40113A STOPPER-PCB;501H,HIPS,-,-,HB,NTR,- 1
1-5 AA95-01118A ASSY-A/V SIDE;,KS1A,PAL,MONO 1
1-6 AA41-00412A PCB-A/V SIDE;CS21F5,FR-1,1L,A,1.6T,245x2 1
1-7 AA65-00011C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M 1
1-8 AA64-01706B WINDOW-RMC,LED;21F5,ACRYL,CLEAR 1
1-9 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 WRL+CF
1-10 AA64-01707B KNOB CONTROL;21F5,ABS,G3676,HB 1
1-11 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 KC+CF
1-12 AA96-10140B ASSY-SPEAKER;-,16OHM,3W,3001-001039,AA39 2
1-13 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 4 SPK+CF
2 AA03-10024T CRT-COLOR;-,A51KQJ63X(H),+380mG,21,90de 1
2-1 AA65-30107A CLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INC 4
2-2 AA60-10050R SCREW-ASSY;-,SWRCH18A,M5,L31.5,HH,+,WC,- 4 CRT+CF
3 AA64-01704B CABINET BACK;21F5,HIPS,V2,BLK 1
3-1 AA60-10050T SCREW-TAPPING;-,SWRCH18A,M4,L20,RH,+,2S, 4 CB+CF
3-2 AA42-00003A ANT ROD;-,3S,720mm,ABS,UL/CSA,- 1
4 AA96-20109B ASSY-POWER,CORD;-,CP2/NO(4.0),H/C250,KKP 1
To Next Page
